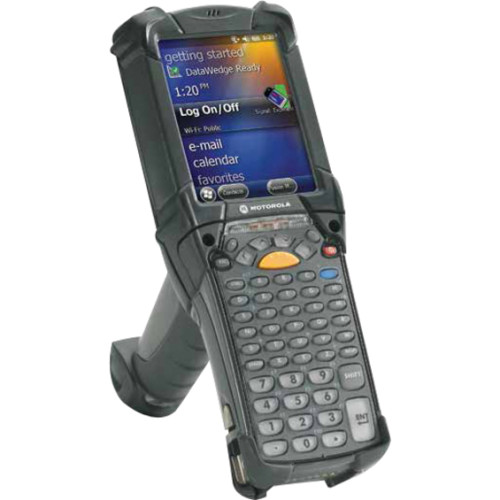

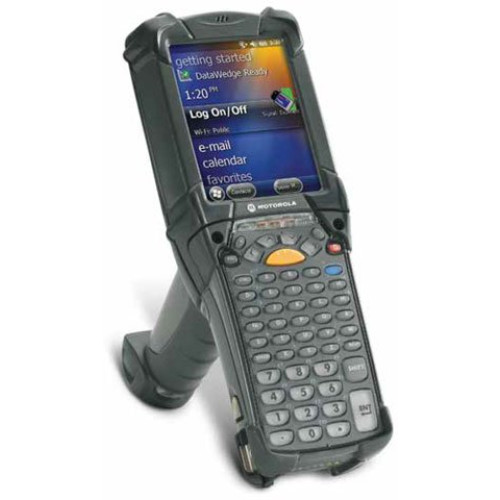

Motorola MC9200 Mobile Computer
Part #: MC92N0-GA0SXJRA5WR | SKU: MOT216717

The MC9200 is the next generation in the industry-leading rugged MC9000 Series, now upgraded to support your next generation mobile applications. The rugged mobile computer that evolves to meet changing business needs brings you the same signature rugged design, best-in-class bar code scanning and dependable operation, now with the power to run applications with highly-intuitive interfaces that will further simplify processes and increase worker productivity in your toughest environments.

Motorola MC9200 Mobile Computer

Part Details: Zebra MC9200 Mobile Computer - Texas Instruments OMAP 4 1 GHz - 512 MB RAM - 2 GB Flash - 3.7" 53 Keys - Wireless LAN - Bluetooth

Additional Information

Manufacturer Motorola
Model Name MC9200

Communications

WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR

Frequency range1
802.11a – 5.0 GHz, 802.11b - 2.4 GHz, 802.11g - 2.4 GHz, 2.4 or 5.0 Ghz for 802.11n, 5GHz

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps, 802.11n: up to 65 Mbps

Security
WPA2 Enterprise, 802.1x;
EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5);
PEAP (TLS, MSCHAPv2, EAP-GTC);
LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC), WPA2/AES, CCX v4, FIPS 140-2 and IPv6

Antenna
Internal

WLAN
802.11a/b/g/n

Performance characteristics

Operating system (OS)
Microsoft Windows Embedded Compact CE 7.0, Microsoft® Windows Embedded Handheld 6.5.3

Expansion
User accessible 32GB SDHC card slot

Data capture options
SE965: 1-D standard range scan engine; view ambient lighting information, located in User Environment

SE1524-ER: 1-D extended range scan engine reads up to 45 ft./13.72 m away; view ambient lighting information, located in User Environment

SE4500: Omnidirectional 1-D/2-D imaging engine

SE4600: Extended range omnidirectional 1-D/2-D imaging engine reads as far as 30 ft./9.14 m

SE4500-DL: 1-D/2-D DL imaging engine reads 1-D, 2-D and PDF codes on driver’s licenses

SE4500-HD: 1-D/2-D DPM imaging engine reads a wide variety of DPM marks on metal, plastic and glass surfaces

App development
PSDK and EMDK available through Zebra Support Portal

Memory
512MB/2GB standard; 1GB/2GB (premium models only)

Processor (CPU)
Dual core 1GHz OMAP 4 processor

Physical characteristics

Scanner exit window
Gorilla™ Glass

RFID Tag
Integrated UHF Gen2 tag (premium models only)

Keyboard
28-, 43- and 53-key; Terminal Emulation (5250, 3270, VT)

Dimensions (HxWxD)
9.1 in. L x 3.6 in. W x 7.6 in. H
23.1 cm L x 9.1 cm W x 19.3 cm H

IST
Sensor technology (premium models only)

Display type
3.7 in VGA resolution; color

Weight
27 oz./765 g (includes battery)

Power

Extended capacity battery
Removable, rechargeable 7.2 volt Lithium Ion 2200 mAh battery pack, 15.8 watt hours

Regulatory specifications

LED Safety
IEC/EN60825-1 and IEC/EN62471

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65 Supplement C; Canada: RSS-102; EU: EN62311, EN50371

Environmental
RoHS-compliant

EMI/RFI
USA: FCC Part 15; Canada: RSS-210, ICES 003 Class B; EU: EN 301 489-1, EN 301 489-17, EN55022 Class B, EN55024

WLAN and Bluetooth (PAN)
USA: FCC Part 15.247, 15.407; Canada: RSS-210 EU: EN 300 328, EN 301 893

Electrical safety
CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, Certified to UL60950-1

User environment

Environmental sealing
IP64 (electronic enclosure, display, keypad)

Drop specification
Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range; meets and exceeds MIL-STD 810G

Storage temperature
-40° F to 158° F/-40° C to 70° C

Operating temperature
-4° to 122° F/-20° to 50° C

Tumble specifications
2, 000 3.28 ft./1 m tumbles at room temperature per IEC Tumble Specification

Humidity
5% to 95% non condensing (Condensation Resistant Configurations Available)

Charging temperature
32° to 104° F/0° to 40° C

Extended Details
