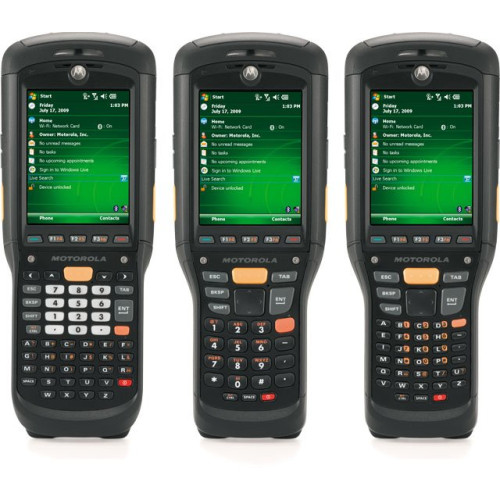

Photo of Motorola MC9596-KDAEAD00100
Watch Product Video
View larger image Motorola logo

Motorola MC9500-K Wireless Rugged

MC9590 HSDPA 2D Num/Tel Camera Windows Mobile 6.5

Hand Held Computer

Free Shipping

Ships in 24-48 hours


Motorola MC9500K Hand Held Computer

The Motorola MC9500K is purpose-built for the most demanding field applications. The superior rugged specifications dramatically reduce repair and downtime, delivering an exceptional return on investment and total cost of ownership. Designed to easily handle the inevitable drops and bumps out on the road, the MC9500K passes Motorola's stringent mechanical design tests for both stress and endurance. The MC9500K is the first mobile computer to provide true WAN technology independence. In addition to the ability to select either of the 3.5G wireless broadband networks. The MC9500K offers a portfolio of keypads designed to meet the needs of virtually any type of application - from heavy text entry to calculator-style numeric data. Keypads can be swapped in your backroom in minutes, eliminating the need to return the device to a service center. The MC9500K also offers a new housing, IP67 sealing, the industry's highest drop and tumble rating and more.

Full specifications (PDF)

Manufacturer part number: MC9596-KDAEAD00100

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Mobile Computer

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"
  • Weight (Approximate): 1.37 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: GSM
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4 certified
    • Support for IPv6
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes


  • Operating System: Windows Mobile 6.5


  • Keyboard Type: Numeric
