MC9596-KDAEAJ00100 - Motorola MC9500K Hand Held Computer

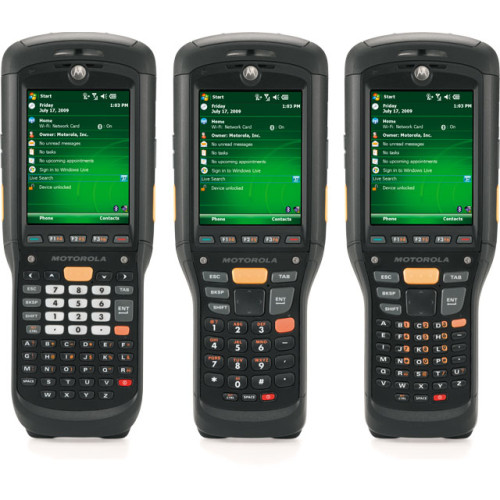

The Motorola MC9500K is purpose-built for the most demanding field applications. The superior rugged specifications dramatically reduce repair and downtime, delivering an exceptional return on investment and total cost of ownership. Designed to easily handle the inevitable drops and bumps out on the road, the MC9500K passes Motorola's stringent mechanical design tests for both stress and endurance. The MC9500K is the first mobile computer to provide true WAN technology independence. In addition to the ability to select either of the 3.5G wireless broadband networks. The MC9500K offers a portfolio of keypads designed to meet the needs of virtually any type of application - from heavy text entry to calculator-style numeric data. Keypads can be swapped in your backroom in minutes, eliminating the need to return the device to a service center. The MC9500K also offers a new housing, IP67 sealing, the industry's highest drop and tumble rating and more.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC9596-KDAEAJ00100 MC9500-K Wireless Rugged, MC9596 Brick Wan LAN Pan 2D GPS 3mp Camera VGA 256/1g Windows Mobile 6.5
Ships Free in 3-5 Days
$2,629.55
Information:   |  Specifications  |  Motorola's MC9500K page  |
Accessories:   |  Accessories/Options  |  Motorola MC9500K service contract  |

MC9596-KDAEAJ00100 Details

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Handheld Terminal

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4 certified
    • IPv6
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

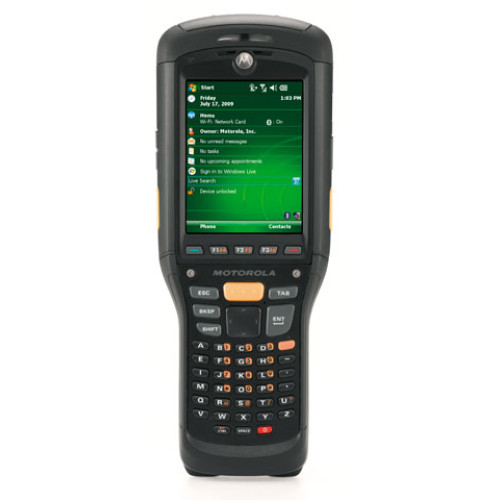

  • Keyboard Type: Alpha
Part # Description Availability Price Order
VCD9500-1000R Motorola MC95XX VEHICLE CHARGING CRADLE, ENABLES IN-VEHICLE CHARGING (BOLTS INTO DASHBOARD AND CONNECTS TO VEHICLE FUSE BOX VIA INCLUDED CABLE) Ships Free Today $283.01
Retail $425
Save 33%
MC959X-USB-STARTER Motorola MC959x Starter Kit. Includes Everything You Need to Run Your MC959x: Charging/Communications Cradle, Interface Cable, US Power supply and AC Line Cord. Ships Free Today $143.61
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00
SSE-MC95XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential Includes Comprehensive coverage. Does not include coverage for cradles.
Ships Free in 3-5 Days
$244.47
Retail $317.90
Save 23%

The Motorola MC9596-KDAEAJ00100 is also known as SYM-MC9596KDAEAJ0010 or MC9596KDAEAJ00100 .
