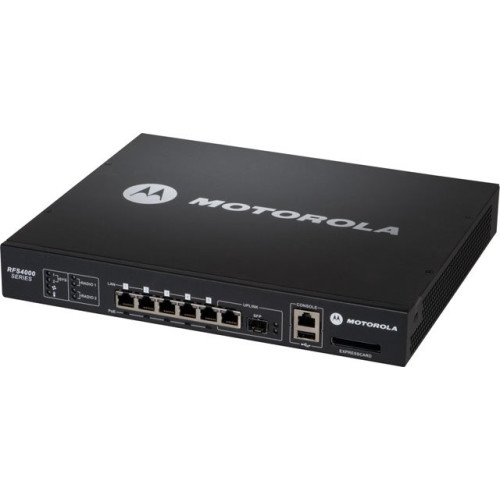

RFS-4011-11110-US - Motorola RFS 4000 Wireless Controller

The Motorola RFS 4000 offers multiple features that ensure reliability and survivability of branch networking services in virtually any situation. The RFS 4000 protects against access point and mesh node failure with SMART RF, a feature that keeps users on-Net with automatic optimization and healing. Motorola's patent pending clustering mechanism protects against wireless switch failure and offers Active/Active or Active/Standby controller redundancy options. In the event of a WAN outage, a redundant 3G ExpressCard guarantees Internet services by providing WAN backhaul options. With the Integrated Dual Radio Dual band form factor, the RFS 4000 is the only Services Controller in the Industry that offers concurrent access in the 2.4 and 5 GHz bands, with mesh capabilities in a multi-cell environment.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
RFS-4011-11110-US RFS 4000, (With Dual .11n Radios and Power supply, US Only) Ships Free Today $1,346.73
Information:   |  Specifications  |  Motorola's RFS 4000 page  |
Accessories:   |  Accessories/Options  |  Motorola RFS 4000 service contract  |

RFS-4011-11110-US Details

General Information

  • Product Type: Wireless LAN Controller
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RFS 4000
  • Product Name: RFS 4000 Wireless LAN Controller

Technical Information

  • ISM Band: No
  • UNII Band: No
  • Memory Card Supported: ExpressCard
  • Features: Quality of Service (QoS)

Physical Characteristics

  • Height: 1.8"
  • Width: 12"
  • Depth: 10"
  • Form Factor: Desktop
  • Weight (Approximate): 4.74 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 6
  • PoE (RJ-45) Port: Yes
  • USB: Yes
  • VGA: No
  • Serial Port: Yes
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: No

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • UL
    • cUL 60950-1
    • IEC
    • EN60950-1
    • IEEE 802.1Q
    • IEEE 802.11k

Management & Protocols

  • Management:
    • CLI
    • DHCP
    • Telnet
    • VLAN
    • Syslog
    • SNMP v1/v2/v3
    • MIB
    • Web Based Management

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

I/O Expansions

  • Expansion Slots: 1 x ExpressCard
Part # Description Availability Price Order
RFS-4010-MTKT1U-WR Motorola I Ru Mounting Kit Accessory Ships Free Today $47.64
Retail $65
Save 26%
RFS-4000-2AP-WR Motorola Kit (Small Site WLAN Starter Kit - Not For Us)
Ships Free in 3-5 Days
$2,045.05
Retail $2649
Save 22%
SSS-RFS4010-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$323.40

The Motorola RFS-4011-11110-US is also known as SYM-RFS401111110US or RFS401111110US .
