Motorola RFS 6000

RFS-6000 with Less 8pt LAN Switch

Wireless Controller
$2,037.95

Free Shipping

Ships Today

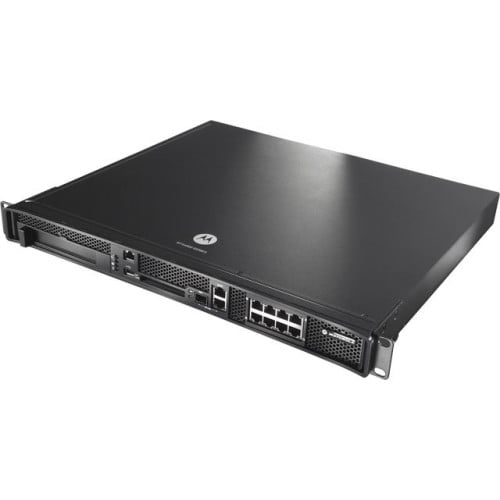

Motorola RFS 6000 Wireless Controller

Designed to support large scale high bandwidth enterprise deployments, the Motorola RFS 6000 offers a multicore multithreaded CPU-based architecture that is capable of supporting 2,000 to 20,000 mobile devices and up to 48 dual radio 802.11a/b/g access ports. In addition, the 802.11n ready device offers the failover capabilities and cluster management required to ensure high availability. A user accessible ExpressCard Slot allows the addition of a broadband card (3G/4G) for a redundant wireless WAN backhaul connection, increasing resilience for remote branch offices. The ability to cluster up to 12 RFS 6000 RF Switches provides the high level of scalability required for large enterprise deployments.

Full specifications (PDF)

Manufacturer part number: RFS-6010-10010-WR

General Information

  • Product Type: Wireless LAN Controller
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RFS6000
  • Product Name: RFS6000 Wireless LAN Switch

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.8"
  • Depth: 15.4"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 14 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 8
  • PoE (RJ-45) Port: Yes
  • USB: Yes
  • Management Port: Yes

Management & Protocols

  • Management:
    • QoS
    • CLI
    • DHCP
    • HTTP/HTTPS
    • Syslog
    • IEEE 802.1p VLAN
    • SNMP v1/v2/v3

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Real Time Locationing System (RTLS)
    • Supports 256 AP-5131 802.11 a/b/g or AP-7131 802.11 a/b/g/n Adaptive Access Points

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply
