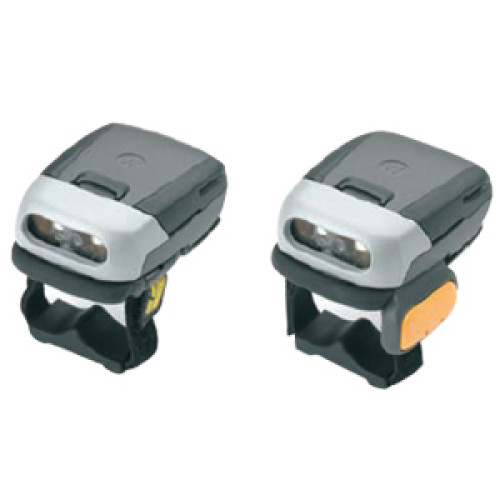

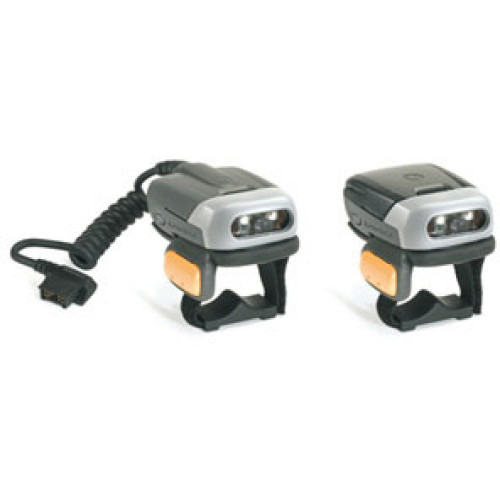

Motorola RS507 Ring Barcode Scanner
Part #: RS507-IM200000TWR | SKU: MOT103098

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning barcodes to meet government regulations for tracking and tracing of product, the Motorola RS507 Ring Imager Hands-Free Imager delivers the superior blend of technology, form and function your workers need to achieve a new level of scanning efficiency in your operations. The advanced design offers more features and functionality than any other ring scanner available today. Truly superior ergonomics, including Bluetooth cordless freedom, provide unparalleled user comfort. The unmatched rugged design ensures reliable operation in the most demanding environments. Best-in-class scanning, including support for 1D and 2D barcodes, ensures first time every time fast and accurate capture of virtually any barcode. The RS507 Ring Imager pairs easily with the WT4000 Wearable Terminal.

Motorola RS507 Ring Barcode Scanner

Part Details: RS507 Ring Imager, Hands Free Ring Scanner, 2D Imager, Bluetooth, Trigger. Battery and corded adapter to the WT4090 wearable terminal not included. See accessories.

Additional Information

Color Beige
Connection Bluetooth
Connectivity Cordless
Embedded Scale Embedded Scale
Form Factor Wearable
Included Features Embedded Scale
Manufacturer Motorola
Model Name RS507 Ring
Ruggedness Rugged
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Scanning Distance: 24"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • Codabar
    • Code 39
    • Code 128
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • UPC-A and UPC-E
    • Additionally Supported by 1D:
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • MSI
    • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
    • Straight 2 of 5 IATA (Two-Bar Start/Stop)
    • Straight 2 of 5 Industrial (Three-Bar Start/Stop)
    • Trioptic
    • UPC-E1
    • 2D:
    • 4-CB (4-State Customer Barcode)
    • Aztec
    • Micro PDF417
    • PDF417
    • Maxi Code
    • Additionally Suporrted by 2D:
    • Australian Post
    • British Post (4 State Code And Infomail)
    • Data Matrix
    • Japanese Post
    • KIX (Netherlands) Post
    • Planet Code
    • Postnet
    • QR Code
    • EAN/UCC Composite
    • TCIF Linked Code 39 (TLC39)
    • 1D:
    • Codabar
    • Code 39
    • Code 128
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • UPC-A and UPC-E
    • Additionally Supported by 1D:
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • MSI
    • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
    • Straight 2 of 5 IATA (Two-Bar Start/Stop)
    • Straight 2 of 5 Industrial (Three-Bar Start/Stop)
    • Trioptic
    • UPC-E1
    • 2D:
    • 4-CB (4-State Customer Barcode)
    • Aztec
    • Micro PDF417
    • PDF417
    • Maxi Code
    • Additionally Suporrted by 2D:
    • Australian Post
    • British Post (4 State Code And Infomail)
    • Data Matrix
    • Japanese Post
    • KIX (Netherlands) Post
    • Planet Code
    • Postnet
    • QR Code
    • EAN/UCC Composite
    • TCIF Linked Code 39 (TLC39)

General Information

  • Product Type: Wearable Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RS507
  • Product Name: RS507 Wearable Barcode Reader

Physical Characteristics

  • Height: 1.2"
  • Width: 2.1"
  • Depth: 2.9"
  • Weight (Approximate): 4.80 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 12 Month
