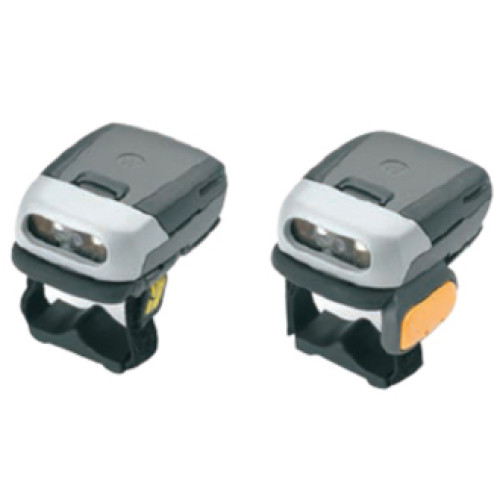

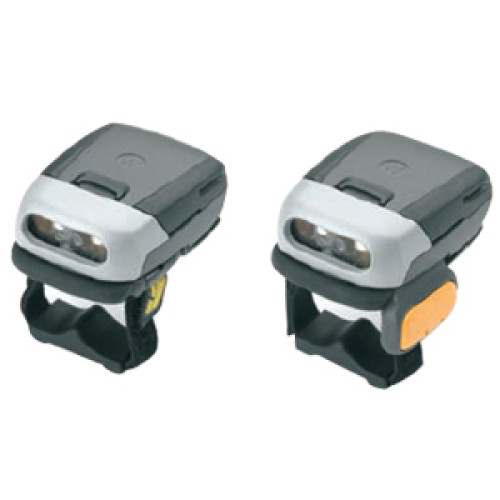

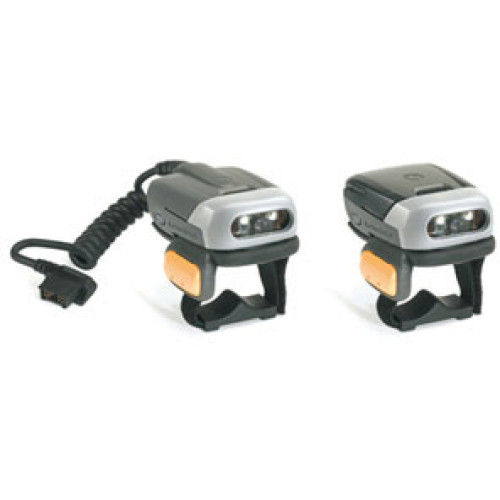

RS507-IM20000ENWR - Motorola RS 507 Ring Imager Bar code Scanner

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning bar codes to meet government regulations for tracking and tracing of product, the Motorola RS 507 Ring Imager Hands-Free Imager delivers the superior blend of technology, form and function your workers need to achieve a new level of scanning efficiency in your operations. The advanced design offers more features and functionality than any other ring scanner available today. Truly superior ergonomics, including Bluetooth cordless freedom, provide unparalleled user comfort. The unmatched rugged design ensures reliable operation in the most demanding environments. Best-in-class scanning, including support for 1D and 2D bar codes, ensures first time every time fast and accurate capture of virtually any barcode. The RS 507 Ring Imager pairs easily with the WT4000 Wearable Terminal.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
RS507-IM20000ENWR RS 507 Ring Imager, RS507 Hands-Free, 2D Imager Scanner, Bluetooth, No Trigger, Cordless, Extended Battery. Ships Free Today $831.60
Information:   |  Specifications  |  Motorola's RS 507 Ring Imager page  |
Accessories:   |  Accessories/Options  |  Motorola RS 507 Ring Imager service contract  |

RS507-IM20000ENWR Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Scanning Distance: 24"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • Codabar
    • Code 39
    • Code 128
    • EAN 13
    • EAN 8
    • Interleaved 2 of 5
    • UPC-A and UPC-E
    • Additionally supported by 1D:
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • MSI
    • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
    • Straight 2 of 5 IATA end-of-life (two-bar start/stop)
    • Straight 2 of 5 Industrial (three-bar start/stop)
    • Trioptic
    • UPC-E1
    • 2D:
    • 4-CB (4-State Customer Barcode)
    • Aztec
    • MicroPDF417
    • PDF417
    • MaxiCode
    • Additionally supported by 2D:
    • Australian Post
    • British Post (4 state code and "infomail")
    • Data Matrix
    • Japanese Post
    • KIX (Netherlands) Post
    • Planet Code
    • Postnet
    • QR Code
    • EAN/UCC Composite
    • TCIF Linked Code 39 (TLC39)
    • 1D:
    • Codabar
    • Code 39
    • Code 128
    • EAN 13
    • EAN 8
    • Interleaved 2 of 5
    • UPC-A and UPC-E
    • Additionally supported by 1D:
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • MSI
    • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
    • Straight 2 of 5 IATA end-of-life (two-bar start/stop)
    • Straight 2 of 5 Industrial (three-bar start/stop)
    • Trioptic
    • UPC-E1
    • 2D:
    • 4-CB (4-State Customer Barcode)
    • Aztec
    • MicroPDF417
    • PDF417
    • MaxiCode
    • Additionally supported by 2D:
    • Australian Post
    • British Post (4 state code and "infomail")
    • Data Matrix
    • Japanese Post
    • KIX (Netherlands) Post
    • Planet Code
    • Postnet
    • QR Code
    • EAN/UCC Composite
    • TCIF Linked Code 39 (TLC39)

General Information

  • Product Type: Wearable Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RS507
  • Product Name: RS507 Wearable Barcode Reader

Physical Characteristics

  • Height: 1.2"
  • Width: 2.1"
  • Depth: 2.9"
  • Weight (Approximate): 4.80 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Pitch Angle: ± 60° from normal
    • Skew Tolerance: ± 60° from normal

Network & Communication

  • Bluetooth: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Part # Description Availability Price Order
KTBTRYRS50EAB02-01 Motorola RS507 Extended Battery 1940MAH, 3.7V Ships Free Today $64.72
Retail $95
Save 31%
KT-CLMPN-RS507-01R Motorola RS507 Triggerless Strap Hold Does Not Include Strap/Buckle Ships Free Today $28.95
Retail $33
Save 12%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSE-RS5XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage
Ships Free in 3-5 Days
$205.57
Retail $267.30
Save 23%

The Motorola RS507-IM20000ENWR is also known as SYM-RS507IM20000ENWR or RS507IM20000ENWR .
