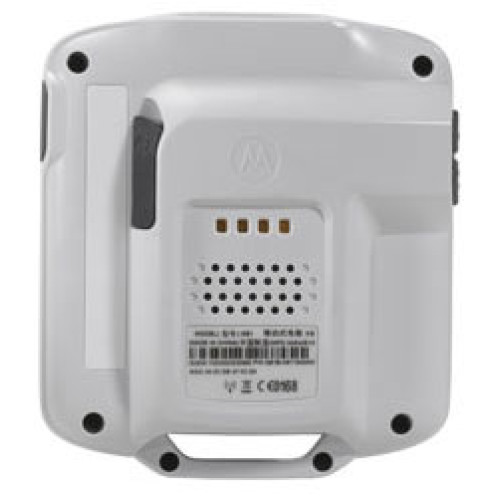

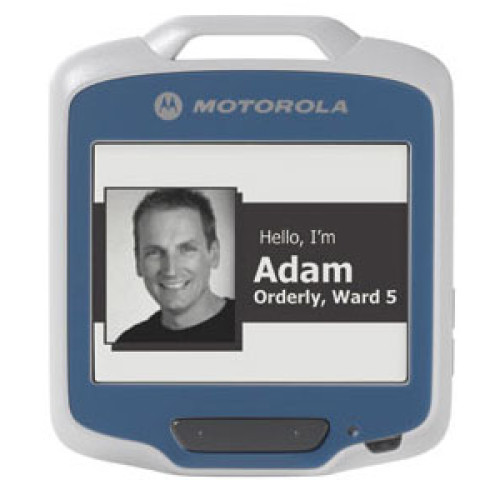

SB1B-HE11A0WW - Motorola SB1-HC Bar code Scanner

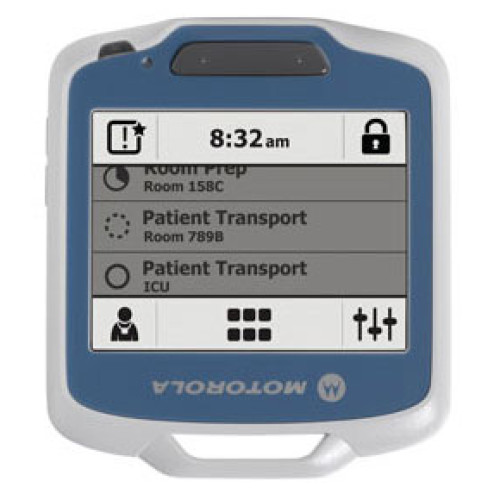

This brand new category of mobile device is the smallest form factor yet to provide nurses and clinical staff with a core set of vital features that can improve patient safety and staff productivity. With a task management application, you can distribute personal dynamic task lists that keep staff focused on the right assignments. Bar code scanning helps streamline task execution and improve task accuracy, from equipment and building maintenance to inventory management and patient transport. And with push-to-talk, workers can easily get an instant answer to an urgent question. The result? A higher standard of care. More efficient staff. And a better patient experience.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
SB1B-HE11A0WW SB1-HC, Smart Badge, Health care Version, E-Ink Display, Omnidirectional 1D/2D Scanner, Wi-Fi (802.11 b/g/n), Single Unit.
Ships Free in 3-5 Days
$403.20
Information:   |  Specifications  |  Motorola's SB1-HC page  |
Accessories:   |  Accessories/Options  |  Motorola SB1-HC service contract  |

SB1B-HE11A0WW Details

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: SB1-HC
  • Product Name: SB1-HC Handheld Terminal

Technical Information

  • Connectivity Technology: Wireless
  • Drop Specification: 48.03" To Tile Over Concrete
  • Barcode Symbology Supported:
    • 1D
    • 2D

Physical Characteristics

  • Width: 3.2"
  • Depth: 0.9"
  • Length: 3.6"
  • Weight (Approximate): 4.40 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • MIL STD 810G
    • IP54
    • FIPS 140-2
    • RF exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 62311
    • Electrical safety:
    • IEC/UL/CSA/EN 60950-1
    • Laser safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC/EN 62471
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • EN 55022
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • EN 60601-1-2

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3"
  • Display Color: Grayscale
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Freescale
  • Processor Speed: 532 MHz
  • Processor Type: ARM11

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Resistive

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g/n

Warranty

  • Limited Warranty: 1 Year

Battery Information

  • Battery Capacity: 910 mAh

The Motorola SB1B-HE11A0WW is also known as MOT-SB1BHE11A0WW or SB1BHE11A0WW .
