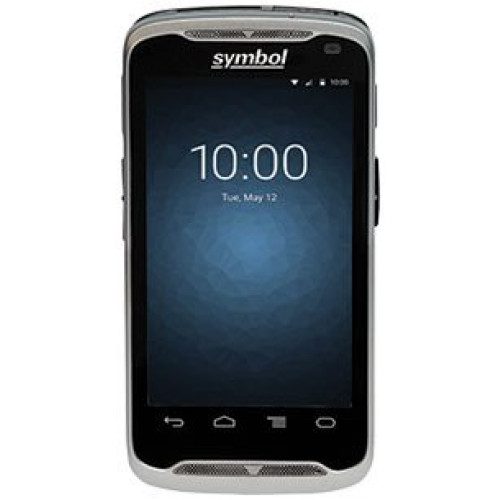

Motorola TC55 Mobile Computer
Part #: TC55AH-JC11ES | SKU: MOT235520

The TC55 is a pocket-sized all touch computer that has it all. Smartphone ergonomics and good looks. Business durability and all the business functionality your workers need to work smarter.

Motorola TC55 Mobile Computer

Part Details: Symbol TC55, Wi-Fi (802.11a/b/g/n), 1D Linear Imager Scanner, Android JellyBean 4.3, 4G HSDPA+, 8MP Camera, NFC, 2960 mAh Battery. Includes USB cable. Charging Cradles and Power Supply Sold Separately. Single charging cup (Part# CBL-TC55-CHG1-01) needs power supply (Part# PWRS-124306-01R). 5- slot- CRDUNIV-55-5000R REQUIRES POWER (Part# PWRS-14000-148C) AND AC LINE CORD (Part# 23844-00-00R).

Additional Information

Manufacturer Motorola
Model Name TC55
Network Connectivity Wi-Fi 2: 802.11a, Wi-Fi 3: 802.11g, Wi-Fi 4: 802.11n, Bluetooth, HSPA+
Operating System Android 4.3
RAM Memory 1 GB
Scanner Capability 1D
Scanner Type Imager
Style Phone-size

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Drop Specification:
    • 48" To Plywood
    • 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: TC55
  • Product Name: TC55 Touch Computer

Physical Characteristics

  • Width: 2.7"
  • Depth: 0.6"
  • Length: 5.4"
  • Weight (Approximate): 7.80 oz

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • TC55 Touch Computer
    • Battery
    • TC55 Touch Computer
    • Battery
  • Certifications & Standards:
    • MIL-STD810G
    • IP67
    • IEC
    • LED Safety:
    • EN 62471
    • WLAN/Bluetooth/NFC:
    • FCC Part 15.247
    • FCC Part 15.407
    • FCC Part 15.225
    • RSS-210
    • EN 300 328
    • EN 301 893
    • EN 302 291
    • AS/NZS 4268
    • RF exposure:
    • FCC Part 2
    • FCC OET Bulletin 65c
    • RSS 102 Issue 4
    • EN 50360
    • EN 50566
    • EN 62479
    • EN 62311
    • Radiocommunications Standard 2003
    • Electrical safety:
    • UL 60950-1
    • EN 60950-1
    • IEC 60950-1
    • WWAN:
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • RSS-139
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1, 3 & 4
    • Environmental:
    • EN 50581
    • EMI/RFI:
    • FCC Part 15
    • FCC Part Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR 22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Network Band: Tri Band
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Cellular Data Connectivity Technology:
    • HSPA+
    • LTE
  • Near Field Communication: Yes
  • Wireless Security:
    • WEP (40 or 104 bit)
    • WPA/WPA2 Personal
    • WPA/WPA2 Enterprise
    • EAP-TTLS PAP
    • EAP-TTLS MSCHAP
    • EAP-TTLS MSCHAPv2
    • EAP-TLS
    • PEAPv0-MSCHAPv2
    • PEAPv1-EAP-GTC
    • TKIP
    • AES

Memory

  • Flash Memory: 8 GB
  • Standard Memory: 1 GB
  • Maximum Memory Card Size Supported: 32 GB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • microSD High Capacity (microSDHC)

Display & Graphics

  • Display Screen Type: LCD
  • Backlight Technology: LED
  • Screen Mode: WVGA
  • Screen Size: 4.3"

Battery Information

  • Battery Capacity: 2940 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Capacitive

Camera

  • Camera: Yes
  • Effective Camera Resolution: 8 Megapixel

Processor & Chipset

  • Processor Speed: 1.50 GHz

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Android 4.1.2 Jelly Bean
Extended Details
