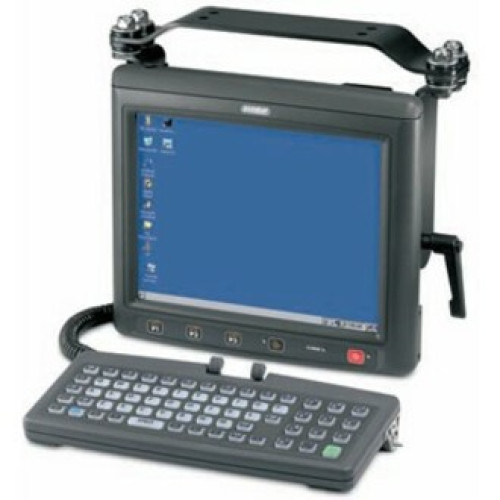

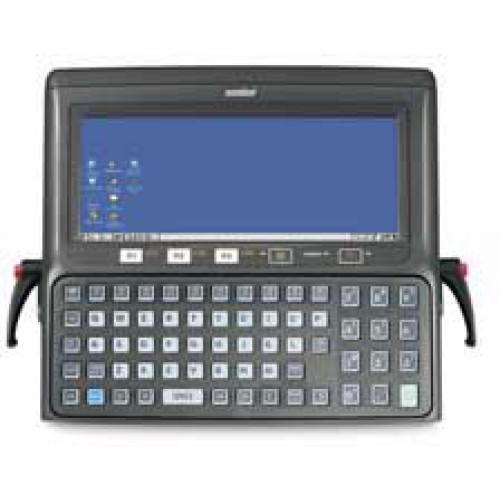

Motorola VC5090 Data Terminal
Part #: VC5090-MA0TMQGH7WR | SKU: MOT85854

The VC5090 Vehicle/Fixed-Mount Mobile Computer from Symbol Technologies combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments. Industrial and military grade specifications for vibration, shock, temperature and sealing ensure reliable year-in and year-out performance - whether your workers are on a forklift, in the freezer, moving through the warehouse or at a fixed station. The VC5090 provides support for terminal emulation, browser-based and custom Windows CE applications that streamline warehouse operations, improve decision making, increase productivity and profitability.

Motorola VC5090 Data Terminal

Part Details: Zebra VC5090 Vehicle Mount Terminal - Intel XScale 624 MHz - 128 MB RAM - 192 MB Flash Memory - 10.5" Color - SVGA - Bluetooth - Internal Antenna - IEEE 802.11a/b/g - Windows CE 5.0 Professional

Additional Information

Manufacturer Motorola
Model Name VC5090

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC5090
  • Product Name: VC5090 Vehicle Mount Terminal

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Width: 12.2"
  • Depth: 5"
  • Length: 11.3"
  • Weight (Approximate): 16.31 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Environmental Meets IP66
    • EMC:
    • FCC Part 15B
    • ICES-003 Class B
    • EN 55022
    • EN 301 489-1 & 17
    • RF:
    • FCC Part 15.247
    • 15.205
    • 15.209
    • 15.203
    • 15.407
    • 15.207
    • EN 300 328
    • EN 301 893
    • RSS-210
    • ARIB STD-66 & 33
    • T70 & T71
    • Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1

Display & Graphics

  • Touchscreen: Yes
  • Display Color: Color
  • Screen Size: 10.5"
  • Graphics Modes: SVGA

Network & Communication

  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Technology: Bluetooth

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • 20 kV DC Air Discharge
    • 8 kV DC Contact Discharge

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 192 MB
  • Standard Memory: 128 MB

Keyboard/Keypad

  • Number of Keys: 65
  • Keyboard Type: QWERTY

Software

  • Operating System: Windows CE 5.0 Professional
Extended Details

Recommended Accessories for Model: Motorola VC5090 Data Terminal

  • Zebra VC5090 Accessory
    Part #: 25-71918-01R | SKU: ZEB26254

    Cable, Assembly, 9 ft, Extended, Coiled. Connects LS34XX to the VC5090. Non-standard USB, call for more information.
    Price: $205.79
    In Stock
  • Zebra VC5090 Accessory
    Part #: 90500125-R | SKU: ZEB29323

    VC5090; 5-Pack, Keyboard cover, Clear
    MSRP: $157.69 Price: $116.51
  • Symbol VC5090 Accessory
    Part #: 90500116-R | SKU: SYM26284

    Spare mounting bracket, With hardware, Handles not included
  • Symbol VC5090 Accessory
    Part #: KT-81524-01R | SKU: SYM30868

    Kit, Desiccant.
  • Symbol VC5090 Accessory
    Part #: 25-71919-04R | SKU: SYM72672

    Cable Assembly (VC5090 DC Power Cable - Cold Temp)
