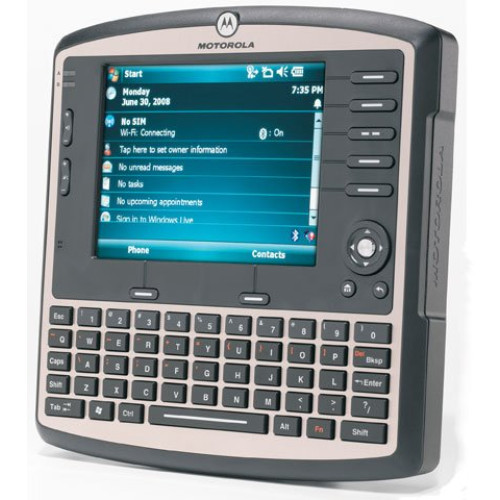

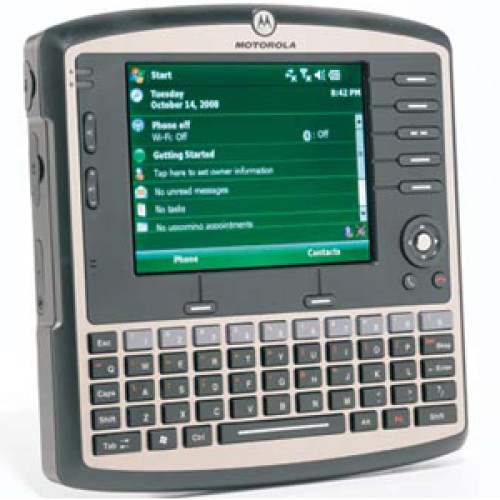

VC6096-MACSKQRT1WR - Motorola VC6096 Fixed/Vehicle Mount Data Terminal

The Motorola VC6096 all-in-one in-cab solution is designed to help transportation and logistics providers achieve cost-effective compliance, maximize driver productivity, improve safety and vehicle utilization, reduce costs and improve customer service. Built to handle the rigors of the road, the VC6096 provides drivers with the comprehensive simultaneous wireless voice and data capabilities needed to maximize operational efficiency - including wireless WAN (WWAN), wireless LAN (WLAN), Bluetooth, GPS and telematics support. An open-platform solution, the VC6096 gives you the power of choice, allowing you to select and control the applications and peripherals that best meet your business needs.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
VC6096-MACSKQRT1WR VC6096 Term with HSDPA 802.11a/b/g and Bluet Class Ii Radios
Information:   |  Specifications  |  Motorola's VC6096 page  |
Accessories:   |  Accessories/Options  |  Motorola VC6096 service contract  |

VC6096-MACSKQRT1WR Details

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC6096
  • Product Name: VC6096 Vehicle Mount Computer

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Height: 9.5"
  • Width: 9.3"
  • Depth: 2"
  • Weight (Approximate): 4.85 lb

Interfaces/Ports

  • Interfaces/Ports:
    • 2 x Type A USB
    • 1 x Type B USB
    • 1 x RJ-45 Network
    • 2 x RS-232 Serial

Network & Communication

  • Antenna Form Factor: External
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • WPA2
    • WEP
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
  • Wireless Technology: Wi-Fi

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Certifications & Standards:
    • Electrical safety:
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • RF Exposure:
    • USA: FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU: EN 50360
  • Additional Information:
    • GPS: SiRFstarII GSC3ef/LP GPS Chipset
    • Bluetooth Class II Radio
    • Altitude: Operating range: 1,200 ft./365 m below sea level to 15,000 ft./4,572 m above sea level
    • Crash Hazard: MIL-STD-810E, 516.5 Proc VI

Display & Graphics

  • Touchscreen: Yes
  • Display Color: Color
  • Screen Size: 6.5"
  • Graphics Modes: VGA

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Number of Keys: 65
  • Keyboard Type: QWERTY

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.1 Professional Edition
Part # Description Availability Price Order
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00
SSE-VC60XX-30 Motorola Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage.
Ships Free in 3-5 Days
$705.87

The Motorola VC6096-MACSKQRT1WR is also known as SYM-VC6096MACSKQRT1W or VC6096MACSKQRT1WR .
