Photo of Motorola VC70N0-F-60VDC-U-R Motorola logo

Motorola VC70N0

EMBEDDED 7PRO 11ABGN

See Price in Cart

Free Shipping

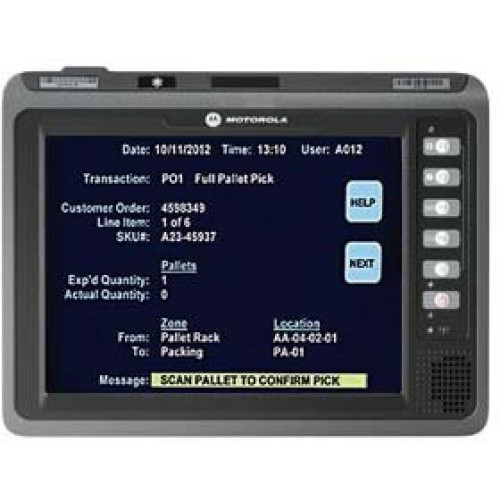

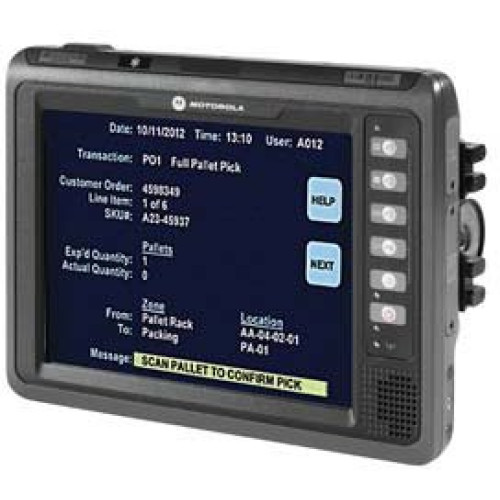

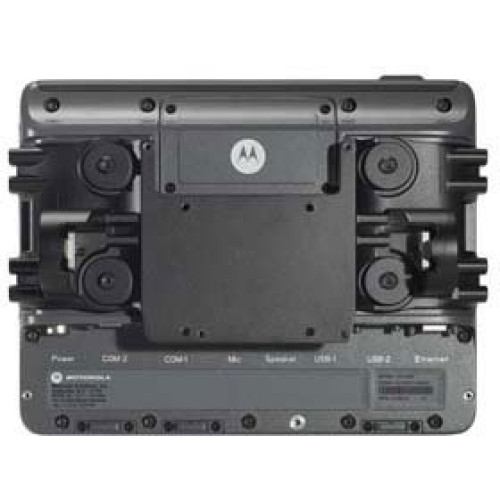

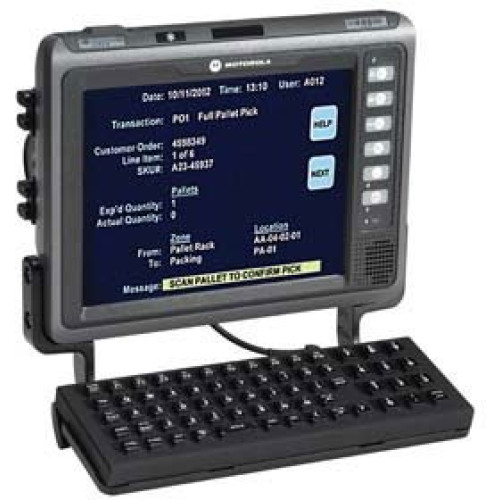

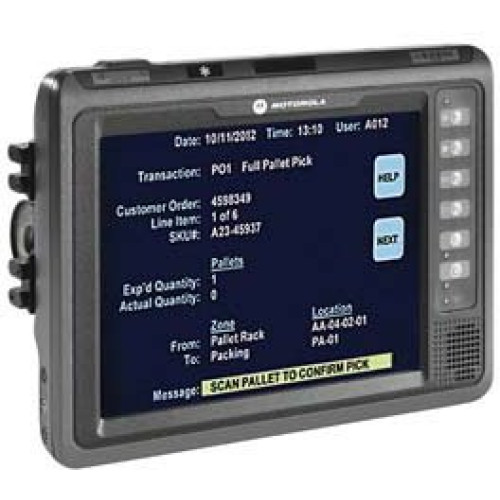

Motorola VC 70N0 Terminal

The VC 70N0 is the right-sized device for all your material-handling vehicles. Its compact design improves visibility and safety while still providing a large high-resolution display for all the information operators need to improve productivity and task accuracy, in almost any lighting condition. The powerful VC 70N0 supports traditional Telnet to modern browser-based graphic-rich applications, covering receiving, put-away, replenishment, picking, packing and shipping. You get the flexibility to add the options needed to maximize efficiency - including corded or cordless bar code scanners, keyboards and a variety of voice capabilities.

Full specifications (PDF)

Manufacturer part number: VC70N0-F-60VDC-U-R

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC70N0
  • Product Name: VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Width: 8.9"
  • Depth: 2.4"
  • Length: 11.5"

Interfaces/Ports

  • Interfaces/Ports:
    • 2 x RS-232 Serial
    • 3 x USB
    • 1 x CANbus
    • 1 x RJ-45 Network

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • IP 66
    • MIL -STD 810G; Method 514.6
    • MIL -STD 810G; Method 516.6
    • MIL -STD 810G
    • IEC 68-2-5
    • Electrical Safety:
    • UL /cUL /IE C/EN 60950-1 Indoor Use
    • UL /cUL /IE C/EN 60950-22 Outdoor Use
    • EMI /RFI:
    • FCC Part 15, Class B
    • ICES 003 Class B
    • EN55022
    • EN 301 489-1
    • EN 301 489-17
    • WLAN:
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • AS/NZS 4268
    • Flammability:
    • IEC UL 94-VO

Display & Graphics

  • Touchscreen: Yes
  • Display Screen Type: LCD
  • Screen Size: 10.4"
  • Graphics Modes: XGA
  • Display Resolution: 1024 x 768

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 1 GHz

Memory

  • Flash Memory: 2 GB
  • Standard Memory: 512 MB

Network & Communication

  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Technology: Wi-Fi

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Embedded Compact 7
