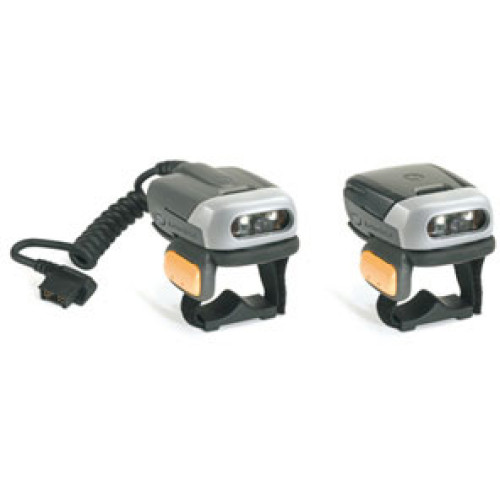

Motorola RS507 Ring Barcode Scanner

Motorola RS507 Ring Barcode Scanner

The Motorola RS507 Ring Imager Hands-Free Imager gives workers the superior blend of technology, form and function needed to achieve a new level of productivity in package handling and warehouse applications. Advanced ergonomics, including Bluetooth cordless freedom, provide unparalleled user comfort and movement, regardless of hand size or hand preference. As the most rugged scanner in its class, the RS507 Ring Imager offers reliable performance in demanding environments from the loading docks to the warehouse floor and assembly line. The RS507 Ring Imager is also available with an adapter cord for use with the WT4000 series.
Discontinued - Need Assistance
See all options
  • Hands-free scanning
  • Bluetooth cordless freedom
  • Optional corded WT4000 adapter
  • Reads 1D and 2D barcodes
  • Exceptional motion tolerance
  • Bright central dot ensures quick, accurate scanning
  • Multiple field replaceable components
  • Compatible with Motorola"s Mobility Software Platform (MSP)
  • Motorola Interactive Sensor Technology (IST)
  • New manual triggering mechanism with easy swivel
  • Magnesium chassis with 6 ft. drop specification,
  • IP54 sealing,
  • Extended operating temperature range (-4 degrees to 131 degrees F/-20 degrees to 55 degrees C)
  • Dual rear LEDs and high power beeper
2D IMAGER ENGINE

Ambient light immunity Indoor: 450 ft. candles (4,845 lux)
Outdoor: 9,000 ft. candles (96,900 lux)

PERFORMANCE CHARACTERISTICS

Pitch1 ? 60? from normal

Roll2 +/- 35 degrees from vertical

Yaw3 ? 50? from normal

PHYSICAL CHARACTERISTICS

Dimensions (HxWxD) Triggerless, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Triggerless, extended battery:
1.42? (3.6 cm) H x 22.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, corded:
1.3? (3.3 cm) H x 2.1? (5.3 cm) W x 22.92? (7.4 cm) (w/o cord) L

Weight Triggerless, standard battery:
4.3 oz./121.4 g

Triggerless, extended battery:
5.2 oz./146.4 g

Trigger, standard battery:
4.8 oz./134.8 g

Trigger, corded: 5.0 oz./140.8 g

USER ENVIRONMENT

Drop specification 6 ft./1.8 m multiple drops to concrete across operating temperature range

Environmental sealing IP54

Operating temperature -4? to 131? F/-20? to 55? C

Storage temperature -40? to 158? F/-40? to 70? C excl. Battery

-40? to 140? F/-40? to 60? C incl. Battery

1 Pitch Controlled by dropping or raising the wrist
2 Controlled by rotating the wrist clockwise or counterclockwise
3 Controlled by rotating the wrist from left to right or vice versa

Extended Details
Refine Your Options
  1. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM20000SNWR | SKU: MOT70704

    RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with standard capacity battery for Bluetooth interface to supported mobile computers.
  2. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM20000STWR | SKU: MOT70703

    RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
  3. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM20000ENWR | SKU: MOT70705

    RS507 Ring Imager, RS507 Hands-Free, 2D Imager Scanner, Bluetooth, No Trigger, Cordless, Extended Battery.
  4. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM20000CTWR | SKU: MOT70702

    RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and corded adaptor to the WT4090 wearable terminal. Requires extended capacity battery for the WT4090.
  5. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM200000TWR | SKU: MOT103098

    RS507 Ring Imager, Hands Free Ring Scanner, 2D Imager, Bluetooth, Trigger. Battery and corded adapter to the WT4090 wearable terminal not included. See accessories.
  6. Symbol RS507 Ring Barcode Scanner
    Part #: RS507-IM20000ST06 | SKU: SYM253404

    RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer. iOS compatible.
  7. Symbol RS507 Ring Barcode Scanner
    Part #: RS507-IM20000ETWR | SKU: SYM309039

    RS507 Ring Imager, Hands-Free 2D Imager, 2-Finger mounted barcode imager with manual trigger, Bluetooth. Includes Extended Battery.
  8. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-DL20000STWR | SKU: MOT235511

    RS507 Ring Imager, Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
  9. Symbol RS507 Ring Barcode Scanner
    Part #: RS507-DL200000TWR | SKU: SYM366134

    RS507, Hands-Free Imager (Trigger, No Battery, DL)
  10. Symbol RS507 Ring Barcode Scanner
    Part #: RS507-DL20000ENWR | SKU: SYM229464

    RS507 Ring Imager, Hands-Free 2D Imager DL Focus, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with extended capacity battery for Bluetooth interface to supported mobile computer

Items 1 to 10 of 11 total

Page:
  1. 1
  2. 2

Recommended Accessories for Model: Motorola RS507 Ring Barcode Scanner

  • Motorola RS507 Battery
    Part #: KTBTRYRS50EAB00-01 | SKU: MOT76279

    RS507 Standard Battery 970mah 3.7v
    Price: $88.07
    In Stock
  • Zebra RS507 Accessory
    Part #: KT-PAD-RS507-10R | SKU: ZEB76276

    Comfort Pads For RS507 10 Pack
    MSRP: $91.33 Price: $67.96
    In Stock
  • Zebra RS507 Accessory
    Part #: KT-BKL-RS507-10R | SKU: ZEB76273

    Strap Buckles, 10 Pack, Compatible with RS507.
    MSRP: $31.66 Price: $28.14
    In Stock
  • Zebra RS507 Accessory
    Part #: KT-STRPT-RS507-10R | SKU: ZEB76278

    Straps For RS507 Triggered Configuration. Quantity: 10.
    MSRP: $80.37 Price: $59.82
    In Stock
  • Zebra RS507 Accessory
    Part #: KT-CLMPT-RS507-01R | SKU: ZEB76275

    Kit (Finger Clamp, Trigger, 1 Per Package) For The RS507
    MSRP: $152.21 Price: $113.26
    In Stock
