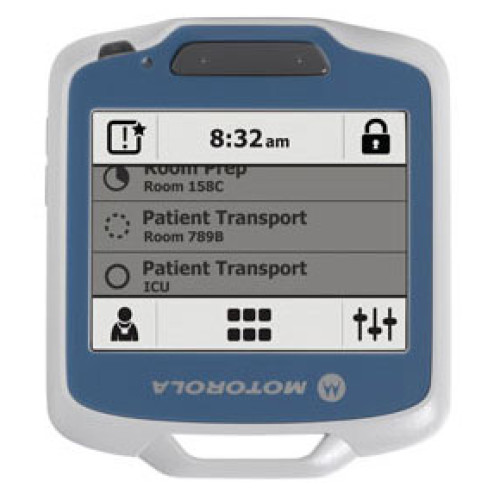

Photo of Motorola SB1-HC
Motorola logo

Motorola SB1-HC

This brand new category of mobile device is the smallest form factor yet to provide nurses and clinical staff with a core set of vital features that can improve patient safety and staff productivity. With a task management application, you can distribute personal dynamic task lists that keep staff focused on the right assignments. Bar code scanning helps streamline task execution and improve task accuracy, from equipment and building maintenance to inventory management and patient transport. And with push-to-talk, workers can easily get an instant answer to an urgent question. The result? A higher standard of care. More efficient staff. And a better patient experience.

Scanner Capability

Scan Pattern

Scanner Type

SB1-HC Options
Part # DescriptionAvailabilityPriceOrder
SB1B-HE11A0WW SB1-HC, Smart Badge, Health care Version, E-Ink Display, Omnidirectional 1D/2D Scanner, Wi-Fi (802.11 b/g/n), Single Unit. Ships in 24-48 Hours $384.55
Retail $560
Save 31%

Motorola SB1-HC Details

Communications

Radio
Wi-Fi IEEE® 802.11b/g/n

Performance characteristics

Applications
Supports thin client applications — HTML5 with RhoElements extensions

Processor (CPU)
i.MX35 (532MHz)

Memory
128 MB RAM/128 MB FLASH

Data capture options
1-D/2-D omni-directional barcode reader with integrated aiming and built-in illumination

Physical characteristics

Disinfectant-ready
Yes

Zebra Interactive Sensor Technology (ISTT)
Motion Sensor: Integrated accelerometer enables low-power badge mode and screen rotation

Durable
Yes

Display resolution
QVGA (320x240)

Weight
4.4 oz/124 g

Touch panel
Full screen resistive touch; finger operation (no stylus)

Voice, Speech and Audio
Integrated microphone, speaker, 2 PTT buttons (public and private) and headset jack

Notification
Beeper, Multi-colored LEDs

Display type
3.0 inch E Ink® Pearl display; 4-bit gray scale (16 shades)

Dimensions (HxWxD)
3.62 in L x 3.19 in W x 0.94 in D / (92mm L x 81mm W x 24mm D)

Power

Battery
910mAH (full charging in less than 4 hours)

Regulatory specifications

RF exposure
FCC Part 2, FCC OET Bulletin 65 Supplement C, RSS-102, EN 62311

Electrical safety
IEC/UL/CSA/EN 60950-1

Laser safety1
EN 60825-1, IEC 60825-1, IEC/EN 62471

Environmental
RoHS Directive 2002/95/EEC

EMI/RFI
FCC Part 15 Class B, ICES-003 Class B, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 60601-1-2

Radio
Wi-Fi IEEE® 802.11b/g/n

User environment

Humidity
5% to 95% non-condensing

Drop specification
Multiple 4-ft./1.22-m drops to tile over concrete per MIL STD 810G specifications

Operating temperature
32° F to 104° F / 0° C to 40° C

Environmental sealing
IP54

Storage temperature
-40° F to 158° F / -40° C to 70° C
