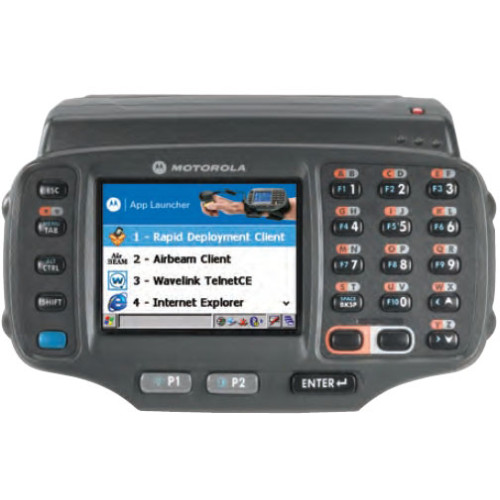

Motorola WT41N0 Hand Held Computer

With the major increase in volume driven by multi-channel support, demands for the ultimate in customer service, plus increasing regulations for traceability, you need to move more items through your warehouse or distribution center and capture more information about those items than ever before. With the WT41N0 wearable mobile computer on the arms of your workers, you will. Now, workers can keep their hands and eyes on the materials they are handling. No time is lost handling paper or a handheld mobile device. add a ring-style scanner worn on a finger and workers can capture bar${kw-space} codes on the fly, able to document the path of that item for full traceability and verify that the right items are in the right orders, shipped to the right customers at the right time. The result is improved customer satisfaction and loyalty. more throughput with the same staff, driving staff utilization up. and less time spent capturing more information on item movement, driving the cost of compliance with traceability regulations down.

Style ?

WT41N0 Options
Part # DescriptionAvailabilityPriceOrder
WT41N0-N2H27ER WT41N0, Wlan 802.11a/b/g/N, Non-Touch Screen, 2-Color Keypad, 512Mb/2Gb, Ce 7.0, Extended Battery Ships Today $2,058.20
WT41N0-N2S27ER WT41N0, Wlan 802.11a/b/g/N, Non-Touch Screen, 2-Color Keypad, 512Mb/2Gb, Ce 7.0, Standard Battery Ships Today $2,037.10
WT41N0-T2S27ER WT41N0, Wlan 802.11a/b/g/N, Touch Screen, 2-Color Keypad, 512Mb/2Gb, Ce 7.0, Standard Battery Ships Today $2,107.46
WT41N0-T2H27ER WT41N0, Wlan 802.11a/b/g/N, Touch Screen, 2-Color Keypad, 512Mb/2Gb, Ce 7.0, Extended Battery Ships Today $2,128.70

Motorola WT41N0 Details

Application Development

Microsoft IDEs and SDKs

Communications

Network connections
Full-speed USB, host or client

WLAN
IEEE 802.11 a/b/g/n

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps, 802.11n: up to 72.2 Mbps

Antenna
Internal with diversity

Frequency range1
802.11a – 5.0 GHz, 802.11b: 2.4-2.5 GHz, 802.11g: 2.4-2.5 GHz, 802.11n: 2.5 and 5.0 Ghz

WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR

Notices and Disclaimers
See footnotes2

Performance Characteristics

Processor (CPU)
Dual Core OMAP4 @ 1GHz

Operating system (OS)
Microsoft Windows Embedded Compact CE 7.0

Data capture options
Wearable scanner RS309, RS409, RS419 and RS507 are optional accessories

Memory
512MB RAM/2GB Flash

Voice recognition
Can run voice recognition engines and text-to-speech engines for voice picking applications

Physical Characteristics

Weight
Terminal w/ standard battery: 11.3 oz. (8.4 + 2.9 oz.) / 320.3 g (238.1 + 82.2 g)
Terminal w/Extended Battery: 13 oz. (8.4 oz + 4.6 oz.)/ 369.8 g (238.1 +131.7 g)
Holder: 2.5 oz. (70.9 g) (includes straps and cushion)

Dimensions (HxWxD)
5.7 L x.3.7 W x 1.0 H in (142 x 93 x 26 mm)

Display resolution
QVGA in landscape mode (320 x 240)

Keyboard
23 key alpha-numeric for alpha entry: legacy color-coded alpha entry

Display type
Backlit color TFT, touch screen available

Audio options
Microphone, AC97 Compatible Codec to play audio (over speaker or headset), Simultaneous audio

Power

Battery
Rechargeable Li-ion battery 2, 400 mAh @ 3.7 VDC; extended rechargeable Li-Ion battery: 4, 600 mAh @ 3.7 VDC

Regulatory Specifications
EMC
EN 301 489-1, EN 301 489-17, ICES 003 Class B, EN 61000-3-2, EN 61000-3-3, CISPR 22 Class B, CISPR 24, FCC Part 15 Subpart B

RF exposure
FCC Parts 15.247, 15.407, 15.205, 15.207, 15.209, 15.203, EN 300 328, EN301 893, RSS-100, RSS-210, ARIB STD-66 & 33, ARIB STD-T71, AS/NZS 4268

Electrical safety
CSA C22.2 No. 60950-1, Certified to UL60950-1, EN60950/IEC 60950-1 plus all national deviations

User Environment

Operating temperature
-4° to 122° F (-20° to 50° C)

Storage temperature
-40° to 158° F (-40° to 70° C)

Humidity
5% to 95% non condensing

Tumble specifications
500 one-half meter tumbles at room temperature (1, 000 drops)

Drop specification
Multiple drops to concrete: 4 ft. (1.2 m) across the operating temperature range

Electrostatic discharge (ESD)
EN61000-4-2 15kV Air, 8kV contact, 8kV indirect

Environmental Sealing
IP54 category 2
