Photo of Motorola Omnii XT15
Motorola logo

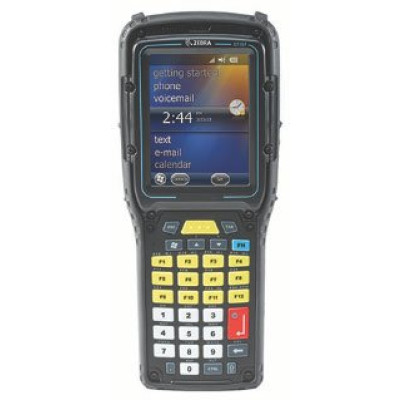

Motorola Omnii XT15 Hand Held Computer

The Omnii XT15 is uniquely adaptive by design - combining extreme versatility with open innovation to deliver the flexibility you require to adapt as your business needs change. As the next evolution of the Omnii platform, the Omnii XT15 takes the best features of the Omnii XT10 and adds new functionality to create a device that gives mobile workers the greatest access to business applications - anytime, anywhere. With its certified IP67 and IP65 rating, the Omnii XT15 delivers reliable performance and unparalleled adaptability for the most demanding of environments and applications. Find out why Omnii XT15 is the ultimate supply chain handheld solution.
Questions?
1-888-875-7170
We respond to every email

Model

Network Connectivity ?

Style ?

RAM Memory

Operating System ?

Display Resolution

Scanner Type ?

Data Collection Type ?

Omnii XT15 Options
Part # DescriptionAvailabilityPriceOrder
OB031130100B1102 Omnii XT15, HV DISP CE6.0 STAY-LINKED 59KY ALPHANUMERIC TELE 6FN 1D Ships Free Today $1,562.36
Retail $3030
Save 48%
OB03A100100A1102 Omnii XT15, HIGH VISIBILITY, 59 key ALPHA ABC, MICROSOFT Windows Embedded Handheld, ENGLISH, 512MB, SCANNER 1D AUTO RANGE SE1524ER, PISTOL GRIP with STYLUS Ships Free Today $2,009.64
Retail $3336
Save 39%
OB13110010011101 Omnii XT15, ED DISP CE6.0 59KY ALPHANUMERIC TELE 6FN
Ships Free in 3-5 Days
$1,480.71
OB13110010011104 Omnii XT15, ED DISP CE6.0 59KY ALPHANUMERIC TELE 6FN HAND STRAP
Ships Free in 3-5 Days
$1,513.05
OB13110010081102 Omnii XT15, Wi-Fi (802.11a/b/g/n), 2D Imager Scanner, Windows CE 6.0, Pistol Grip, 512MB/1GB, Alphanumeric Keypad, Bluetooth, 5300 mAh Battery, Extreme Duty Display, English. Interface cables and charging cradle sold separately. Ships Free Today $1,982.75
OB131100100A1102 Omnii XT15, Wi-Fi (802.11a/b/g/n), 1D Scanner, Windows CE 6.0, 512MB RAM, 1GB Flash, Extreme Duty Display, Gun Grip. Interface cables and charging cradle sold separately. Ships Free Today $2,183.72
OB131100100A1104 Omnii XT15, ED DISP CE6.0 59KY ALPHANUMERIC TELE 6FN 1D SE1524ER HA Ships Free Today $2,149.84
OB131100100B1102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB Ships Free Today $2,048.97
OB131100100B1104 Omnii XT15, ED DISP CE6.0 59KY ALPHANUMERIC TELE 6FN 1D SE1224HP HA Ships Free Today $2,015.86
OB13110020081102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB
Ships Free in 3-5 Days
$1,982.75
OB131100200A1102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB
Ships Free in 3-5 Days
$2,183.72
OB131100200B1102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB
Ships Free in 3-5 Days
$2,048.97
OB131100300A1102 Omnii XT15, ED DISP CE6.0 36 KY Alphanumeric CALC 12FN 1D SE1524ER
Ships Free in 3-5 Days
$2,183.72
OB13110080011101 Omnii XT15, ED DISP CE6.0 34 KY NUM TELE 12FN
Ships Free in 3-5 Days
$1,480.71
OB131100800A1102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB
Ships Free in 3-5 Days
$2,183.72
OB131100800B1102 Omnii XT15, ED DISP CE6.0 34 KY NUM TELE 12FN 1D SE1224HP PGRIP
Ships Free in 3-5 Days
$2,048.97
OB13112010011101 Omnii XT15, ED DISP CE6.0 OTT 59KY ALPHANUMERIC TELE 6FN
Ships Free in 3-5 Days
$1,654.73
OB13112010011104 Omnii XT15, ED DISP CE6.0 OTT 59KY ALPHANUMERIC TELE 6FN HAND STRAP
Ships Free in 3-5 Days
$1,687.07
OB13112010081102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB Ships Free Today $2,156.00
OB13112010091102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB Ships Free Today $2,357.74
OB131120100A1102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB Ships Free Today $2,357.74
OB131120100B1102 Omnii XT15, Wi-Fi (802.11a/b/g/n), Gun Grip, 1D Scanner, Windows CE 6.0, 512MB RAM, 1GB Flash, 59 key Alphanumeric Keypad, 5000 mAh Battery, Extreme Duty Display. Interface cables and charging cradle sold separately. Ships Free Today $2,222.99
OB131120200A1101 Omnii XT15, ED DISP CE6.0 OTT 36 KY NUMC TELE 12FN 1D SE1524ER
Ships Free in 3-5 Days
$2,290.75
OB131120200A1102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB
Ships Free in 3-5 Days
$2,357.74
OB131120200B1102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB
Ships Free in 3-5 Days
$2,222.99
OB131120500A1102 Omnii XT15, ED DISP CE6.0 OTT 66KY ALPHANUM TELE 6FN 1D SE1524ER PG
Ships Free in 3-5 Days
$2,357.74
OB131120800A1102 Omnii XT15, ED DISP CE6.0 OTT 34 KY NUM TELE 12FN 1D SE1524ER PGRIP
Ships Free in 3-5 Days
$2,357.74
OB131120800A1104 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512 MB SDRAM / 1GB
Ships Free in 3-5 Days
$2,323.86
OB13A10010081102 Omnii XT15, STANDARD WITH EXTREME DUTY DISPLAY, 512MB SDRAM / 1GB
Ships Free in 3-5 Days
$2,048.97
OB13A100100A1102 Omnii XT15, ED DISP Windows Embedded Handheld 6.5 59KY ALPHANUMERIC TELE 6FN 1D SE1524ER Ships Free Today $2,249.94

Page: 1 2 3 4 5 6 7 8 9 10»

Accessories

Part # DescriptionAvailabilityPriceOrder
ST3002 ARCTIC FREEZER BATTERY PACK 5500 mAh Ships Free Today $132.80
Retail $175.10
Save 24%
MT3505 Clamp Base (for 4" or 12" RAM arm) - Clamp the RAM arm on bars with square or rectangular cross section. Ships Free Today $53.85
Retail $71
Save 24%
MT3507 CLAMP BASE FOR 4IN OR 12IN RAM Ships Free Today $52.33
Retail $69
Save 24%
ST1002 CRADLE VEHICLE POWERED COMMS 12-30V Ships Free Today $345.09
Retail $455
Save 24%
9008693 CABLE POWER IEC NORTH AMERICA Ships Free Today $15.86
PS1350 72V PRE REGULATOR MODULE Ships Free Today $210.09
Retail $277
Save 24%
ST6081 RUBBER BOOT STANDARD BACK - Gray Ships Free Today $66.75
Retail $88
Save 24%
ST6025 HAND STRAP - DOUBLE LOOP Ships Free Today $29.91
Retail $35
Save 14%
ST6051 Forklift Carrying Case (Holster) for Handheld PC Ships Free Today $73.57
Retail $97
Save 24%
MT3501 VESA Plate, Compatible with 4" or 12" RAM Arm to Mount a Vehicle Mounted Computer on any Plane. Ships Free Today $42.47
Retail $56
Save 24%
ST6055 Carrying Case (Holster) for Handheld PC, hard shell, integrated back Ships Free Today $95.56
Retail $126
Save 24%
ST1000 Vehicle Cradle, Non-Powered Ships Free Today $104.67
Retail $138
Save 24%
MT3502 8585 Accessories, Round Plate (for 4" or 12" RAM arm) - Centric, smaller footprint. Ships Free Today $44.75
Retail $59
Save 24%
ST4001 ADAPTER SNAP MODULE - ACTIVE SYNC & CHARGE (USB CABLE ORDERE Ships Free Today $157.76
Retail $208
Save 24%
ST1050 POWER SUPPLY AC FOR SNAP MODULES & REPLACEMENT FOR DOCKING S Ships Free Today $35.60
Retail $45
Save 20%
ST6090 Onmii XT15 Accessory Carrying Case - Standard Back Cover Ships Free Today $60.68
Retail $80
Save 24%
CV6021 STRAP SHOULDER HEAVY DUTY Ships Free Today $39.85
Retail $52
Save 23%
CA1210 DC PoEr Extension Cable, 6 ft., Wtaerproof Ships Free Today $129.69
Retail $171
Save 24%
ST6500 KIT PISTOL GRIP - FOR XT15F FREEZER BACK COVER Ships Free Today $73.57
Retail $97
Save 24%
ST6050 Carrying Case (Holster) for Handheld PC, soft shell Ships Free Today $81.16
Retail $107
Save 24%
ST6030 Shoulder Strap Ships Free Today $26.65
Retail $29
ST6085 RUBBER BOOT EXPANSION BACK (with EXTENDED ENDCAP) Ships Free Today $60.87
Retail $88
Save 30%
ST6084 RUBBER BOOT EXPANSION BACK (with EXTENDED ENDCAP) Ships Free Today $67.10
Retail $97
Save 30%
ST6083 RUBBER BOOT EXPANSION BACK - Gray Ships Free Today $62.25
Retail $90
Save 30%
ST6082 RUBBER BOOT EXPANSION BACK - YELLOW
Ships Free in 3-5 Days
$76.60
Retail $101
Save 24%
ST6080 RUBBER BOOT STANDARD BACK - YELLOW
Ships Free in 3-5 Days
$75.08
Retail $99
Save 24%
ST6026 Double loop hand strap
Ships Free in 3-5 Days
$33.32
Retail $41
Save 18%
ST4005 ADAPTER SNAP MODULE - DE9 RS-232 & CHARGE Ships Free Today $179.12
Retail $234
Save 23%
ST4004-WW XT15 4-SLOT Ethernet CHARGING CRADLE Ships Free Today $619.11
Retail $787
Save 21%
ST4002-WW XT15 1-SLOT USB CHARGING CRADLE Ships Free Today $206.29
Retail $272
Save 24%
ST4000 ADAPTER SNAP MODULE - CHARGE ONLY Ships Free Today $124.73
Retail $182
Save 31%
ST3113 POWER SUPPLY VEHICLE POWER ADAPTER (CLA FOR SNAP MODULES)
Ships Free in 3-5 Days
$110.67
Retail $160
Save 30%
ST3006-WW 6-Slot Battery Charger. Includes power supply. Ships Free Today $298.12
Retail $435
Save 31%
PX3058 NEO Accessories, Cable - Micro-USB to Standard USB Type A plug (USB client for ActiveSync)
Ships Free in 3-5 Days
$47.31
MT3510 RAIL BASE (FOR 4" OR 12" RAM ARM), 2" TO 2 1/2 Ships Free Today $61.67
Retail $90
Save 31%
MT3509 8585 Accessories, Rail Base (for 4" or 12" RAM arm) - Clamp the RAM arm on round tubes. 1-1/4" to 1-7/8" and 2" to 2 1/2" pipe diameters.
Ships Free in 3-5 Days
$60.68
Retail $80
Save 24%
9008950 Workabout Pro G Accessories, Power Lead - Quad Dock & charger - UK
Ships Free in 3-5 Days
$21.76
9008692 Workabout Pro G Accessories, Power Lead - Quad Dock & charger - Europe
Ships Free in 3-5 Days
$15.86
Protect Your Product
Motorola Service Contract - 1 year (SCE-OMXT15-10)
Zebra OneCare Service Center Essential. For renewals only. Does not include Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$163.71
+ Add to Quote
Motorola Service Contract - 1 year (Z1RE-OMXT15-1C00)
1 Year Zebra OneCare Essential Renewal. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$207.82
+ Add to Quote
Motorola Service Contract - 2 year (Z1RE-OMXT15-2C00)
2 Year Zebra OneCare Essential Renewal. Includes Comprehensive coverage. Does not include coverage for cradles
Ships in 3-5 Days
$416.47
+ Add to Quote
Motorola Service Contract - 3 year (Z1AE-OMXT15-3C00)
3 Year Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles. Must be purchased up front with the hardware (or within 30 days thereafter)
Ships in 3-5 Days
$379.16
+ Add to Quote

Motorola Omnii XT15 Details

COMMUNICATIONS

Narrowbanding

Narrowband (Optional):

UHF bands: 403 – 470 MHz

Channel Spacing: 12.5 - 25 kHz RF power: 500 - 1,000mW

Transmission speed: 4.8/9.6 kbps @ 12.5 kHz, 9.6/19.2 kpbs @ 25 kHz

See Footnote1

WWAN

2.5G GSM/GPRS/EDGE (optional on XT15 and XT15ni models only), UMTS 3.8G HSPA+ (optional on XT15 and XT15ni models only)

WPAN (Bluetooth Support)

Integrated Bluetooth® V2.0 + EDR

Frequency band

Quad-Band GSM: 850, 900, 1800, 1900 MHz
UMTS: Five Band UMTS: 800/850, 900, 1900, 2100 MHz

GPS

SIRF III GPS Receiver (optional on XT15 and XT15ni models only)

WLAN

On-board IEEE 802.11a/b/g/n (CCX V4 Certified)

DATA CAPTURE OPTIONS

Camera resolution

Color 3 megapixel, autofocus 4X digital zoom, Dual LED flash (optional on XT15 and XT15ni models only)

Scan Engines
SE955 1-D Range Laser, SE965HD 1-D Laser, SE1224HP 1-D Laser, SE1524ER 1-D Extended Range Laser, SE4500 1-D/2-D Standard Range Imager, SE4600 1-D/2-D Extended Range Imager (XT15f models)

PERFORMANCE CHARACTERISTICS

Processor (CPU)

Texas Instruments OMAP3 Processor @ 800 MHz.

Operating system (OS)

Microsoft Windows CE 6.0, Microsoft® Windows Embedded Handheld 6.5 Professional

Memory (Flash/RAM)

512MB RAM / 1 GB Flash ROM

PHYSICAL CHARACTERISTICS

Heater

Single core heater control logic board that dynamically heats scan window (XT15f Chiller model)
Multi-core heater control logic board that dynamically heats scan window and LCD display (XT15f Arctic model)

Audio options

Microphone, Speaker, Vibration feedback, Optional Push-to-Talk speaker, High volume 95dBA beeper

Keypad options

59 Key Full Alpha Numeric, 6 Function keys
55 Key Alpha Numeric, Phone keys
66 Key QWERTY Numeric, 6 Function Keys, Phone keys
36 Key Numeric, 12 Function keys
36 Key Numeric Alpha Modified, 12 Function keys
34 Key Numeric, 12 Function keys
XT15f models only - two high-reliability keypads with specially designed keyboards that resist freezing due to ice build-up in condensing environments: 58-key full alphanumeric with 6 “F” keys; 34-key numeric with 12 “F” keys

Display type

3.7” VGA (640 x 480) Transflective Color/Touch Display
2 Options - High Visibility; Extreme Duty

Weight

1.3 lbs / 610 g (with battery – XT15 and XT15 ni models)
1.8 lbs / 834 g (unit with SE965HP laser –
weight includes battery and pistol grip – XT15f models only)

Dimensions (HxWxD)

8.74 in. L x 3.94 in. W x 1.77” D (222 mm L x 100 mm W x 45 mm D) – XT15 models; 8.89 in. L x 3.86 in. W x 3.2 in. D at display (grip area 1.22 in. D) (226 mm L x 98 mm W x 82 mm D at display (grip area 31 mm D) – XT15f models

Expansion slot

Multiple internal Multi-function expansion interfaces with TTL serial, USB host, GPIO, Micro SD slot for FLASH expansion (up to 32GB)

POWER

Battery

PowerPrecision Lithium Ion 5000 mAh (not available on Arctic model)
Optional battery: 5300 mAh high capacity smart freezer battery designed for high performance in low temperatures (Standard for Arctic model; Optional for Standard and Chiller models).

USER ENVIRONMENT

Electrostatic discharge (ESD)

+/- 8kV contact, +/- 15kV air discharge

Drop specification

multiple 2.0m (6.5ft) drops to polished concrete, 1.7m (5.6ft),
26 drops to polished concrete (powered with options & accessories)

Environmental sealing

Rain/Dust: IP67, IP65, IEC 60529

Humidity

5% to 95% non-condensing (XT15 and XT15ni models) 5% to 95% non-condensing; condensing resistant (XT15f Chiller model) Condensing (condensing free using internal heaters) (XT15f Arctic model)

Storage temperature

-40°C to +60°C (-40°F to +140°F) (All XT15 models)

Operating temperature

-20° C to +50° C (-4° F to +122° F) (XT15, XT15ni and XT15f Chiller models) -30° C to +50° C (-22° F to +122° F) (XT15f Arctic model)




1 Narrowband is only available on CE models. Narrowband cannot be combined with the following:

Omnii XT15f Freezer Model

WWAN radio

Long Range Imager SE4600

Long Range Laser SE1524ER

Camera

Speaker

Motion Sensor (accelerometer)
