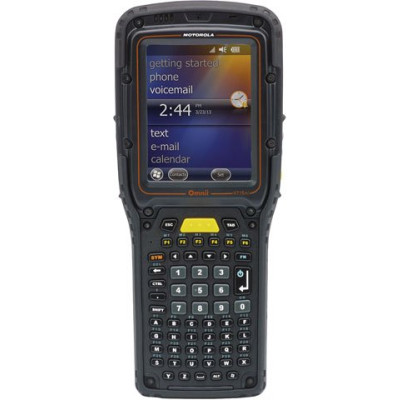

Motorola Omnii XT15NI Mobile Computer

Motorola Omnii XT15NI Mobile Computer

The Omnii XT15NI is uniquely adaptive by design - combining extreme versatility with open innovation to deliver the flexibility you require to adapt as your business needs change. As the next evolution of the Omnii platform, the Omnii XT15NI takes the best features of the Omnii XT10 and adds new functionality to create a device that gives mobile workers the greatest access to business applications "" anytime, anywhere. With its certified IP67 and IP65 rating, the Omnii XT15NI delivers reliable performance and unparalleled adaptability for the most demanding of environments and applications. Find out why Omnii XT15NI is the ultimate supply chain handheld solution.
Discontinued - Need Assistance
See all options

COMMUNICATIONS

Narrowbanding

Narrowband (Optional):

UHF bands: 403 – 470 MHz

Channel Spacing: 12.5 - 25 kHz RF power: 500 - 1,000mW

Transmission speed: 4.8/9.6 kbps @ 12.5 kHz, 9.6/19.2 kpbs @ 25 kHz

See Footnote1

WWAN

2.5G GSM/GPRS/EDGE (optional on XT15 and XT15ni models only), UMTS 3.8G HSPA+ (optional on XT15 and XT15ni models only)

WPAN (Bluetooth Support)

Integrated Bluetooth® V2.0 + EDR

Frequency band

Quad-Band GSM: 850, 900, 1800, 1900 MHz
UMTS: Five Band UMTS: 800/850, 900, 1900, 2100 MHz

GPS

SIRF III GPS Receiver (optional on XT15 and XT15ni models only)

WLAN

On-board IEEE 802.11a/b/g/n (CCX V4 Certified)

DATA CAPTURE OPTIONS

Camera resolution

Color 3 megapixel, autofocus 4X digital zoom, Dual LED flash (optional on XT15 and XT15ni models only)

Scan Engines
SE955 1-D Range Laser, SE965HD 1-D Laser, SE1224HP 1-D Laser, SE1524ER 1-D Extended Range Laser, SE4500 1-D/2-D Standard Range Imager, SE4600 1-D/2-D Extended Range Imager (XT15f models)

PERFORMANCE CHARACTERISTICS

Processor (CPU)

Texas Instruments OMAP3 Processor @ 800 MHz.

Operating system (OS)

Microsoft Windows CE 6.0, Microsoft® Windows Embedded Handheld 6.5 Professional

Memory (Flash/RAM)

512MB RAM / 1 GB Flash ROM

PHYSICAL CHARACTERISTICS

Heater

Single core heater control logic board that dynamically heats scan window (XT15f Chiller model)
Multi-core heater control logic board that dynamically heats scan window and LCD display (XT15f Arctic model)

Audio options

Microphone, Speaker, Vibration feedback, Optional Push-to-Talk speaker, High volume 95dBA beeper

Keypad options

59 Key Full Alpha Numeric, 6 Function keys
55 Key Alpha Numeric, Phone keys
66 Key QWERTY Numeric, 6 Function Keys, Phone keys
36 Key Numeric, 12 Function keys
36 Key Numeric Alpha Modified, 12 Function keys
34 Key Numeric, 12 Function keys
XT15f models only - two high-reliability keypads with specially designed keyboards that resist freezing due to ice build-up in condensing environments: 58-key full alphanumeric with 6 “F” keys; 34-key numeric with 12 “F” keys

Display type

3.7” VGA (640 x 480) Transflective Color/Touch Display
2 Options - High Visibility; Extreme Duty

Weight

1.3 lbs / 610 g (with battery – XT15 and XT15 ni models)
1.8 lbs / 834 g (unit with SE965HP laser –
weight includes battery and pistol grip – XT15f models only)

Dimensions (HxWxD)

8.74 in. L x 3.94 in. W x 1.77” D (222 mm L x 100 mm W x 45 mm D) – XT15 models; 8.89 in. L x 3.86 in. W x 3.2 in. D at display (grip area 1.22 in. D) (226 mm L x 98 mm W x 82 mm D at display (grip area 31 mm D) – XT15f models

Expansion slot

Multiple internal Multi-function expansion interfaces with TTL serial, USB host, GPIO, Micro SD slot for FLASH expansion (up to 32GB)

POWER

Battery

PowerPrecision Lithium Ion 5000 mAh (not available on Arctic model)
Optional battery: 5300 mAh high capacity smart freezer battery designed for high performance in low temperatures (Standard for Arctic model; Optional for Standard and Chiller models).

USER ENVIRONMENT

Electrostatic discharge (ESD)

+/- 8kV contact, +/- 15kV air discharge

Drop specification

multiple 2.0m (6.5ft) drops to polished concrete, 1.7m (5.6ft),
26 drops to polished concrete (powered with options & accessories)

Environmental sealing

Rain/Dust: IP67, IP65, IEC 60529

Humidity

5% to 95% non-condensing (XT15 and XT15ni models) 5% to 95% non-condensing; condensing resistant (XT15f Chiller model) Condensing (condensing free using internal heaters) (XT15f Arctic model)

Storage temperature

-40°C to +60°C (-40°F to +140°F) (All XT15 models)

Operating temperature

-20° C to +50° C (-4° F to +122° F) (XT15, XT15ni and XT15f Chiller models) -30° C to +50° C (-22° F to +122° F) (XT15f Arctic model)




1 Narrowband is only available on CE models. Narrowband cannot be combined with the following:

Omnii XT15f Freezer Model

WWAN radio

Long Range Imager SE4600

Long Range Laser SE1524ER

Camera

Speaker

Motion Sensor (accelerometer)
Extended Details
Refine Your Options
  1. Motorola Omnii XT15NI Mobile Computer
    Part #: OD13110050231814 | SKU: MOT298168

    Omnii XT15NI, Windows CE 60, English, 66 Key QWERTY Numeric, HSPA+ / GPS, PUSH-TO-TALK Speaker / Camera, 2D Imager SE4500, NI 5300 MAH Battery, HAnd Strap. Interface Cables And Charging Cradle Sold Separately.
  2. Motorola Omnii XT15NI Mobile Computer
    Part #: OD131120100A1112 | SKU: MOT298172

    Extreme Duty Display, 59 Alpha ABC Numeric, Microsoft CE 60, OTT, 512MB, HSPA+, GPS, Imager 2D Standard Range EA11, PistolGrip With Stylus. Interface Cables And Charging Cradle Sold Separately.
  3. Motorola Omnii XT15NI Mobile Computer
    Part #: OD131120300A1112 | SKU: MOT298177

    Extreme Duty Display, 36 Key Alpha Modified Numeric, Microsoft CE60, OTT, 512MB, HSPA+, GPS, SE1524ER Auto Ranging Scanner, 512MB, PistolGrip W/Stylus. Interface Cables And Charging Cradle Sold Separately.
  4. Motorola Omnii XT15NI Mobile Computer
    Part #: OD13110010081112 | SKU: MOT273453

    ED DISP CE60 59KY AlphaNumeric TelE 6FN 2D SE4500 PG. Interface Cables And Charging Cradle Sold Separately.
  5. Motorola Omnii XT15NI Mobile Computer
    Part #: OD13A100100B1112 | SKU: MOT273458

    ED DISP Windows Embedded HAndheld 65 59KY AlphaNumeric TelE 6FN 1D SE1224. Interface Cables And Charging Cradle Sold Separately.
  6. Motorola Omnii XT15NI Mobile Computer
    Part #: OD1311E010011D12 | SKU: MOT298216

    Omnii XT15NI, Windows CE 60, English, Mobi Control And OTT, 59 Key-Alpha ABC Numeric Telephony 6 FN, Scanner 1D - STD Range SE955. Interface Cables And Charging Cradle Sold Separately.
  7. Motorola Omnii XT15NI Mobile Computer
    Part #: OD13A10050211814 | SKU: MOT298231

    Embedded HAndheld 65, English, 66 Key QWERTY Numeric, HSPA+ / GPS, 2D Imager SE4500, NI 5300 MAH Battery, HAnd Strap. Interface Cables And Charging Cradle Sold Separately.
  8. Motorola Omnii XT15NI Mobile Computer
    Part #: OD13A100100A1112 | SKU: MOT273457

    ED DISP Windows Embedded HAndheld 65 59KY AlphaNumeric TelE 6FN 1D SE1524. Interface Cables And Charging Cradle Sold Separately.
  9. Motorola Omnii XT15NI Mobile Computer
    Part #: OD131100100A1112 | SKU: MOT273454

    ED DISP CE60 59KY AlphaNumeric TelE 6FN 1D SE1524ER. Interface Cables And Charging Cradle Sold Separately.
  10. Motorola Omnii XT15NI Mobile Computer
    Part #: OD131100100B1112 | SKU: MOT273455

    ED DISP CE60 59KY AlphaNumeric TelE 6FN 1D SE1224HP. Interface Cables And Charging Cradle Sold Separately.

Items 1 to 10 of 130 total
