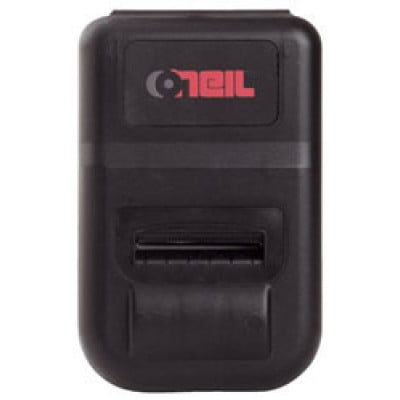

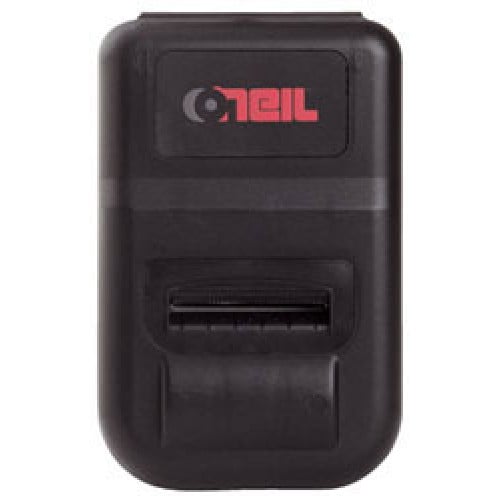

Photo of O'Neil 2i
O'Neil logo

O'Neil 2i Portable Printer

The O'Neil 2i has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

As the world's most popular portable, rugged printer, the 2i quickly prints both standard receipts, bar coded receipts. It is so small, light and durable, it can be easily taken anywhere when hooked to the belt of your field representative. It activates when the computer sends data and goes back to sleep automatically after the transaction, saving battery life. In addition, thanks to the printer's internal memory buffer, you never have to wait for a receipt to finish printing before performing other tasks.
2i Options
Part # DescriptionAvailabilityPriceOrder
200076-001 This part is replaced by 200071-101.
2i, 2" Dot Matrix, IrDA, Serial, with swivel belt clip.
See Replacement Call for Details
200075-001 This part is replaced by 200070-101.
2i, Dot Matrix Printer, 127 dpi, 1.85 inch Print width, 1.9 Lines per Second and Standard Belt Clip
See Replacement Call for Details

O'Neil 2i Details

Data Sheet

  • Prints 2" wide, multiple part receipts (like credit card receipts) in mobile applications
  • Rugged and Portable
  • Dot matrix printer
  • Small enough to be worn on a belt

Specifications

Physical Characteristics:

Size

7.375” x 4.675” x 2.415” 187.3 x 118.7 x 61.3 mm

Weight

13.8oz / 391.2g

Environment:

Operating Temp

0º C to 50º C

Storage Temp

-30º C to 60º C

Charging Temp

-10º C to 40º C

Relative Humidity

10% to 90% noncondensing

ESD Protection

8kV Air, 4 kV Contact

Print Technology:

Dot matrix

1.85” (48.8mm) print width, 127 DPI, 5 dots/mm

Print Head Life

1,000,000 Dot Lines

Print Speed

1.9 lines per second

Ribbon Cartridge

600,000 Characters

Fonts & Languages:

Memory Capacity

Flash/RAM Memory: 4/1 Mbit

Available Fonts

5 x 7 matrix

Int’l Characters

Latin, Hebrew

Graphics

Supports storage of graphics/logos in flash memory

Power Source (Input):

Battery

User Replacable 6V Nickel Metal Hydride 1800 mAh (DR10)

DC Input

12-15V, spike and surge protection built into the printer

Battery Characteristics:

Type

6V NIMH 1800mAH (DR10)

Endurance

Prints approx. 2,496” on a single battery charge

Battery Life

80% of original capacity after 300 cycles

Recharging

6-9 hours from AC Adapter or Cigarette Adapter

Communications:

RS-232 Serial

Up to 38.4k baud. Cables available for most popular laptops and handhelds.

IrDA

IrDA compliant infrared data communications up to 115.2k baud.

Media:

Roll Capacity

Carbonless, 2 ply Impact paper: 540” / 13.7m

Paper Width

2.25” / 57.2mm

Number of Copies

Original + 1 copy

Agency Approvals:

Agency

FCC B, CE, C-Tick

Warranty:

Warranty

1 Year (including printer case)

Optional Accessory:

Swivel Belt Loop

External Battery Charger

Magnetic Stripe / Smart Card Reader

Accessories

Accessory List

Part Number

Description

Paper

Chargers

490008-003

AC Adapter, Rt Angle

490024-000

Power Supply, Euro Plug, 12v DC, 1.6a

490023-000

Power Supply, UK Plug, 12vDC 1.6a

Batteries

550025-000

Battery, DR10, 6.0v

Cigarette Adapter

510002-003

Cigarette Lighter Adapter, Rt Angle, 5 Amp Fuse, Ul

Cables

210164-000

Coiled Cable, 2t / 2i Std

Manual

110053-000

Microflash Handbook (includes Config. Software)

Swivel Mount

210156-001

Belt Mount, Mf (swivel Lock), Cordura

280128-000

Vehicle Mount

Print Ribbon

410007-000

Ribbon, Epson , 2i - Black

The O'Neil 2i is also known as the ONeil 2i .
