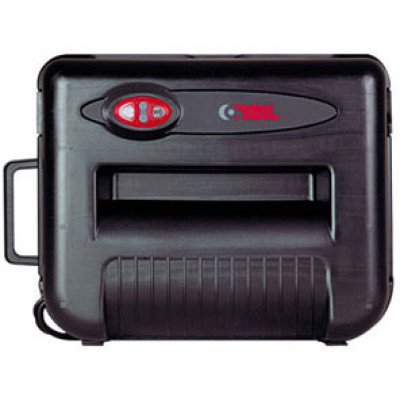

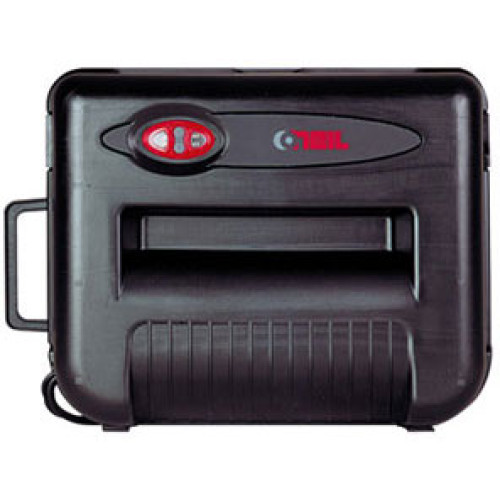

Photo of O'Neil 8i
O'Neil logo

O'Neil 8i Portable Printer

The O'Neil 8i has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The 8i is a rugged printer that was designed with field use in mind and is made of unbreakable polyethylene plastic. This makes it rugged enough to carry in the front seat of a delivery vehicle or carried into a delivery area. It features a unique paper feed design that literally eliminates paper jams. It can print full size, multi-part delivery receipts and invoices, and it can be held in any orientation, even upside down, without jamming. The printer can hold up to 200 sheets of 8.5" x 11" or A4 paper.
8i Options
Part # DescriptionAvailabilityPriceOrder
200200-000 8i, Dot Matrix, IrDA, Serial, vehicle mount, 180 cps Check Availability Call for Details
200191-100 Dot Matrix, IrDA, Serial, Bluetooth, 270 cps. Includes 4MB RAM, 8MB Flash, Ribbon and User Guide. Requires AC adapter (220180-100) & battery (Part# 550036-100), not included. See accessories. Check Availability Call for Details
200191-000 8i, Dot Matrix, IrDA, Serial, Bluetooth, 180 cps Check Availability Call for Details
200190-100 8i, Dot Matrix, IrDA, Serial, 270 cps. Includes 4MB RAM, 8MB Flash, Ribbon and User Guide. Requires AC adapter (220180-100) & battery (Part# 550036-100), not included. See accessories. Check Availability Call for Details
200190-000 This part is replaced by 200190-100.
8i, Dot Matrix, IrDA, Serial, portable, 270 cps, holds 200 sheets of 8.5" x 11" or A4 paper, includes 4MB Flash, 1MB RAM. Includes 1 ribbon, Battery (Part# 550036-100) not included. See accessories.
See Replacement Call for Details
200180-000 This part is replaced by 200190-000.
8i, Dot Matrix, IrDA, Serial, portable, 180 cps
See Replacement Call for Details

O'Neil 8i Details

Data Sheet

  • Prints full size, multi-part delivery receipts and invoices at point of delivery
  • Rugged enough to be used in the front seat of delivery vehicle or carried into receiving area
  • Powered by vehicle's 12-volt system (without voltage adapter), or used remotely with internal battery pack
  • Contains up to 200 sheets of 8.5" x 11" or A4 paper

Specifications

Physical Characteristics:

Size

15.5” x 11.75” x 4.25” 3.93 x 298.45 x 107.95 mm

Weight

101.4oz / 2875g

Environment:

Operating Temp

-20º C to 40º C

Storage Temp

-40º C to 70º C

Charging Temp

5º C to 40º C

Relative Humidity

10% to 90% noncondensing

ESD Protection

8kV Air, 4 kV Contact

Print Technology:

Print Head

9 pin impact

Print Speed

180 Characters per inch

Print Head Life

100 Million Dots

Ribbon Cartridge

2,000,000 Characters

Fonts & Languages:

Memory Capacity

Flash/RAM Memory: 4/1 Mbit

Available Fonts

10 CPI Pica/Elite; 12 CPI Pica/Elite

Int’l Characters

Arab-T, Arab-S, Arab-E, Cyrillic (CY110 & CY210), Greek (GRDOS & GRWIN), Hebrew (HB110, HB210, HB310), Latin

Power Source (Input):

DC Jack 1

12-15 (AC Adapter) spike and surge protected

DC Jack 2

12-15V (Cigarette Adapter) spike and surge protected

Optional Battery

12V Nickel Metal Hydride 3600 mAh

Battery Characteristics:

Type

12V NIMH 3600mAH (DR36)

Endurance

Approx. 224 invoices on one charge

Battery Life

80% of original capacity after 400 cycles

Recharged

3-4 hours (printer connected to an AC Adapter)

Communications:

RS-232 Serial

Up to 38.4k baud. Cables available for most popular laptops and handhelds.

IrDA

IrDA compliant infrared data communications up to 115.2k baud.

Media:

Paper

Fan-fold paper. 3” to 9.5” wide/A4

Number of Copies

Original + 3 copies

Capacity

200 Sheets

Agency Approvals:

Agency

FCC B, CE, C-Tick

Warranty:

Warranty

1 Year (including printer case)

Optional Accessory:

Softcase with storage for AC, Cigarette adapters, Data cable, and Notebook/ Hand held computers

Mounting Brackets - Locking/Non-locking

Battery

External Battery Charger

Accessories

Accessory List

Part Number

Description

Bag

750044-000

8i Carrying Case (Softcase)

Bag For Cradle

750063-000

Softcase, Std Cradle

Mounting Bkt.

220084-000

8i Mounting Bracket (locking)

220142-000

Mf8i Mounting Bracket (economy)

Power Adapters

220140-000

Ac Adapter (US) 19v, 45w, 2.37a

220141-000

Kit, Ac Adapter (Euro Cable) Eos 19v

220108-000

Kit, Truck Power

Battery

550032-000

Battery, 12v, 3500mah, O'Neil

Cig Adapter

510002-002

Cigarette Lighter Adapter 5 Amp Fuse, 6', Ul.

Cables

210147-000

Data Cable - Db9f - 7' (non Coiled)

Manual

110076-000

User Guide, Mf8i

The O'Neil 8i is also known as the ONeil 8i .
