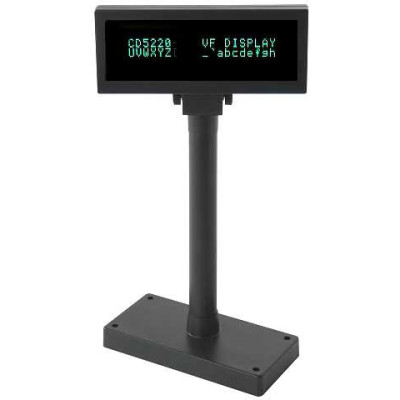

Photo of PartnerTech CD5220 Series
PartnerTech logo

PartnerTech CD5220 Series Pole Display

The CD5220 Series is an extremely versatile pole display, applicable to just about any point-of-sale scenario.
CD5220 Series Options
Part # DescriptionAvailabilityPriceOrder
5220ST12110 CD5220, RS-232, 2 line x 20 column, Vacuum Fluorescent Display, 9 mm Character Height, 12V, with PS/2. See Replacement Call for Details
CD5220ST1211OPT CD5220, RS-232, 2 line x 20 column, Vacuum Fluorescent Display, 9 mm Character Height, with Pass Through Check Availability Call for Details
CD5220CGSC12110 CD-5220 Series, 3/4""DIA. ROUND BASE, SERIAL VFD 2X20, P/ADAP Check Availability Call for Details
CD-5220CST12110-B CD5220, RS-232 serial, 2 line x 20 column, Vacuum Fluorescent Display, 9 mm Character Height, Standard Base. Color: black. Check Availability Call for Details
CD-5220CST12110 CD5220, RS-232 serial, 2 line x 20 column, Vacuum Fluorescent Display, 9 mm Character Height, Standard Base, with Pass Through, 12V Check Availability Call for Details
CD-5220CSC12110-B CD5220, RS-232 serial, 2 line x 20 column, Vacuum Fluorescent Display, 9 mm Character Height, Space Saving Base. Color: black. Check Availability Call for Details
CD-5220CSC12110 CD5220, RS-232 serial, 2 line x 20 column, Vacuum Fluorescent Display, 9 mm Character Height, Space Saving Base. Color: beige. Check Availability Call for Details
CD-5220CGST12110-B CD5220, RS-232, 2 line x 20 column, Blue-Green vacuum Fluorescent Display, 9 mm Character Height, 12V. Color: Black Check Availability Call for Details
CD-5220CGST12110 CD5220, Blue-Green vacuum fluorescent display, 2 line x 20 column, Serial, Pass-thru, 9.0 mm x 5.25 mm, 12V, Standard Base. Color: Beige Check Availability Call for Details
CD-5220CGSC12110-B CD5220, Blue-Green vacuum fluorescent display, 2 line x 20 column, Serial, 9.0 mm x 5.25 mm, Space Save/Base. Color: Black. Check Availability Call for Details
CD-5220CGSC12110 CD5220, Blue-Green vacuum fluorescent display, 2 line x 20 column, Serial, 9.0 mm x 5.25 mm, Space Save/Base. Color: Beige. Check Availability Call for Details

PartnerTech CD5220 Series Details

The CD-5220 customer pole display uses a vacuum fluorescent display (VFD) tube presenting bright and easy to read characters. Because of the VFD technology, the display is viewable from a wide angle. Customers will appreciate not having to remain in a fixed viewing position to see the display. The CD-5220 customer pole display has two pole sections giving you the choice of four different display heights. The display can be rotated up to 270 degrees. The head of the display can tilt up to 35 degrees maximum. The combination of these features gives you the flexibility to tailor the display position to your unique application. With two lines of twenty characters, the CD-5220 can display 96 alphanumeric messages with 13 partners characters. The CD-5220 customer pole display uses an easy to connect RS-232C serial port connection with available communication speeds of 4800 or 9600 bps. The CD-5220 pass-through function allows you to connect another serial device by sharing one single serial port on the host system. The CD-5220 also offers a variety of emulation modes including Epson, Aedex, Emax and Ultimate.

Model(s)

CD-5220C

Display Method

Vacuum fluorescent

Display Color

Blue Green

Brightness

700 cd/m2

Interface

RS-232 Serial (D-Sub 9 pin) with pass through function*

Power Supply

12VDC +/- 5% (5V or 24V)

Power Consumption

5 watts maximum

Safety

FCC, CE, EMC Approved

MTBF

25,000 hours

Weight

2 lb (.9 kg)

Viewable Angle

8 to 35 degrees

Rotation Angle

Maximum 270 degrees

Character Font

5 x 7 dot matrix, comma and decimal point

Character Size

9.0 mm x 5.25 mm

Character Pitch

8.3 mm

Character Type

96 alphanumeric, 13 partners sets and one custom

Number of Characters

40 (20 columns x 2 lines)

Notes * Standard Base includes a 9-Pin serial port. Small metal base would require an additional cable to provide this passthrough function
