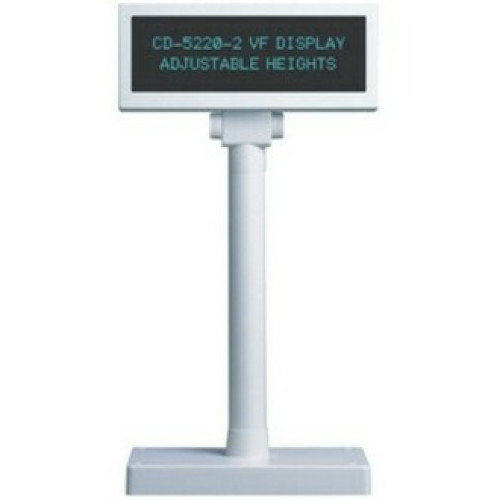

Photo of PartnerTech CD-5220CGSC12110-B PartnerTech logo

PartnerTech CD5220

Blue-Green vacuum fluorescent display, 2 line x 20 column, Serial, 9.0 mm x 5.25 mm, Space Save/Base. Color: Black.

Pole Display

Free Shipping

Ships in 24-48 hours

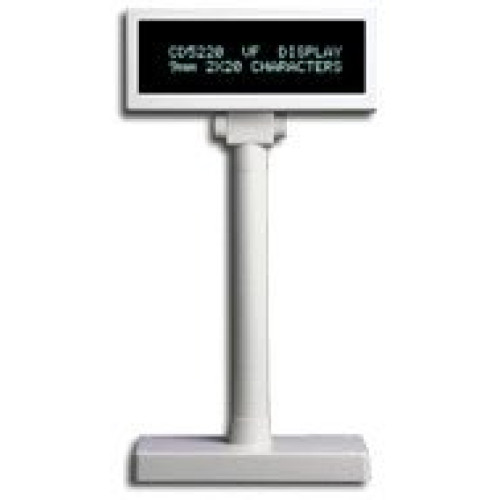

PartnerTech CD5220 Series Pole Display

The CD5220 Series customer pole display uses a vacuum fluorescent display (VFD) tube presenting bright and easy to read characters. Because of the VFD technology, the display is viewable from a wide angle. Customers will appreciate not having to remain in a fixed viewing position to see the display. The CD5220 Series customer pole display has two pole sections giving you the choice of four different display heights. The display can be rotated up to 270 degrees. The head of the display can tilt up to 35 degrees maximum. The combination of these features gives you twenty characters, the CD5220 Series can display 96 alphanumeric messages with 13 international characters. The CD5220 Series customer pole display uses an easy to connect RS-232C serial port connection with available communication speeds of 4800 or 9600 bps. The CD5220 Series pass-through function allows you to connect another serial device by sharing one single serial port on the host system. The CD5220 Series also offers a variety of emulation modes including Epson, Aedex, Emax, and Ultimate.

Full specifications (PDF)

Manufacturer part number: CD-5220CGSC12110-B

General Information

  • Product Type: Pole Display
  • Brand Name: Partner Tech
  • Manufacturer: Partner Tech USA
  • Product Model: CD-5220C
  • Product Name: CD-5220C Pole Display

Physical Characteristics

  • Color: Black
  • Weight (Approximate): 2 lb


  • Interfaces/Ports: RS-232 Serial

Display & Graphics

  • Number of Lines: 2
  • Dot Matrix Layout: 5 x 7
  • Character Width: 0.21"
  • Character Height: 0.35"
  • Display Color: Green Blue
  • Display Type: VFD
  • Number of Columns: 20
  • Character Pitch: 0.33"
  • Brightness: 700 Nit


  • Certifications & Standards:
    • FCC
    • CE
    • EMC
  • Additional Information: Base Type: Small Metal

Fonts & Emulation

  • Font Type: Alphanumeric


  • MTBF: 25000 Hour

Power Description

  • Input Voltage: 12 V DC
