Photo of Polycom 2200-07142-001 Polycom logo

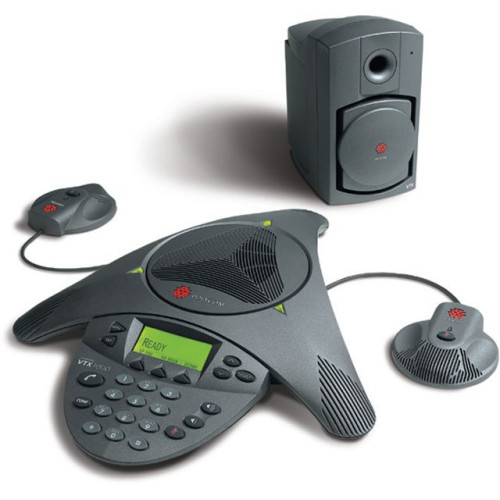

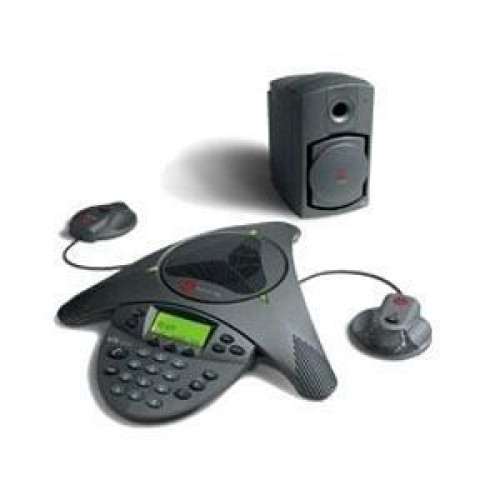

Polycom Sound Station VTX1000

Conference, Phone with vtx Wideband Voice and gain Controle with mic, With the SoundStation VTX 1000, conference call participants can speak at a normal, natural conversation level and be heard clearly from two-feet to 20-feet away from the microphone - even in large conference rooms. And, when two SoundStation VTX 1000 conference phones connect on a call, the phones automatically connect in VTX Wideband mode, resulting in extraordinary clarity

$1,079.68

Free Shipping

Ships Today



Polycom Sound Station VTX1000 Telecommunications Products

The Polycom Sound Station VTX1000 is truly a leap forward in voice conferencing technology. It"s the world"s first conference phone that automatically adapts to each meeting environment, providing high fidelity voice clarity for all participants. With the Sound Station VTX1000, conference call participants can speak at a normal, natural conversation level and be heard clearly from up to 20-feet away from the microphone, even in large conference rooms. And, when two Sound Station VTX1000 conference phones connect on opposite ends of a call, the phones automatically connect in Polycom HD Voice, resulting in extraordinary fidelity. No wonder Polycom is the #1 choice in conference phones, worldwide.

Full specifications (PDF)

Manufacturer part number: 2200-07142-001

General Information

  • Product Type: Conference Phone
  • Brand Name: Polycom
  • Manufacturer: Polycom, Inc
  • Product Model: VTX 1000
  • Product Name: Sound Station VTX 1000 Conference Phone

Technical Information

  • Number of Analog Phone Lines: 1
  • Total Number of Phone Lines: 1
  • Caller ID: Yes

Physical Characteristics

  • Form Factor: Desktop
  • Weight (Approximate): 1.75 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 1
  • Network (RJ-45): Yes
  • Phone Line (RJ-11): Yes
  • Number of Phone Line (RJ-11) Ports: 1

Other

  • Package Contents:
    • Tabletop console with integrated display and keypad
    • Power/network interface module
    • Sub woofer
    • Extension microphones (2)
    • User documentation (user guide, quick installation guide, registration card)
    • Cables: 2 Power cables (console, subwoofer)
    • 1 21-ft. (6.4m) console cable
    • 1 7-ft. (2.1m) telco cable
    • 2 7-ft. (2.1m) EX microphone cables
    • 1 10-ft. (3m) RCA subwoofer cable
    • Tabletop console with integrated display and keypad
    • Power/network interface module
    • Sub woofer
    • Extension microphones (2)
    • User documentation (user guide, quick installation guide, registration card)
    • Cables: 2 Power cables (console, subwoofer)
    • 1 21-ft. (6.4m) console cable
    • 1 7-ft. (2.1m) telco cable
    • 2 7-ft. (2.1m) EX microphone cables
    • 1 10-ft. (3m) RCA subwoofer cable
  • Certifications & Standards:
    • UL 1950
    • CSA C22.2, no. 950
    • EN6-950 - IEC60950AS/NZS3260 EMC:
    • FCC (47 CFR Part 15) Class B
    • ICES-003 Class B
    • EN55022 Class B
    • CISPR 22 Class B
    • AS/NZS 3548 Class B
    • VCCI Class B
    • EN50224
  • Additional Information:
    • Built-in investment protection
    • Acoustic Clarity Technology: Allows simultaneous natural conversation, the industry's best full duplex
    • Revolutionary voice quality and clarity from up to 20 feet away
    • Noise reduction technology automatically minimizes PC, projector, and HVAC sounds
    • Automatic mic selection only one mic is on at a time to remove in the well sound
    • Independent microphone, echo-cancelled channels that optimize sound
    • Extension mics provide even greater room coverage for larger rooms
    • Subwoofer for audio extension down to 80 Hz, which provides clearer lifelike sound
    • Selectable, downloadable ring tones
    • Console loudspeaker:
    • Frequency Response: 300 to 3300 Hz in narrow band mode, 260 to 7000 Hz in wideband mode
    • Volume: adjustable to 89 dB (peak) volume at 0.5 meters
    • Treble/bass controls: Adjustment range: 6 dB
    • Console Microphones:
    • 3 cardioid microphones 80 Hz - 14 kHz
    • Sub-woofer:
    • Frequency response: 80 to 300 Hz in wideband mode
    • Power: switchable 110/220 V, 50/60 Hz (100 V for Japan) includes country-specific AC cable
    • Interface Module:
    • Size 3.125 x 7.75 x 1.875 in (7.9 x 19.7 x 4.8 cm)
    • Weight 0.75 lbs (0.34 kg)
    • Audio Enhancements:
    • Automatic Gain Control (AGC)
    • Dynamic Noise Reduction
    • Gated microphones with intelligent microphone mixing
    • 80 Hz to 7 kHz VTX wideband audio
    • Auxiliary Audio:
    • Input Style: phono jack
    • Function: switchable between Polycom wireless mic/AUDIO IN/OFF
    • Softkey configurable setup menus
    • Output Style: phono jack
    • Function: switchable between subwoofer/ external PA/record out/OFF
    • Softkey configurable setup menus
    • Telco Interface:
    • Speech mode Bandwidth: 300 Hz to 3.3 kHz or 80 Hz to 7 kHz (point to- point)
    • Network requirements: compatible with standard PSTN and PBX networks, analog or G.711 encoded
    • Software Download protocol: V.34 compatible
    • Connection rates: to 33 Kbps, depending on line quality
    • Download server: Polycom download server
    • Recommended Room Conditions:
    • Reverberation time: <0.54 seconds
    • Noise level: <48 dBa

Controls/Indicators

  • Buttons & Keys Type:
    • Hold Button
    • Mute Button
    • On/Off Button
    • Redial Button
    • Volume Control

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Display & Graphics

  • Backlight: Yes
  • Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year
