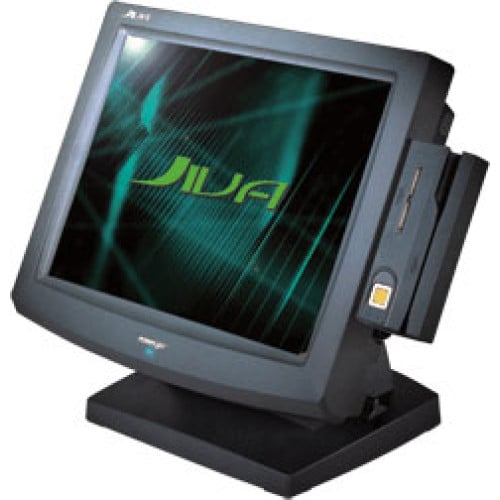

Photo of Posiflex JIVA5800
Posiflex logo

Posiflex JIVA5800 POS Touch Computer

Posiflex JIVA8000 A newer version of this item is available.
It is replaced by the Posiflex JIVA8000.
The Posiflex JIVA5800 Touch Terminal is a high-performance workstation which easily operates both packaged and custom-designed customer applications targeted toward the hospitality, retail and kiosk industries. The JIVA5800 terminal is capable of handling applications needing a high level of processing power. The JIVA5800 uses an Intel processor and supports embedded Windows CE and XP. The JIVA5800's space-saving footprint makes it ideal for virtually any location, including those with very close clearances.
JIVA5800 Options
Part # DescriptionAvailabilityPriceOrder
TP5815TAWXP-AT JIVA5800, 15" JIVA, 1G CPU, WXP, 2.5" 40G HDD, 1GB, ALL-IN-ONE Check Availability Call for Details
TP5815T8WXP-AT JIVA5800, 15 inch TFT Touch Terminal, C3 1 GHz CPU, 512MB DDR, Windows XP PRO, 40GB HDD, Resistive type touch sensor, Color: Charcoal Check Availability Call for Details
TP5815T4WXP-AT This part is replaced by KS6315T4WXP-AT.
JIVA5800, 15 inch Touch Terminal (1 GHz, 256MB DDR and Windows XP PRO)
See Replacement Call for Details
TP5815T4W2K-AT JIVA5800, 15 inch TFT Touch Terminal, C3 1 GHz CPU, 256MB DDR, Windows 2000, 40GB HDD, Resistive type touch sensor, Color: Charcoal Check Availability Call for Details
TP5815T4NOS-AT This part is replaced by TP8015T4NOS-AT-B.
JIVA5800, 15 inch TFT Touch Terminal, C3 1 GHz CPU, 256MB DDR, No Operating System, 40GB HDD, Resistive type touch sensor, Color: Charcoal
See Replacement Call for Details
TP5815R4W2K-1G This part is replaced by TP5815G4W2K-AT.
JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 256 MB, Windows 2000
See Replacement Call for Details
TP5815R4W2K JIVA5800, 15 Inch TFT Touch Terminal, C3 800 MHz, 256MB DDR RAM, Windows 2000, 40GB HDD, Resistive type touch sensor, Color: Charcoal Check Availability Call for Details
TP5815R4NOS-1G This part is replaced by TP5815G4NOS-AT.
JIVA5800, REFER TO TP5815G4NOS
See Replacement Call for Details
TP5815GAW2K-AT JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 1 GB, 20GB HD, Windows 2000. Check Availability Call for Details
TP5815G8WEP-AT This part is replaced by TP8015T8WEP-AT-B.
JIVA5800, 15 inch TFT Touch Terminal, C3 1GHz CPU, WEPOS 2.5 inch, 40GB HDD, 512MB RAM, Resistive type touch sensor, Color: Charcoal
See Replacement Call for Details
TP5815G4WXP-AT This part is replaced by TP5815T4WXP-AT.
JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 256 MB, Windows XP Pro. (formerly listed as TP5815R4WXP-1G)
See Replacement Call for Details
TP5815G4WXP JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 256 MB, Windows XP Pro Check Availability Call for Details
TP5815G4WEP-AT JIVA5800, 15 inch Touch Terminal (40GB HDD, Universal Base, 256MB RAM and WEPOS O/S) Check Availability Call for Details
TP5815G4W2K-AT JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 256 MB, 20GB HD, Windows 2000. Check Availability Call for Details
TP5815G4NOS-AT JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 256 MB, 20GB HD, No operating system. Check Availability Call for Details
TP5815G2WXP JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 128 MB, Windows XP Pro Check Availability Call for Details
TP5815G2W2K JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 128 MB, Windows 2000 Check Availability Call for Details
TP5815G2NOS JIVA5800, 15" Touch Terminal, 1.0 GHz processor, DDR 128 MB, no OS installed Check Availability Call for Details

Posiflex JIVA5800 Details

JIVA5800 Specifications

LCD Resolution 1024 x 768
Brightness 250 nit
Audio Line Output Standard
LCD Panel 15" TFT
CPU C3 800 MHz
Second Display Interfaces VGA
Memory DDR 266, SDRAM x 2 DIMM up to 1GB
Serial Port With +5VDC
4 available with PS/2 touch interface,
3 available with RS232 touch controller interface
Parallel port 1
CR Port 1 port controls 2 devices (under COM1)
USB Port 2
KB Port 1 x PS/2 type
Mouse Port 1 x PS/2 type
LAN Port 10/100 MHz base Ethernet
CD-ROM Port 1
HDD 20 GB up
FDD USB Interface
Compact Flash Port N/A
Internal UPS Yes (Battery Optional)
ON/OFF Control Software controlled for Mechanical ON/OFF or Mechanical ON / Software OFF
Touch Sensor Resistive
Tilt Adjustment From 17.5º to 87.5º
Power Wake up Through alarm/LAN/RS232 Modem
Mounting Option Table top or wall mounted or Space Pole
Power settings Standby Mode
Touch Control Function Emulate mouse left / right button (for WIN98 only),
double click and drag & drop
Touch Beep Controls Sound pitch adjustment, sound enable/disable by software
Power Supply Input 100~240V, output 12V/80W AC adaptor
Housing Color Charcoal
Storage Condition -20ºC ~ + 60ºC, 10%RH~80%RH; non-condensing, maximum web bulb 28.9ºC
Operation Condition 0ºC ~ + 40ºC, 20%RH~80%RH; non-condensing, maximum web bulb 26ºC
Dimension 375 (W) x 270 (D) x 275~360 (H) mm
OS Support Win98 / 2000 / XP Professional
Weight 7.8 kg (17.2 lbs)
Safety Certifications PSU:  UL/VDE/T mark,
Terminal: FCC, CE (meet IEC 1000-4-2 class A)
The Posiflex JIVA5800 is also known as the Posiflex Business Machines JIVA5800 .
