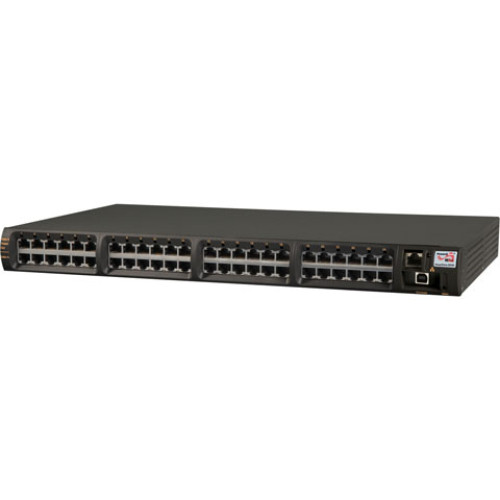

PowerDsine 9000G High Power Family Data Networking
Part #: PD-9024G/ACDC/M | SKU: POW82584

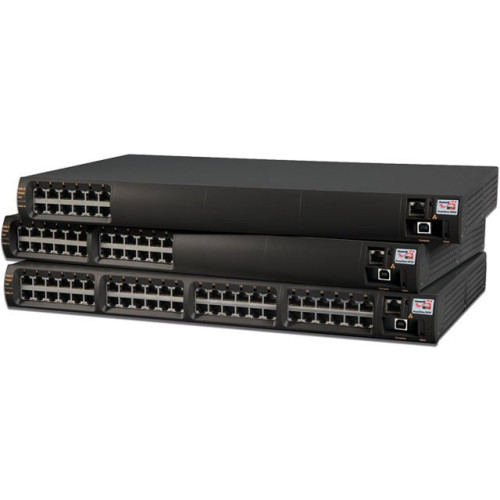

The PowerDsine 9000G High Power Family is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. The PowerDsine 9000G High Power Family includes 6, 12 and 24 port models, which are backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points. With the midspan’s plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network. For secure remote management, all PowerDsine 9000G models include an option for PowerView Pro management software.

PowerDsine 9000G High Power Family Data Networking

Part Details: 9000G High Power Family, PD-9024G/ACDC/M (24-Port 450W, GB POE Midspan, High-Power, 36WT/Port, Managed, DC and AC Input)

Additional Information

Manufacturer PowerDsine
Model Name 9000G High Power Family

Technical Information

  • Compatibility:
    • Access Points
    • PTZ and Dome Network Cameras
    • Video Phones
    • Thin Clients
  • Input Voltage: 240 V AC
  • Output Power:
    • 36 W Per Port
    • 450 W Total
  • Output Voltage: 55 V DC

General Information

  • Product Type: PoE Injector Hub
  • Product Series: 9000G
  • Brand Name: PowerDsine
  • Manufacturer: Microsemi Corporation
  • Product Model: PD-9024G/ACDC/M
  • Product Name: PD-9024G/ACDC/M 24-port Power over Ethernet Midspan

Physical Characteristics

  • Weight (Approximate): 14.33 lb

Interfaces/Ports

  • Output Ports: 24 x RJ-45 10/100/1000Base-T

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IEEE 802.3af compliant
    • IEEE 802.3at compliant
    • VCCI
    • CE
    • C-Tick
    • Electromagnetic Emissions & Immunity:
    • FCC Part 15, Class B with FTP cabling
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI
    • Safty Approvals:
    • UL/cUL Per IEC60950-1
    • GS Mark Per IEC60950-1
    • IEEE 802.3af compliant
    • IEEE 802.3at compliant
    • VCCI
    • CE
    • C-Tick
    • Electromagnetic Emissions & Immunity:
    • FCC Part 15, Class B with FTP cabling
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI
    • Safty Approvals:
    • UL/cUL Per IEC60950-1
    • GS Mark Per IEC60950-1
  • Compatibility:
    • Access Points
    • PTZ and Dome Network Cameras
    • Video Phones
    • Thin Clients

Power Description

  • Frequency:
    • 50 Hz
    • 60 Hz
  • Input Current:
    • 5.50 A @ 110 V AC
    • 2.75 A @ 220 V AC
  • Input Voltage: 240 V AC
  • Output Power:
    • 36 W Per Port
    • 450 W Total
  • Output Voltage: 55 V DC

Warranty

  • Limited Warranty: Lifetime
