Photo of Primera LX 810
Primera logo

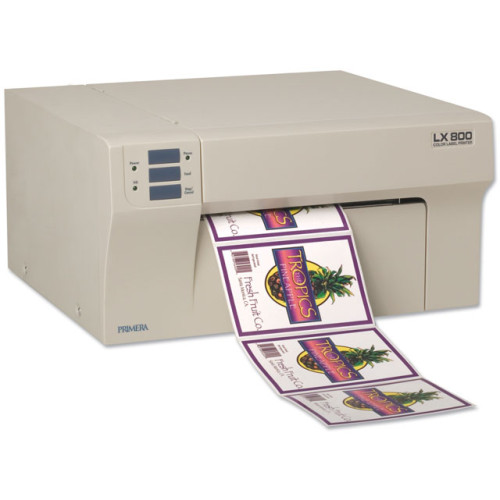

Primera LX 810 Color Label Printer

The Primera LX 810 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Primera LX 810 prints color labels at an amazing 4800 dpi! The LX 810 is perfect for printing full-color photos, illustrations, graphics and text along with bar codes on product labels, display labels, inventory tags and more. The LX 810 can handle labels between 0.75" and 8.25" wide and up to 24" long. The LX 810 features inkjet printing at 2"/second for black and 1.5"/second in color and comes with a USB 2.0 interface standard. Both pigment-based (for printing on virtually all gloss and semi-gloss label and tag stocks) and dye-based (for improved bar code printing and water/UV resistance) ink cartridges are supported. The Primera LX 810 also comes with NiceLabel design software and Windows drivers.
LX 810 Options
Part # DescriptionAvailabilityPriceOrder
74252 LX 810, USB 2.0 interface and cable, dye-based black and color ink cartridges, 6"x4" high-gloss label stock starter roll, NiceLabel design software, drivers CD and 100-240 VAC power supply with European plug. Check Availability Call for Details
74251 This part is replaced by 074411.
LX 810, USB 2.0 interface and cable, dye-based black and color ink cartridges, 6"x4" high-gloss label stock starter roll, NiceLabel design software, drivers CD and 100-240 VAC power supply with US plug.
See Replacement Call for Details

Primera LX 810 Details

Print Method: Inkjet

Print Resolutions:
4800 x 1200 dpi, 2400 x 1200 dpi, 600 x 600 dpi

Print Speeds:
Approximately 2" (51mm) per second for black
Approximately 1.5" (38mm) per second for color + black
Approximately 10" per second feed rate

Ink Cartridges:
#53335 Color (CMY)
#53336 Black Dye-Based (Kd)
#53020 Black Pigment-Based (Kp)

Colors:
16.7 million

Color Matching:
Z-Color Color Matching Software

Max. Print Width:
8" (203mm)

Max.Media Width:
8.25" (210mm)

Min.Media Width:
1.5" (38mm)

Max. Print Length:
17" (432mm)

Min.Media Length:
.75" (19mm)

Media Types:
Roll-fed pressure-sensitive labels, roll-fed tags

Media Sensing:
Moveable see-through sensor for die-cut labels and reflective for tags with black stripe sensing

Supply Roll:
6" (152mm) maximum diameter on 3" (76mm) core

Ink Level Warning:
Calculates actual number of prints remaining based upon ink usage of graphics being printed (patent-pending)

Indicator Lights:
Power, Pause, Ink

Controls:
Pause, Feed, Stop/Cancel

Operating Systems:
Windows XP/2000

Data Interface:
USB 2.0

Minimum System Requirements:
Pentium IV computer or better, 512MB RAM, 5GB free hard drive space, USB 2.0 port

Label Design Software:
NiceLabel SE Primera Edition included. Can also be used with most other popular Windows-based label design software programs.

Electrical Rating:
12VDC, 5.0A

Power Requirements:
100-240VAC, 50/60 Hz, 60 watts

Certifications:
UL, UL-C, CE, FCC Class B

Weight:
29 lbs. (13.2 Kg)

Dimensions:
17"W x 9.1"H x 15.5"D
(432mmW x 231mmH x 394mmD)

The Primera LX 810 is also known as the Primera Technology LX 810 .
