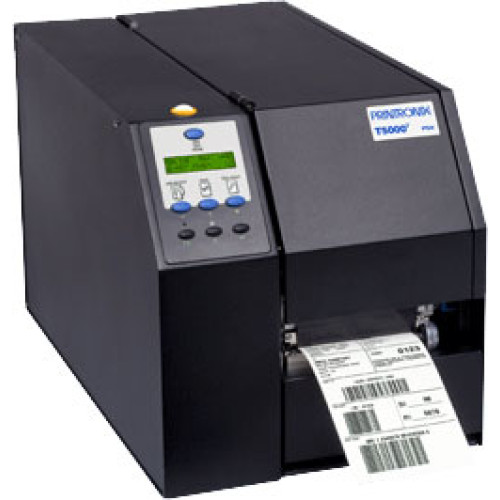

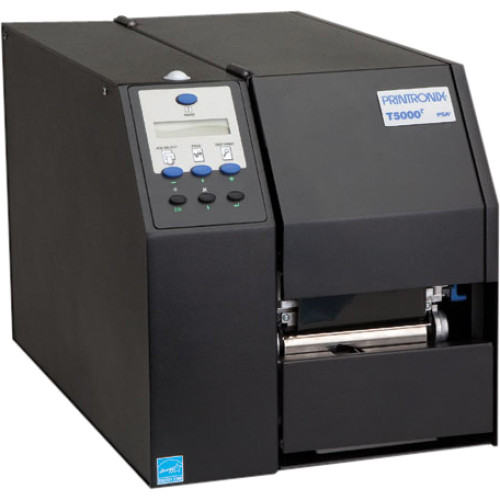

T52X6-0100-210 - Printronix T5000e Thermal Bar code Printer

Designed specifically for the high-volume applications found in distribution centers and factory floors, the T5000e Thermal aluminum die-cast design that dampens vibration and maintains precise printer alignment. A unique dual-motor driven ribbon system eliminates clutch replacement and greatly reduces the risk of ribbon wrinkle for superior print quality. Also features an exclusive snap-in printhead that reduces service calls by allowing operator to easily change printheads and change from 203 dpi to 300 DPI printing without firmware or software changes.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
T52X6-0100-210 T5000e, S 6 203 dpi NIC, REW ENERGYSTAR W ODV

T52X6-0100-210 Details

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • AUSTPORT
    • Aztec Code
    • BC35
    • BC412
    • Codabar
    • Code 11
    • Code 35
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • EAN-8
    • EAN-13
    • FIM
    • German I-2/5
    • GS1 DataBar
    • GS1-128
    • GS1 DataMatrix
    • IMB
    • Interleaved 2 of 5
    • ITF-14
    • Matrix
    • Maxi Code
    • MSI
    • PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • PostBar
    • ROYALBAR
    • Telepen
    • UPC-A
    • UPC-E
    • UPC-E0
    • UPCSHIP
    • UPS11

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: T5000r
  • Brand Name: Printronix
  • Manufacturer: Printronix, Inc
  • Product Model: T5206r
  • Product Name: SmartLine T5206r Label Printer
  • Product Line: SmartLine

Physical Characteristics

  • Height: 13"
  • Width: 13.4"
  • Depth: 20.5"
  • Form Factor: Desktop
  • Weight (Approximate): 40 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 6.80"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Label
    • Tag
    • Ticket
    • Plain Paper
    • Film
    • Synthetic Media
  • Media Thickness: 10 mil
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Certifications & Standards:
    • IEC60950-2
    • EN55022 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • FCC Part 15 Class B

Fonts & Emulation

  • Language Emulation:
    • XML
    • PGL
    • ZGL
    • TGL
    • IGL
    • STGL
    • DGL
    • IEGL
    • MGL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Operating Power Consumption: 150 W
  • Power Source: AC Supply

Memory

  • Standard Memory: 64 MB
  • Memory Technology: SDRAM
  • Flash Memory: 16 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

The Printronix T52X6-0100-210 is also known as PTX-T52X6-0100-210 or T52X60100210 .
