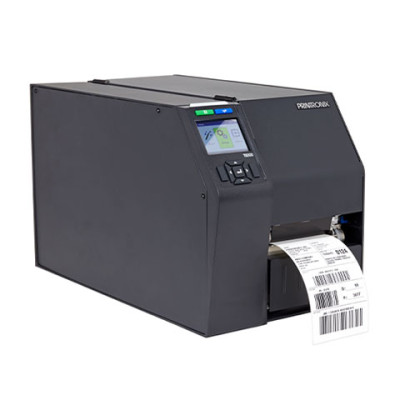

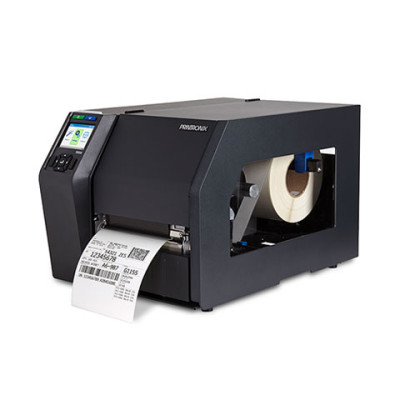

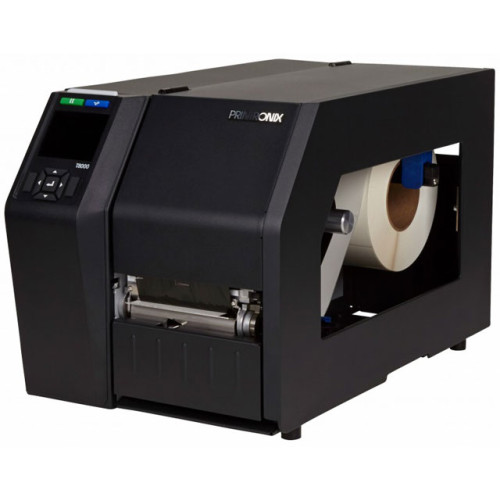

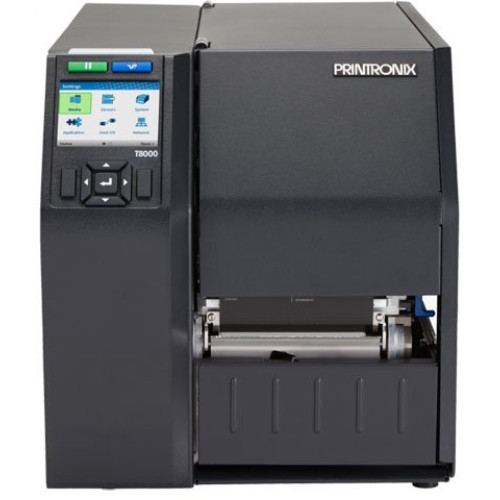

Printronix T8000 Printer

The T8000 is the premier high-end thermal printer. With unmatched industrial performance, easy to use, and 100% verifiable output, the T8000 exceeds the requirements of the most demanding mission critical manufacturing and distribution operations.
Questions?
1-888-875-7170
We respond to every email

Model

T8000 Options
Part # DescriptionAvailabilityPriceOrder
T82X4-1100-0 T8204, Thermal transfer Printer (4" wide, 203 dpi) Ships Free Today $2,208.75
Retail $2945
Save 25%
T82X4-1100-1 T8204, Thermal transfer Printer (4" wide, 203 dpi) with ODV Ships Free Today $3,705.00
Retail $4940
Save 25%
T82X4-1101-0 T8204, Thermal transfer Printer (4" wide, 203 dpi), Rewind/Peel Ships Free Today $2,505.00
Retail $3340
Save 25%
T82X4-1104-0 T8204, Thermal transfer Printer (4"wide, 203 dpi), Cutter with Tray
Ships Free in 3-5 Days
$2,880.00
Retail $3840
Save 25%
T82X6-1100-0 T8206, Thermal transfer Printer (6" wide, 203 dpi) Ships Free Today $3,933.75
Retail $5245
Save 25%
T82X8-1100-0 T8208, Thermal transfer Printer (8" wide, 203 dpi) Ships Free Today $5,433.75
Retail $7245
Save 25%
T82X8-1400-0 T8208, Thermal transfer Printer (8"wide, 203 dpi), PostScript/PDF417
Ships Free in 3-5 Days
$5,583.75
Retail $7445
Save 25%
T83X4-1100-0 T8304, Thermal transfer Printer (4" wide, 300 dpi) Ships Free Today $2,358.75
Retail $3145
Save 25%
T83X4-1100-1 T8304, Thermal transfer Printer (4" wide, 300 dpi) with ODV Ships Free Today $3,855.00
Retail $5140
Save 25%
T83X4-1101-0 T8304, Thermal transfer Printer (4" wide, 300 dpi), Rewind/Peel
Ships Free in 3-5 Days
$2,655.00
Retail $3540
Save 25%
T83X4-1104-0 T8304, Thermal transfer Printer (4"wide, 300 dpi), Cutter with Tray Ships Free Today $3,030.00
Retail $4040
Save 25%
T83X6-1100-0 T8306, Thermal transfer Printer (6" wide, 300 dpi) Ships Free Today $4,083.75
Retail $5445
Save 25%
T83X8-1100-0 T8308, Thermal transfer Printer (8" wide, 300 dpi) Ships Free Today $5,583.75
Retail $7445
Save 25%
T83X8-1400-0 T8308, Thermal transfer Printer (8"wide, 300 dpi), PostScript/PDF417
Ships Free in 3-5 Days
$5,733.75
Retail $7645
Save 25%

Printronix T8000 Details

PRODUCT BENEFITS

  • High performance ARM Cortex-A9
  • Available in 203 DPI and 300 DPI
  • 4”, 6”, and 8” model configurations
  • Die-cast aluminum frame w/metal doors
  • Dual motor ribbon drive system
  • Transfer and direct printing
  • 512MB RAM / 128 Flash Memory
  • 4-32 GB SD flash memory card capability
  • Premium Asian and Andale font support
  • ENERGY STAR Certified

PRINTER SPECIFICATIONS

  • Max Print Speed (4”/6”/8”): 14/12/10 IPS @ 203 DPI
  • Print Method: Transfer and Direct
  • Resolution: 203 DPI / 300 DPI
  • Max. Print Width: 4.1” (104mm)/6.6” (168mm)/8.5” (216mm)
  • Printer Memory: 512MB RAM / 128MB Flash

MEDIA SPECIFICATIONS

  • Media Type: Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
  • Min. Media Width: (4”/6”/8”): 1” (25.4mm)/2” (50.8mm)/3” (76.2mm)
  • Max. Media Width: 4.5” (114.3mm)/6.8” (172.7mm)/8.75” (222.2mm)
  • Min. Media Length: 0.25” / 1.0” (Continuous/Tear-Off)/0.5” (Peel-Off)
  • Max. Media Length: Up to 99” (251.46cm)
  • Media Thickness: 0.0635mm (0.0025”) to 0.254mm (0.010”)
  • Media Roll Core Diameter: 1.5” (37.5mm) to 3.0” (76mm)
  • Max. Media Roll Diameter: 8.0” (209mm)
  • Media Sensing: Gap, Mark, Advanced Gap, Advanced Notch

RIBBON SPECIFICATIONS

  • Ribbon Type: Wax, Wax/Resin, Resin
  • Min. Ribbon Width: (4”/6”/8”) 1” (25.4mm)/2” (50.8mm)/3” (76.2mm)
  • Max. Ribbon Width: (4”/6”/8”) 4.5” (114.3mm)/6.8” (172.7mm)/8.75” (222.2mm)
  • Max. Ribbon Length: 625 Meters

PHYSICAL CHARACTERISTICS

  • Width (4″/6″/8″): 11.7″ (297.2mm) / 13.4″ (340.4mm) / 15.4″ (391.2mm)
  • Height (4″/6″/8″): 13″ (330.2mm) / 13″ (330.2mm) / 13″ (330.2mm)
  • Depth (4″/6″/8″): 20.5″ (520.7mm) /20.5″ (520.7mm) / 20.5″ (520.7mm)
  • Printer Weight (4″/6″/8″): 37 lbs. (16.7Kg.) / 40 lbs. (18.1 Kg.) / 43 lbs. (19.5Kg.)
  • Shipping Weight (4″/6″/8″): 46 lbs. (20.8Kg.) / 49 lbs. (22.2 Kg.) / 52 lbs. (23.6Kg.)

PROGRAMMING PRINTER LANGUAGES

  • IGP Languages: PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL
  • Line Printer Plus Languages: P-Series + XQ, Proprinter, Serial Matrix, Epson
  • Job Control Languages: PJL, XML, and PTX-SETUP
  • Optional Languages: IPDS, TN5250/TN3270, PDF Level 1.7, Postscript Level 3

COMMUNICATION AND CONNECTIVITY/INTERFACE

  • Standard Interface I/O: Serial RS232, USB, and Ethernet 10/100Base T
  • Optional Interface I/O: Parallel, WiFi (802.11a/b/g/n), GPIO
  • WiFi Security Protocol: WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) and Enterprise (AES CCMP), EAP-TLS, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1, EAP-FAST, EAP-MD5

BARCODE VALIDATION

  • Online Data Validator (ODV) – Validates, Grade, Report, and Overstrike barcodes
    Supports 1D Barcodes

MEDIA HANDLING MODES

  • Standard: Continuous, Tear-Off Strip, Tear-Off
  • Options: Peel-Off, Cut, and Rewind

OPERATING ENVIRONMENT

  • Operating Temperature (Direct Thermal w/o accessories): 23 to 104 F (-5 to 40 C)
  • Operating Temperature (Thermal Transfer or Direct Thermal w/ accessories): 40 to 104 F (5 to 40 C)
  • Operating Humidity Range: 20 to 85% Non-Condensing
  • Storage Temperature: -23 to 140 deg. F, (-5 to 60 deg. C)
  • Storage Humidity Range: 5% to 85% Non-condensing

POWER REQUIREMENT

  • Line Input: Auto Range 90 – 264 VAC (48 – 62 Hz)

REGULATORY COMPLIANCES

  • Emissions: FCC, CE, CCC
  • Safety: cTUVus, CE, EAC, SABS, RCM, CCC, KCC, BSMI, S-MARK, NOM
  • Environmental: RoHS, WEEE, Energy Star

BARCODE SYMBOLOGIES

  • 1D Barcodes: BC-412, Code 11, Code 39, Code 35, Code 93, Codabar,
    Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5,
    German I-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E,
    UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET,
    4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN,
    PLANET, USPS Intelligent Mail, LOGMARS
  • 2D Barcodes: PDF-417, MicroPDF-417, Maxicode, DataMatrix,
    QR Codes, Aztec, GS1 Databar (RSS-14)

FONT, GRAPHIC SUPPORT

  • Graphic Formats: PCX, TIFF, BMP, PNG
  • Font Technologies: Intellifont, TrueType, Unicode
  • Standard Fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed
  • Asian Fonts (Optional SD card): Simplified Chinese, Japanese, and Korean
  • Andale Fonts (Optional SD card): Simplified Chinese, Traditional Chinese, Korean, Japanese
  • PDF/ PostScript Level 3: 35 Fonts

REMOTE MANAGEMENT SOFTWARE

  • PrintNet Enterprise Suite: Enterprise grade remove management solution

OPTIONS AND ACCESSORIES

  • WiFi 802.11 a/b/g/n
  • Rewind with Peel & Present 4”/6”/8”
  • Parallel Port Card
  • Heavy Duty Cutter 4”/6”/8”
  • GPIO
  • TN5250/3270
  • Premium Asian Font Cards
  • PostScript/PDF
  • Premium Andale Font Cards
  • IPDS
  • QCMC (SD Quick Change Memory Card)
  • Online Data Validator (ODV)
