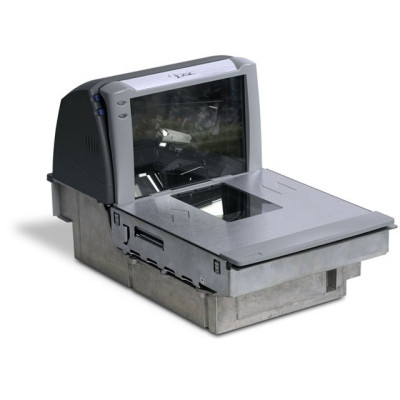

Photo of PSC Magellan 8500 Series
PSC logo

PSC Magellan 8500 Series Scanner

This product is discontinued and replaced by the
Datalogic Magellan 8500 Omega Datalogic
Magellan 8500 Omega
The PSC Magellan 8500 Series is the highest performing scanner/scanner-scale available for large volume point-of-sale applications. It is the first scanner to use PSC's new, ground breaking SurroundScan technology to aggressively scan all 6 sides of an item. Competitive dual-plane scanners can only read 4 or 5 sides at once but the PSC Magellan 8500 Series can simultaneously read the bottom, top, and all four sides of store items. With SurroundScan, a bar code in virtually any orientation can be read with the first pass.
Magellan 8500 Series Options
Part # DescriptionAvailabilityPriceOrder
MGS85-121A Magellan 8500 Series, 8502 Scanner-Scale, Long Scanner, Sapphire Glass, Multi-Interface, First Strike Software, No Display, No Cable and No Power supply Check Availability Call for Details
MGN85-121 Magellan 8500 Series, 8500 Scanner Only, WRG Long Top, No Interface, No Power supply and No Cable Check Availability Call for Details
09501-0310-00000 Magellan 8500 Series, 8500 Scanner Only, Short Top Check Availability Call for Details
09501-0112-01030 Magellan 8500 Series, 8501 Scanner Only, Long Top, RS-232 Interface, Standard Power supply with Cord and Cable 8-0227-04 Check Availability Call for Details
09403-02102-03010A Magellan 8500 Series, 8502 Scanner-Scale, Long Scanner, Sapphire Top, Power supply with Cord, Single RS-232 Interface, Cable 8-0227-04 9-Pin D, RSS and No Display Check Availability Call for Details
09403-02102-01020A Magellan 8500 Series, 8502 Scanner-Scale, Long Scanner, Sapphire Top, Power supply and Cables 8-0227-05 and 8-0229-04 Check Availability Call for Details
09403-02102-01000A Magellan 8500 Series, 8502 Scanner-Scale, Long Scanner, Sapphire Top and Power supply Check Availability Call for Details
09403-02100-00000 Magellan 8500 Series, 8502 Scanner-Scale, Long Top, Sapphire Top, No Cable and No Power supply Check Availability Call for Details
09401-02122-04020A Magellan 8500 Series, 8502 Scanner-Scale, LLT Top, 22 inch Display and IBM Port 9B Check Availability Call for Details
09401-02112-04020 Magellan 8500 Series, 8500 Scanner-Scale Sapphire glass top, CONN with IBM 9B Check Availability Call for Details
09401-02112-03010A Magellan 8500 Series, 8502 Scanner-Scale, Sapphire Top, 8 inch Display, US Standard Power supply, Power cord, Serial Cable and RSS Check Availability Call for Details
09401-02112-03010 Magellan 8500 Series, 8502 Scanner, Single RS-232 LLT Display, P/W Cable 8022704 Check Availability Call for Details
09401-01112-04020A Magellan 8500 Series, 8502 Scanner-Scale, RSS-14 Reduced Space Symbology, 8 inch Display, WRG Long Top, 9 Port, Standard Power supply with Cord, IBM Interface and Cable 8-0224-02 Check Availability Call for Details
09401-01112-01050A Magellan 8500 Series, 8502 Scanner-Scale, Long Scanner, WRG Top, 8 in. Display, Dual RS-232 and RSS Check Availability Call for Details
09401-01112-01050 Magellan 8500 Series, 8502 Scanner-Scale, 8 inch Display, RS-232 Dual Interface, WRG Long Top, Standard Power supply and Cord, with Cables 8-0227-02 and 8-0229-05 Check Availability Call for Details
09401-01112-01000A Magellan 8500 Series, 8502 Scanner-Scale, 8 inch Display, RS-232 Dual Interface, WRG Long Top, Standard Power supply with Cord and No Cables Check Availability Call for Details
09401-01111-0100 Magellan 8500 Series, 8502 Scanner-Scale, DLC Glass and 8 inch Display Check Availability Call for Details

PSC Magellan 8500 Series Details

Magellan 8500 Series Features

  • SurroundScan® 3D Scanning™ Technology
  • Enhanced All-Weighs™ Platter
  • FirstStrike® Advanced Decoding Software
  • Multiple interface solution supports all popular host interfaces
  • Optional Productivity Index Reporting™ (PIR) and Cashier Training™ software
  • Flash memory for easy, low cost upgrades
  • Powered auxiliary RS232 port for easy integration of a handheld scanner
  • Optional EAS functionality
  • Configurable sleep and wake up mode
  • 2005 Sunrise Compliant

The Premier Productivity Tool For High Volume POS
The Magellan 8500 Series is the highest performing scanner/scanner-scale available for large volume point-of-sale applications. It is the first scanner to use PSC's new, ground breaking SurroundScan technology to aggressively scan all 6 sides of an item. Competitive dual-plane scanners can only read 4 or 5 sides at once but the Magellan 8500 Series can simultaneously read the bottom, top, and all four sides of store items. With SurroundScan, a barcode in virtually any orientation can be read with the first pass. It has never been easier, faster, or more ergonomic to scan at the POS!

The Magellan 8500 Series also incorporates FirstStrike®, PSC's most advanced decoding software. It enables the reading of torn, poorly printed, and disfigured labels of all types. FirstStrike also supports all of the most popular symbologies, including Reduced Space Symbology (RSS) and is able to autodiscriminate all supported symbologies for added flexibility.

Smart Technology For Your Business
The Magellan 8500 Series has a powered auxiliary RS232 port for integrating a PSC handheld scanner for those large or heavy items that are often left in the shopping cart. This port can also be used to update the scanner's software in flash memory. Additionally, the Magellan 8500 Series can be equipped for full electronic article surveillance (EAS) functionality, including Interlock, for one step scanning and security tag deactivation.

To add even more value to the POS environment, the Magellan 8500 Series features optional productivity enhancement software. One application, Productivity Index Reporting™ (PIR), will automatically monitor the barcodes being scanned and will alert management to items that are consistently slowing down the checkout process. Another application, Cashier Training™, is designed to teach user's faster, more ergonomic scanning techniques.

Seamless Integration
Since the Magellan 8500 Series is from PSC you can count on easy installation and years of worry free operation. The Magellan 8500 Series has the same footprint as the original Magellan SL® (20.0” x 11.5” / 50.8 x 29.2 cm) so it will integrate easily into both new and existing point-of-sale configurations. It also supports all of the most popular host terminal interfaces right out of the box, including RS232, IBM 46XX, and IBM Power Plus USB. In addition, the Magellan 8500 Series is compatible with OPOS and JavaPOS systems allowing for even greater installation flexibility at the point-of-sale.

Magellan 8500 Series Specifications

Mechanical

Length & Weight

  • Model 8500 (short scanner) 16.5" / 41.9 cm & 18.0 lbs. / 8.2 kg
  • Model 8501 (long scanner) 20.0" / 50.8 cm & 20.0 lbs. / 9.1 kg
  • Model 8502 (long scanner/scale) 20.0" / 50.8 cm & 26.0 lbs. / 11.8 kg

Width

  • 11.5" / 29.2 cm

Depth (below counter)

  • 5.0" / 12.7 cm

Height (above counter)

  • 7.0" / 17.8 cm

Scale Capacities

  • Capacity: 30.0 lbs. / 9.99 kg or 15 kg (host dependent)
  • Minimum increment:.01 lb. / 0.005 kg
  • Vibration immunity:4 programmable filter settings
  • Maximum static weight: 150 lbs. / 68 kg
  • Adjustments required: Calibration only

Optical

Scan lines

  • 64

Motor speed

  • 6,000 rpm

Scan rate

  • 6,400 lines/sec.

Scan zone

  • 360° x 2

Sides read

  • 6

Read height

  • 6.0" / 15.2 cm

Environmental

Temperature rating

  • Operating: 50° to 104° F / 10° to 40° C
  • Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

  • 5 to 95% NC

Electrical

AC Power requirements

  • 100-250 VAC, 50-60 Hz
  • 9 Watts (nominal), 17 Watts (maximum), 4 Watts (sleep mode)

Decoding Capability

The Magellan 8500 Series decodes and autodiscriminates all of the following symbologies:

  • UPC Versions A & E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Reduced Space Symbology (RSS-14, expanded and stacked)
  • EAN 8, 13
  • JAN 8, 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Code 39 (with full ASCII)
  • Code 128
  • Code 93
  • I 2 of 5
  • Italian Pharmacode
  • Codabar/NW7
  • MSI/Plessey

Communications

Host

  • All Magellan® 8500 models support – IBM 46XX, RS232, and IBM USB

Other

  • RS232 handheld scanner port; scale host port; remote scale display port
  • EAS interlock port

Safety / Regulatory

Electrical

  • Resolution No. 92/98 (Argentina)
  • AS 3260 (Australia)
  • CSA 60950 (Canada)
  • EN60 950 (TÜV Europe)
  • MITI T-Mark (Japan)
  • UL 60950 (USA)

Emissions

  • FCC part 15 subpart j, Class A (USA)
  • AS/NZS 3548 (Australia/New Zealand)
  • ICES-0003 (Canada)
  • EN 55022-B (Europe)
  • VCCI-B (Japan)
  • CISPR 22-B

Laser safety

  • Class IIa Laser Product (CAUTION: Laser Light – do not stare into beam)
  • IEC 825 Class 1, EN60 825 Class 1 (Europe)

Weights and measures

  • Australia
  • Canada
  • Mexico
  • New Zealand
  • Puerto Rico
  • USA (NIST Handbook 44)

Other

EAS compatability

  • Integrated EAS hardware will work with Counterpoint IV, V, VI, and VII models available from Checkpoint Systems.
  • Good read acknowledgement with Sensormatic.
