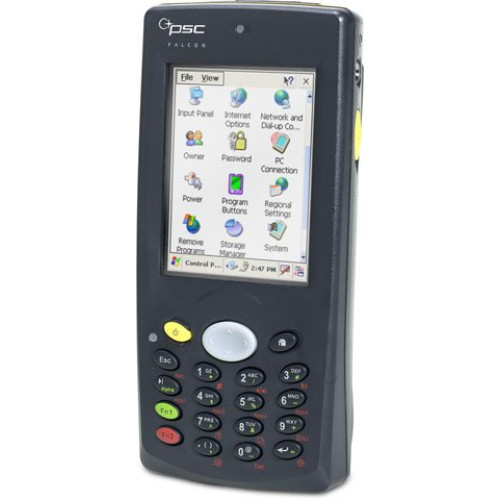

4220-0002 - PSC Falcon 4220 Hand Held Computer

The PSC Falcon 4220 is the latest PDA from PSC, combining a compact form with the flexibility of Microsoft CE.NET. The Falcon 4220 is designed for applications where performance and durability are required in a handheld device. The PSC Falcon 4220 provides you with the power and flexibility to deploy sophisticated mobile applications in your enterprise.

Part # Description Availability Price Order
4220-0002 Falcon 4220, Batch Portable Data Terminal (with Linear Imager). Order cradle, cables & power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

4220-0002 Details

Technical Information

  • Operating System: Windows CE .NET
  • Processor: Intel XScale 400MHz
  • Data Collection Type: Batch
  • Scanner Type: Imager Standard Range
  • Symbologies Supported:
    • UPC-E
    • UCC/EAN 128
    • EAN-8
    • JAN-8
    • EAN-13
    • UPC-A
    • IATA-25
    • ISBN
    • Codabar (NW7)
    • Matrix 2 of 5
    • MSI/PLESSEY
    • Korea Code 35
    • Italian Pharmacode
    • Industrial 2 of 5
    • Code 11
    • Code 32
    • Code 39
    • Code 93
    • Code 128
    • Interleaved 2 of 5
    • Code 4
    • China Post
    • Datalogic 25

General Information

  • Manufacturer: PSC Inc.
  • Product Line: Falcon
  • Product Name: Falcon 4220 Handheld Terminal

Physical Characteristics

  • Display: 3.5" Color - Transflective TFT LCD
  • Display Resolution: 240 x 320 Graphic
  • User Accessible Expansion Slot:
    • CF Card Type 2
    • SD Card Slot
  • Keyboard: 17 Key Navigational Integrated
  • Battery Capacity: 1800 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.3" (33mm) x 3.1" (79mm) x 6.6" (168mm)
  • Weight: 12.7 oz - With battery

Agency Approvals

  • Agency Approvals:
    • EN60950
    • UL60950
    • CSA 60950
    • EN60950
    • UL60950-1
    • IATA/UN
    • FCC Part 15 - B
    • VCCI
    • CISPR 22
    • FCC Part 15 - C
    • R&TTE
    • IC
    • IDA
    • Class 1 LED (Europe)
    • CDRH Class II
    • IEC 60825-1, Class 2

Other

  • Package Contents:
    • Falcon 4220 Handheld Terminal
    • Battery
    • Power Supply
    • USB Cable
    • Headphones
    • US Power Cord
    • Headphones
    • Falcon Desktop Utility (FDU) for security & configuration
    • Falcon Management Utility (FMU) for remote device managment & software distributions

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Drop Spec: 4' To Concrete Multiple

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
4220-USB-STARTER Datalogic Falcon 4220 USB Starter Kit. Includes everything you need to run your Falcon 4220: charging/communications cradle and USB cable. Ships Free Today Call for Details

The PSC 4220-0002 is also known as PSC-42200002 or 42200002 .
