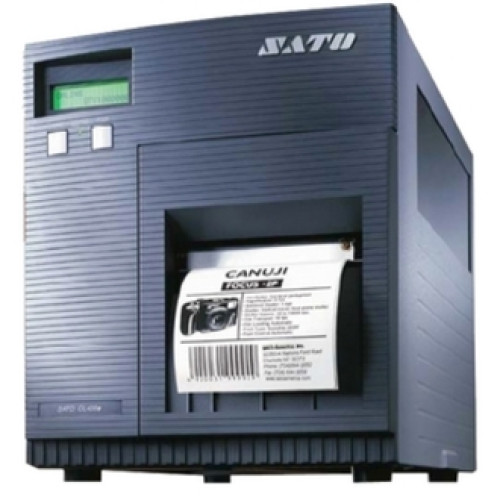

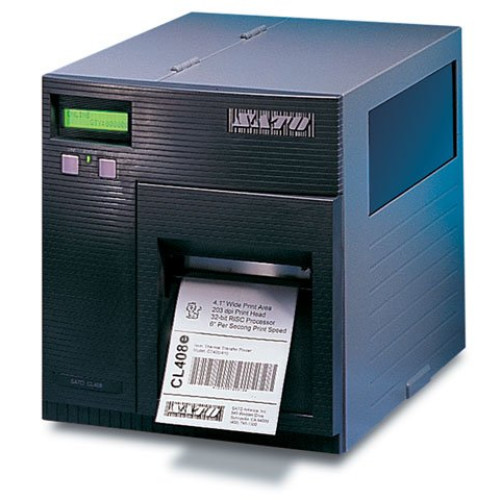

W00409111 - SATO CL408 e Bar code Printer

For advanced technology and high-speed performance the CL408 e printers have no match in the industry. Built in the tradition of SATO's rugged dependability the CL408 e printers are based on RISC processors delivering high-quality images at high speeds.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
W00409111 CL408 e, Thermal transfer, 203 dpi, 6 ips, 4.1" print width, parallel interface, 16MB RAM, 2MB Flash. Includes cutter & US power cord. Order cables separately. See accessories.
Information:   |  Download SATO CL408 e driver  |  Specifications  |  SATO's CL408 e page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  SATO CL408 e service contract  |
Supplies:   |  SATO CL408 e Label  |  SATO CL408 e Ribbon  |  SATO CL408 e Print head  |

W00409111 Details

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.40"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • ITF-14
    • UCC/EAN 128
    • Code 128
    • Interleaved 2 of 5
    • Code 39
    • RSS
    • POSTNET
    • EAN-13
    • EAN-8
    • Code 93
    • MSI
    • Codabar
    • Bookland
    • Matrix 25
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: e Series
  • Brand Name: Sato
  • Manufacturer: Sato Corporation
  • Product Model: M5900RVe
  • Product Name: M5900RVe Thermal Label Printer

Physical Characteristics

  • Height: 11.2"
  • Width: 10.3"
  • Depth: 12.7"

Interfaces/Ports

  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 5.15"
  • Maximum Label Length: 49.20"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Synthetic Media
    • Tag Stock
    • Direct Thermal Label
    • Thermal Transfer Label
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 6"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • CE
    • UL
    • CSA
    • CCC
    • TUV
    • FCC Class B
  • Additional Information:
    • Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary
    • Sensing:
    • Adjustable transmissive sensor for gap
    • Reflective sensor for black mark
    • Automatic, programmable top of form
    • Ribbon-out sensor

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Memory

  • Standard Memory: 18 MB
  • Flash Memory: 2 MB

Warranty

  • Limited Warranty: 1 Year
Part # Description Availability Price Order
53S001016-R SATO Label, 4" x 6" Thermal transfer paper label. 1000 labels/roll, single roll. Also available as a case (Part# 53S001016). Ships Today $15.20
53S001016 SATO Label, 4" x 6" Thermal transfer paper label. 1000 labels/roll, 4 roll case. Also available as a roll (Part# 53S001016-R). Ships Today $60.90
Retail $75.24
Save 19%
53S001006 SATO Label, 3" x 2" Thermal transfer paper label. 3000 labels/roll, 4 roll case. Also available as a roll (Part# 53S001006-R). Ships Today $61.46
53S001005 SATO Label, 3" x 1" Thermal transfer paper label. 5800 labels/roll, 4 roll case.
Ships in 3-5 Days
$62.92
GH000741A SATO CL408e & CL408, Replacement Printhead Kit, 203 dpi, Compatible Printer Model CL408e & CL408 Ships Free Today $371.25
12S000156-R SATO T101A Standard, 3" x 1345' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 1, Core Size: 1", single roll. Available as a case (12S000156) Ships Today $11.05
12S000100-R SATO R435B Premier, 1.5" x 1345' Black Resin Ribbon. Compatible with Industrial Printers. Single ribbon. Used with polyester labels. Also available as a case (Part# 12S000100). Ships Today $22.27
EWS2CL408 SATO Service Plan, Extended Warranty CL408 without Printhead Coverage.
Ships Free in 3-5 Days
$549.18

The SATO W00409111 is also known as SAT-CL408EPP .
