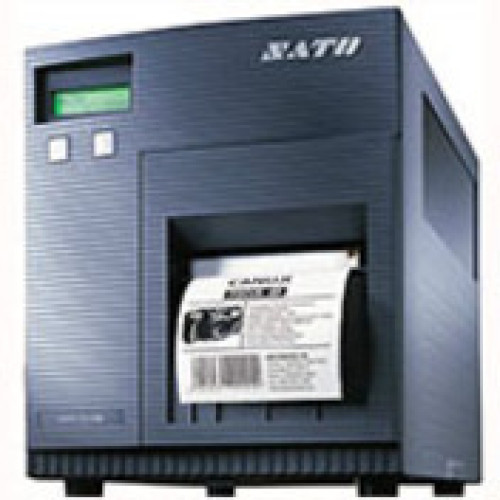

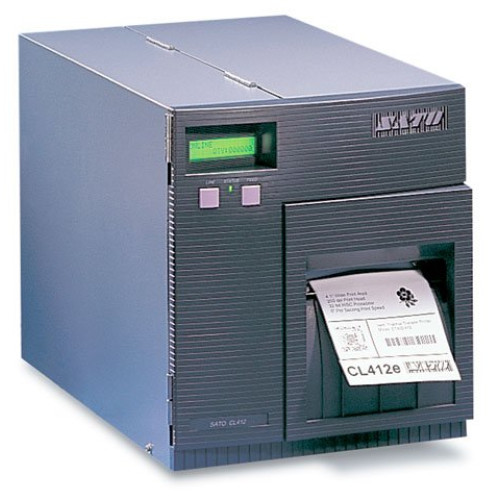

SATO CL412e Barcode Label Printer
Part #: W00413011 | SKU: SAT8521

For advanced technology and high-speed performance the CL412e printers have no match in the industry. Built in the tradition of SATO's rugged dependability the CL412e printers are based on RISC processors delivering high-quality images at high speeds.

SATO CL412e Barcode Label Printer

Part Details: Industrial Thermal transfer Printer, 305 dpi, maximum print width 4.1" , Interface Options: parallel, 16MB RAM, 2MB Flash. Includes US power cord. See accessories for cables as they are sold separately.

Additional Information

Interface Options Parallel
Manufacturer SATO
Max Label Width 5.1
Max Roll Outer Diameter 8.6
Model Name CL412e
Print Resolution 305 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 305 dpi
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • ITF-14
    • UCC/EAN 128
    • Code 128
    • Interleaved 2 of 5
    • Code 39
    • RSS
    • POSTNET
    • EAN-13
    • EAN-8
    • Code 93
    • MSI
    • Codabar
    • Bookland
    • Matrix 25
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: e Series
  • Brand Name: Sato
  • Manufacturer: Sato Corporation
  • Product Model: CL412e
  • Product Name: CL412e Thermal Label Printer

Physical Characteristics

  • Height: 12.6"
  • Width: 10.7"

Interfaces/Ports

  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 5.10"
  • Maximum Label Length: 32.80"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Direct Thermal Label
    • Synthetic Media
    • Tag Stock
    • Thermal Transfer Label
    • Notched
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.60"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • UL
    • CSA
    • FCC Class A
  • Additional Information:
    • Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary
    • Sensing:
    • Adjustable transmissive sensor for gap
    • Reflective sensor for black mark
    • Automatic, programmable top of form
    • Ribbon-out sensor

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 2 MB

Warranty

  • Limited Warranty: 1 Year
Extended Details
