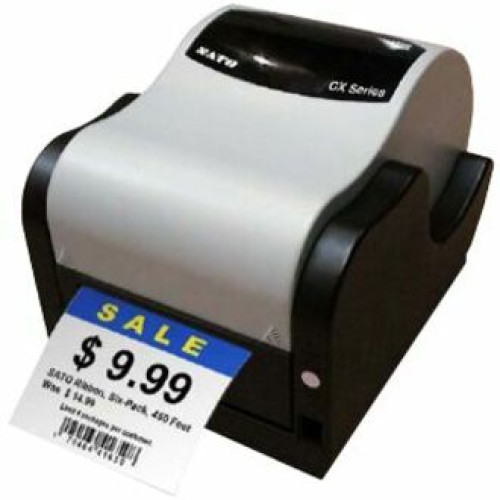

SATO CX400 Barcode Label Printer
Part #: WCX400001 | SKU: SAT21001

The CX400 is a great, inexpensive, low output barcode label printer. In addition to its 205 dpi resolution and the standard features it shares with other comparable printers in this class, the CX400 stands apart by including basic label design software with the unit, and by selling ribbons and labels in convenient "ready to go" packs, making operation, upkeep, and reordering media simple.

SATO CX400 Barcode Label Printer

Part Details: CX 400 Direct Thermal-Thermal Transfer Desktop Printer (203 dpi, 4.1 Inch Print Width and 110V)

Additional Information

Interface Options Parallel, Serial (RS-232)
Manufacturer SATO
Max Label Width 4.69
Max Roll Outer Diameter 5
Model Name CX400
Print Resolution 203 dpi
Print Speed 4 ips
Printer Type Desktop
Printing Technology Thermal Transfer
Ribbon Core Size 0.5 inch

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.1"
  • Maximum Label Width: 4.69"
  • Media Sensor:
    • Reflective
    • Transmissive
    • Top-of-form
  • Input Voltage: 110 V AC
  • Input Voltage Range:
    • 100 to 120 V AC
    • 200 to 240 V AC
  • Power Supply: Included
  • RAM Memory: 2MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

  • Manufacturer: SATO
  • Product Name: CX400 Label Printer

Physical Characteristics

  • Dimensions: 6.5" (165.1mm) x 7.76" (197.1mm) x 10.2" (259mm)
  • Weight: 8.09 lb (3.67 kg)

Other

  • Package Contents:
    • CX400 Label Printer
    • Labeling Software
    • Parallel Printer Cable
    • Starter Roll of Media & Ribbon
    • 110 VAC Power Supply
    • User's & Programmers Guide

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 100°F (38°C) Operating
    • -4°F (-20°C) to 122°F (50°C) Storage
  • Humidity:
    • 30 to 80% Operating Non-condensing
    • 85% Storage Non-condensing

Agency Approvals

  • Agency Approvals:
    • CE
    • UL
    • CSA
    • TUV

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Ribbon Core Size: 0.5"
  • Ribbon Setup: Wound Out
Extended Details
