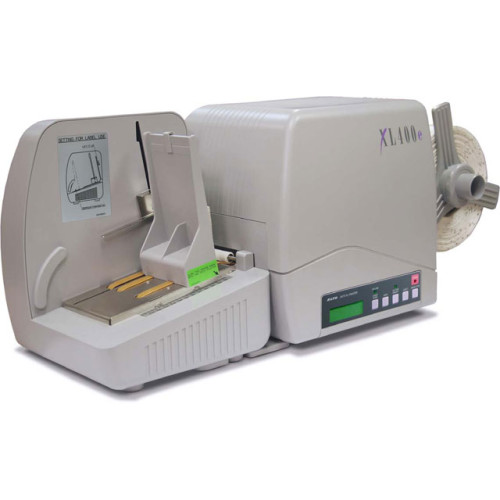

Photo of SATO XL 400e
SATO logo

SATO XL 400e Printer

The SATO XL 400e has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The SATO XL 400e features an 8"/second printing speed and a 203 dpi print resolution while printing, cutting and stacking all types of labels tickets and tags. Perfect for retail stores, apparel manufacturing, retail distribution, and hangtag, tag/price-ticket and woven label companies. The XL 400e' adjustable sensor allows the use of countless types of print media. The stacking attachment option completes ticket printing jobs quickly. Serial communications are standard, with parallel, ethernet and wireless 802.11b interfaces as options the XL 400e is an excellent choice.
Questions?
1-888-875-7170
We respond to every email
XL 400e Options
Part # DescriptionAvailabilityPriceOrder
WXL402081 XL 400e, Thermal transfer, 203 dpi, 8 ips, RS-232 Serial and wireless 802.11b interfaces. Check Availability Call for Details
WXL402041 XL 400e, Thermal transfer, 203 dpi, 8 ips, RS-232 Serial and Ethernet interfaces. Check Availability Call for Details
WXL402011 XL 400e, Thermal transfer, 203 dpi, 8 ips, RS-232 Serial and Parallel interfaces. Check Availability Call for Details
WXL402001 XL 400e, Thermal transfer, 203 dpi, 8 ips, RS-232 Serial interface. Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
WCL405800 Wireless Network 802.11g Card with networking speed up to 54MB per second. Compatible with older 802.11b networks. Ships Free Today $412.50
Retail $550
Save 25%
WWCL45060 Parallel plug-in interface card. Ships Free Today $103.13
Retail $137.50
Save 24%
PR7770100 Label Sensor Assembly for the CL412, CL408E and CL412E. This part is also known as the Pitch Sensor Sub. Ships Free Today $148.24
Retail $171.05
Save 13%
PR1730900 Ribbon boss for CL408E / CL412E series printers Ships Free Today $22.87
PE4730100 RIBBON BOSS CL408/E Ships Free Today $18.69
WXL405101 Stacker
Ships Free in 3-5 Days
$596.25
Retail $795
Save 25%
WWCL45031 RS-232C High-Speed Serial Plug-In Interface Card (for the E-Series).
Ships Free in 3-5 Days
$103.13
Retail $137.50
Save 24%
RJ1772510 RS-422/485 plug-in interface card
Ships Free in 3-5 Days
$164.18
Retail $218.90
Save 24%
PL1770200 Motor pulley for Cl408E, Cl408, Cl412E, Cl412 series printers
Ships Free in 3-5 Days
$22.80
PK2760102 Complete Cutter Assembly (for the XL410E Series Printer)
Ships Free in 3-5 Days
$530.63
Retail $612.26
Save 13%
PE6770300 Switch Buttons for CL408/CL412, CL408E/CL412E or other products.
Ships Free in 3-5 Days
$15.15
PE4210100 3" Core Adapter
Ships Free in 3-5 Days
$14.68
PB0740602 Ribbon shaft for CL408/CL412
Ships Free in 3-5 Days
$30.87
Retail $32.10
MA0303022 Pan head screw for CL408E printer
Ships Free in 3-5 Days
$10.36
K00011000 Power supply (for the XL400e and XL410e)
Ships Free in 3-5 Days
$517.99
Retail $589
Save 12%
HD100321A Fuse, 250V, 3.15A, for CL412 series
Ships Free in 3-5 Days
$14.00
G00012000 XL400e, Replacement printhead, 203 dpi.
Ships Free in 3-5 Days
$595.00
CV617431A Real-time clock kit - factory installation recommended
Ships Free in 3-5 Days
$81.68
Retail $108.90
Save 24%
Protect Your Product
SATO Service Plan (OSBD-NEW-12)
Minimize downtime and extend the life of your equipment with an On-Site Same-Day Service Plan for new printers. When trouble occurs, a technician will arrive on-site with repair parts in-hand.
Ships in 3-5 Days
$177.00
+ Add to Quote
SATO Service Plan (OSBD-NEW-24)
Minimize downtime and extend the life of your equipment with an On-Site Same-Day Service Plan for new printers. When trouble occurs, a technician will arrive on-site with repair parts in-hand.
Ships in 3-5 Days
$649.00
+ Add to Quote
SATO Service Plan (OSBD-NEW-36)
Minimize downtime and extend the life of your equipment with an On-Site Same-Day Service Plan for new printers. When trouble occurs, a technician will arrive on-site with repair parts in-hand.
Ships in 3-5 Days
$1,043.00
+ Add to Quote
SATO Service Plan (OSMC-NEW-12)
Minimize downtime and extend the life of your equipment with an On-Site Service Plan for new printers. When trouble occurs, a technician will arrive on-site in 48 hours with repair parts in-hand.
Ships in 3-5 Days
$115.00
+ Add to Quote
SATO Service Plan (OSMC-NEW-24)
Minimize downtime and extend the life of your equipment with an On-Site Service Plan for new printers. When trouble occurs, a technician will arrive on-site in 48 hours with repair parts in-hand.
Ships in 3-5 Days
$424.00
+ Add to Quote
Recommended Labels
SATO Label (57TG02075)
1.5" x 2.75" Direct thermal 7pt. paper tag. 3200 tags/roll, 2 roll case.
Ships Today
$102.97
+ Add to Quote
SATO Label (57TG02030)
2.75" x 1.25" Direct thermal 7pt. paper tag. 7000 tags/roll, 2 roll case.
Ships in 3-5 Days
$81.62
+ Add to Quote
Recommended Ribbons
Recommended Printheads

SATO XL 400e Details

XL 400e - Tag and Label Printer

SATO's XL 400e printer includes a heavy-duty print mechanism and cutter assembly. Its industrial chassis and 32-Bit RISC high performance processor tackles even the most demanding print jobs with ease.

Designed for the following applications:

  • Apparel Labeling
  • Hang Tags
  • Lumber Tags
  • Retail Tags
  • And Others

XL 400e Enhancements:

  • User Adjustments
  • Printhead Replacement
  • Long Life
  • Diagnostics
  • High-Speed Processor
  • Plug-In Interfaces
  • Cutter Mechanism

XL400e

 XL410e

Printing Method

Thermal Transfer/Direct Thermal

Print Resolution

203 dpi (8 dots/mm)

305 dpi (12 dots/mm)

Print Speed

Up to 8 ips (200mm/sec)

Up to 6 ips (150mm/sec)

Max. Print Width

3.94" (100mm)

Max. Print Length

11.8" (300mm)

 9.4" (240mm)

Media Size

Min. 1.26" (32mm) W x 0.75" (19mm) L for Labels
Min. 1.26" (32mm) W x 0.98" (25mm) L for Tags
Max. 4.13" (105mm) W x 9.45 (240 mm) L

Max. Ribbon Size

Max. Length: 1476' (450m) - CSI

Dimensions

19.6" W x 11.8" D x 11.5" H
(302 mm W x 552 mm D x 294 mm H)

Weight

30.8 lbs. (14 kg)



Memory:
2 MB Std. Memory
2.95 MB Receive Buffer (max.)

Processor:
32-BIT RISC

Interface:

  • Standard Interfaces:
    • Serial - RS232C (up to 57.6k bps)
  • Optional Plug-In Interfaces:
    • Parallel - IEEE1284 (ECP)
    • Ethernet - 10/100BaseT
    • Wireless
    • USB

    Media:
    Roll or fan-fold labels or tags
    Max. 0.012" (0.31mm) Caliper
    Core Size: 4" I.D. 3" optional with adapter purchase
    Max. 9.84" (250 mm) Roll O.D.
    Wind Face-In or Face-Out – Print marking side wound face-in is recommended

    Media Detection:
    Eye-Mark; Gap; Center/Side Hole; Edge (R-Corner)

    Barcode Symbologies:
    Linear: UPC-A/E, EAN-8/13, Code 39/93/128, Bookland, Industrial 2/5, Interleaved 2/5, Matrix 2/5, Postnet, UCC/EAN 128, Codabar
    2-Dimensional: PDF417, Maxicode, Data Matrix, QR Code, Vericode

    Barcode:
    2:1, 5:2, 3:1 ratio; programmable height

    Human Readable Fonts:
    12 proportional, mono-spaced and outline fonts
    (Code table 858)
    8 POP fonts (Numeric only)
    Internal CG Triumvirate& CG Times fonts plus downloaded TrueType fonts

    Flexibility:
    360° rotation of barcodes and text, character expansion horizontally and vertically, sequential numbering, form overlay for high-speed editing of complex formats

    Options:
    Real Time Calendar/Clock, Stacker, Memory Expansion, Memory Card Interface Board
