SIIG PC Card Products
Part #: SC-SA4R12-S2 | SKU: SII152448

PCI, PCMCIA, and other cards for computers

SIIG PC Card Products

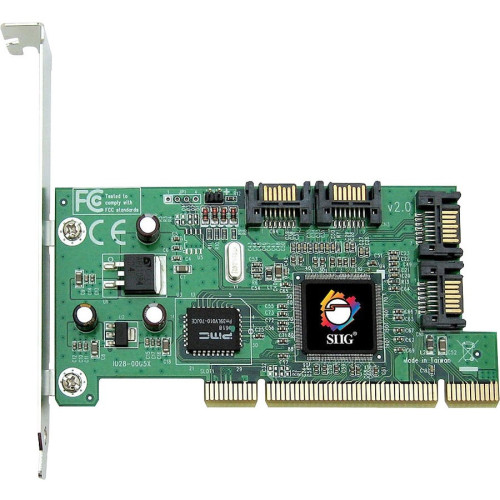

Part Details: SIIG Serial ATA 4-Channel RAID - Serial ATA/150 - PCI - Plug-in Card - RAID Supported - 0, 1, 10 RAID Level - 4 Total SATA Port(s) - 4 SATA Port(s) Internal

Additional Information

Manufacturer SIIG
Model Name PC Card

General Information

  • Product Type: Serial ATA Controller
  • Brand Name: SIIG
  • Packing: Box
  • Manufacturer: SIIG, Inc
  • Product Name: Serial ATA 4-Channel RAID
  • Package Type: Retail
  • Packaged Quantity: 1

Technical Information

  • Drive Type: Serial ATA/150
  • Data Transfer Rate: Up to 1.17 Gbps
  • Drive Supported: Up to 4 x Serial ATA/150
  • Host Interface: PCI
  • Platform Supported: PC

Physical Characteristics

  • Form Factor: Low-profile Plug-in Card

Interfaces/Ports

  • Ports: 4 x 7-pin Serial ATA Serial ATA/150 Serial ATA (7-pin) Internal

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Serial ATA 4-channel RAID
    • Four Serial ATA cables
    • Two Dual-connector SATA power cables
    • Two "Y" split power cables
    • Driver and utility software
    • User' manual
    • Serial ATA 4-channel RAID
    • Four Serial ATA cables
    • Two Dual-connector SATA power cables
    • Two "Y" split power cables
    • Driver and utility software
    • User' manual
  • Certifications & Standards: FCC Class B, CE, RoHS
  • System Requirements:
    • Pentium or equivalent PC with one available PCI slot
    • Windows 98SE/ME/NT4.0/2000/XP/Vista (32-bit & 64-bit)
  • Additional Information:
    • Regulatory approval(s): FCC Class B (DoC) & CE
    • Port type: Four Serial ATA ports
    • Slot type: 32-bit PCI
    • Compliant with Serial ATA Specification, revision 1.0
    • Compliant with PCI Specification, revision 2.2
    • Supports RAID 0 (striping), RAID 1 (mirroring) and RAID 0+1 (striping & mirroring)
    • Coexists with Ultra ATA controller and allows you to connect up to four Serial ATA hard disks
    • Features independent 256-byte FIFOs per channel for host reads and writes
    • Features Watch Dog timer for fault resiliency and flash memory for future BIOS updates
    • Supports 32-bit wide PCI bus at 66MHz data transfer rates up to 150 MB/s (1.5Gb/s)
    • Lower pin count and voltage requirement, plus better cabling over traditional Parallel ATA make Serial ATA the controller of the future
    • Four high quality SATA cables and two dual connector SATA power cables required for RAID configuration are included. Two "Y" split power cable is also included to provide extra power connection!

Warranty

  • Limited Warranty: Lifetime
