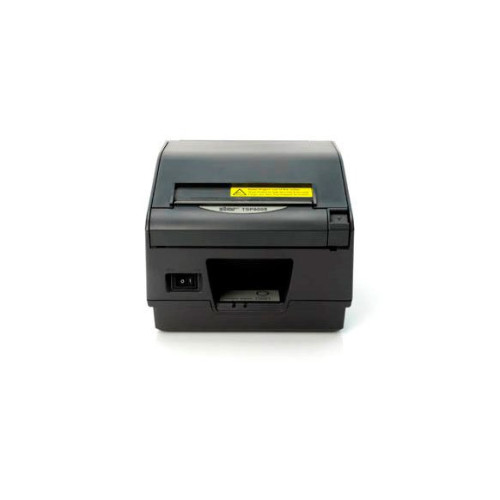

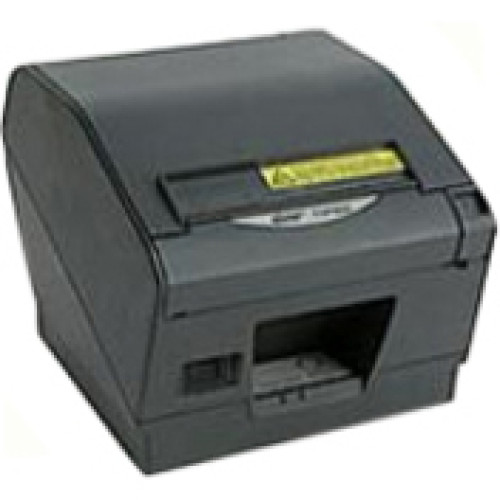

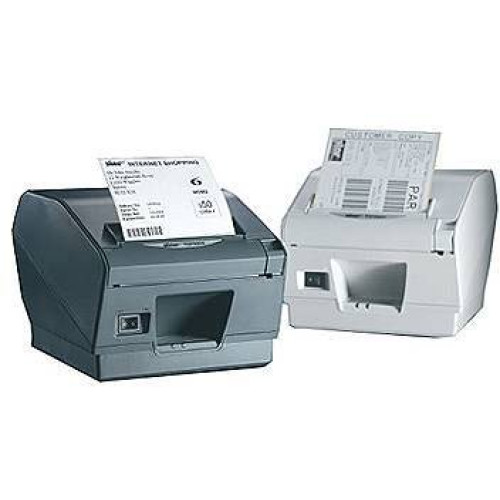

Star TSP800IIRx

Thermal, Friction, 2 Color, Cutter/Tear bar, Parallel, Gray, External Power supply Included, Paper Lock. Interface cables not included. See accessories. Also known as TSP847CII-24 GRY RX-US.


Free Shipping

Ships in 24-48 hours


Star TSP800 RX Printer

Star has the solution to print thermal prescriptions using the secured locking TSP800 RX Printer. Answering the requests from Hospitals and Physicians to efficiently automate the prescription process and make it simple is the cure from Star. The Secured TSP800 RX printer enables doctors to print thermal prescriptions vs. handwritten prescriptions from a pad avoiding legibility errors. Utilizing specialized and secured thermal prescription paper, the prescriptions are printed using the latest electronic medical record (EMR) software in the industry, resulting in a secured legible script in seconds. No more messy ribbon replacements! The Secured TSP800 RX features simple and easy "Drop-In" secured thermal prescription paper, the sole consumable.

Full specifications (PDF)

Manufacturer part number: 37962280

Technical Information

  • Maximum Mono Print Speed: 7.09 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Number of Columns: 104
  • Maximum Print Width: 4.09"
  • Recommended Use: Receipt Print
  • Features:
    • Auto-cutter
    • Tear Bar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TSP800Rx
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TSP847CII
  • Product Name: TSP800Rx TSP847CII Receipt Printer

Physical Characteristics

  • Height: 5.8"
  • Width: 7.1"
  • Depth: 8.4"
  • Form Factor: Desktop
  • Color: Gray


  • Parallel Port: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • TSP847CII Receipt Printer
    • PS60A External Power Supply
    • User Manual
    • Start Up Paper Roll
    • Ferrite Core
    • TSP847CII Receipt Printer
    • PS60A External Power Supply
    • User Manual
    • Start Up Paper Roll
    • Ferrite Core

Media Types & Handling

  • Maximum Label Width: 4.09"
  • Media Type: Receipt
  • Media Thickness: 5.91 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Paper Low Sensor
    • Out Of Paper Sensor
    • Media Door Open Sensor
  • Maximum Roll Diameter: 3.94"

Fonts & Emulation

  • Language Emulation:
    • ESC/POS
    • Star DP8340
    • Star Line Mode
    • Star Page Mode


  • Standard Memory: 2 MB
  • Memory Technology: SRAM
  • Flash Memory: 16 MB


  • Limited Warranty: 3 Year


  • Cutting Method: Automatic

Power Description

  • Input Voltage: 24 V DC
