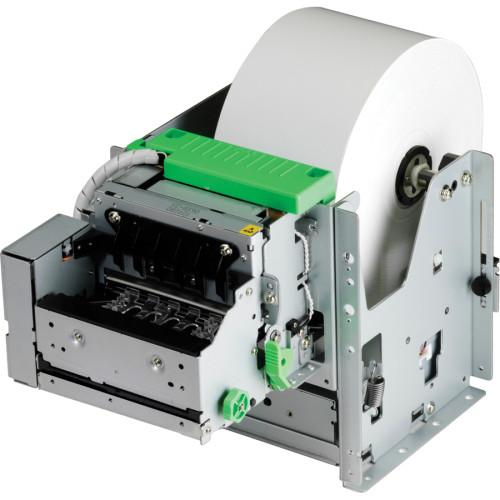

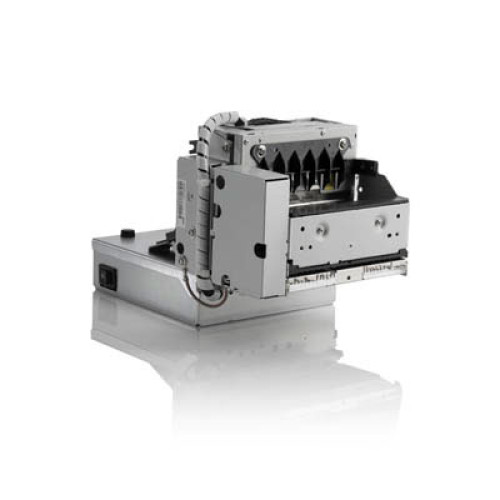

39470200 - Star TUP 542 Receipt Printer

With a compact footprint and support for smaller paper widths, the TUP 542 is a welcomed addition to Star's kiosk printer line to provide solutions to a great range of applications. The TUP 542 features an industry leading print speed of up to 220 mm/sec and a high reliability at an MCBF of 60 million lines. The innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user. The TUP 542 features adjustable paper widths of 45 mm to 82.5 mm documents. With the addition of the optional Large Paper Roll Accessory, it supports up to a 10" paper roll for many hours of unattended operation. The TUP 542 kiosk printer is ideal for a wide range of applications including public information kiosks, gaming, lottery, web kiosks, and much more.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
39470200 TUP 542, Direct Line Thermal Kiosk Printer, 203 dpi, 220 mm/second print speed, auto-cutter, 2-color. Requires power supply (Part# 30781753) and Interface Card. Also known as TUP542-24. Non-Cancellable, Non-Returnable, Please call use with any questions. Ships Free Today $401.64
Retail $675
Save 40%
Information:   |  Specifications  |  Star's TUP 542 page  |
Accessories:   |  Accessories/Options  |

39470200 Details

Technical Information

  • Maximum Mono Print Speed: 8.66 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Recommended Use: Receipt Print
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • ITF
    • Code 39
    • Code 128
    • Code 93
    • Codabar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TUP500
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TUP542-24
  • Product Name: TUP500 TUP542-24 Receipt Printer

Physical Characteristics

  • Height: 7"
  • Width: 6.3"
  • Depth: 7.3"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • TUP542-24 Receipt Printer
    • PS60A External Power Supply
    • TUP542-24 Receipt Printer
    • PS60A External Power Supply

Media Types & Handling

  • Maximum Label Width: 3.25"
  • Media Type: Receipt
  • Media Thickness: 5.91 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Paper Low Sensor
    • Out Of Paper Sensor
  • Maximum Roll Diameter: 5.91"

Fonts & Emulation

  • Language Emulation:
    • ESC/POS
    • Star Line Mode
    • Star Page Mode

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Power Description

  • Input Voltage: 24 V DC

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
RPT3.125-STD AirTrack Receipt Paper, Thermal Receipt Paper, 3.125" x 230', 7/16" core, 2.75" outer diameter. Single roll. Ships Today $4.25
RPT3.125-STD AirTrack Receipt Paper, Thermal Receipt Paper, 3.125" x 230', 7/16" core, 2.75" outer diameter. Single roll. Ships Today $4.25
RPT3.125-EXT BCI Receipt Paper, 3.125" width x 273' length thermal paper. Single roll. Minimum order of 6 Rolls Ships Today $4.25
RPT3.125-EXT BCI Receipt Paper, 3.125" width x 273' length thermal paper. Single roll. Minimum order of 6 Rolls Ships Today $4.25

The Star 39470200 is also known as Star Micronics STA-39470200 .
