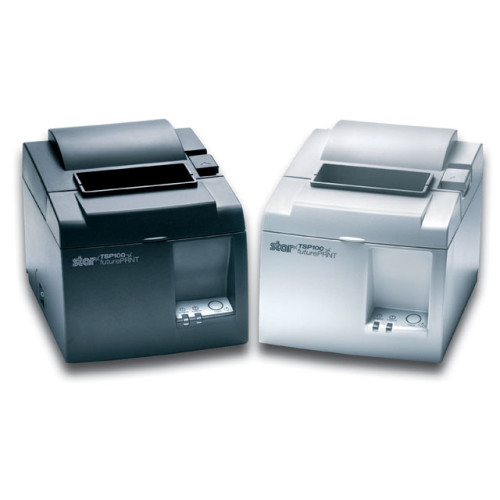

Photo of Star TSP 100 LAN futurePRNT
Star logo

Star TSP 100 LAN futurePRNT Printer

The TSP 100 LAN futurePRNT printer includes an "Error Reporting Feature" which indicates if there has been a lost network connection by flashing its error lights. The ready button not only tells the user that the printer is on, but also if it has paper and if it is operating correctly. It will also now tell the user if it has a real connection to the host computer.It is provided with a USB connection that provides an immediate "Plug & Play" installation which reduces the time of integration to minutes. The advantages of such a printer are evident for applications such as retail, restaurants, and convenience stores.This direct thermal printer is provided with all standard operating system drivers, Windows, Linux and Mac, and specialty drivers such as OPOS and JPOS.

Print Method ?

Interface

Print Width ?

Print Speed ?

Color

Form Factor

Magstripe Option ?

Cutter Option ?

TSP 100 LAN futurePRNT Options
Part # DescriptionAvailabilityPriceOrder
39463010 TSP 100: TSP 113 LAN, Thermal Receipt Printer, Tear bar, Ethernet Interface. Includes Ethernet Cable and Power supply. Color: Gray. Also known as TSP113L GRY US. Ships Today $240.63
Retail $660
Save 63%
39463110 TSP 100: TSP 143 LAN, Thermal Receipt Printer, Auto-cutter, Ethernet Interface. Includes Ethernet Cable and Power supply. Color: Dark gray. Also known as TSP143L GRY US. Ships Today $246.37
Retail $690
Save 64%

Star TSP 100 LAN futurePRNT Details

SPECIFICATIONS - TSP100 futurePRNT Series

Printer Method

Direct Line Thermal

Print Speed

22 RPM (Receipts Per Minute)

Printer Case Color

Putty or Gray

Models Available

Tear Bar or Auto Cutter

Print Resolution

203 dpi (8 dots per mm)

No. of Columns

Star Mode = 40, ESC/POS Font A 42 Font B 64

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode=40. ESC/POS= 10 + 1 blank allowing an additional character page to be added

Bar Codes

Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width


80mm standard, 58mm with paper guide

0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
N/A
80mm paper = 72mm, 58mm paper = 50.8mm

Top Margin

11 mm minimum default

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

Unlimited

Multiple Copy Support

Supported through futurePRNT Software

Journal Capability

Supported through futurePRNT Software

Label Support

N/A

Power Supply

Internal with power cable supplied (not available on the TSP100PUSB; requires optional PS60A external power supply only when using standard Full Speed 2.0 USB cable)

Drivers Available

Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK with support for Android and Blackberry

Digitally Signed (WHQL)

Yes

Swappable Interfaces

N/A

Connectivity
TSP100U
TSP100LAN
TSP100 Powered USB
Virtual Serial Port to USB
Virtual Serial Port to LAN


USB 2.0, Full Speed with cable supplied
Ethernet (10/100BaseT, UTP) with cable supplied
Combined Power and USB cable version with Powered USB cable supplied
Supported through futurePRNT Software (TSP100, TSP100PUSB, TSP100LAN)
Supported through futurePRNT Software (TSP100LAN)

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.6 Amp. Printing, 0.1 Amp. Standby

Operating Conditions

Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20C to 60C
Humidity: 10% - 90% RH

Dimensions
Weight:
Auto Cutter Models
Tear Bar Models

142 x 132 x 204 (w x h x d)mm

TSP143U - 1.73Kg, TSP143PUSB - 1.53Kg, TSP143LAN 1.72Kg
TSP113U - 1.56Kg, TSP113PUSB - 1.37Kg, TSP113LAN - 1.56Kg

Safety Standards

UL, C-UL, TAV, FCC, VCCI, EN55022, CE

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
1 Million Cuts

Accessories ALL Included with Printer

Installation CD with Drivers and futurePRNT Receipt ReDesign Software, Wall Mount Bracket, Auto Reverse Text Output Software, Vertical Mount Accessory, 58mm Paper Guide, 6ft Interface Cable, 6ft Power Cable, Power Switch Cover
(Power Cable not included with PUSB versions)

Warranty

3 Year Limited Manufacturer Warranty (US and Canada)

Options

Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)

HARDWARE FEATURES AND BENEFITS - TSP100 futurePRNT Series


All in One Box


All accessories included in the box with the printer


High Speed


Can print 22 six inch Receipts per Minute


High Reliability


MCBF: 60 Million Lines
Guillotine Auto Cutter: 1 Million Cuts


Small Foot Print


Save precious counter space


Embedded Power Supply


No more power brick, saving even more counter space


"Drop In & Print" Paper Loading


Clamshell design allows for very fast and easy paper loading


Recessed Cable Connections


Helps protect cables from being damaged on the counter top


Horizontal or Vertical Orientation


Use the printer in the orientation that suits you best. An optional eye-pleasing vertical stand (VS-T650) is available for vertical operation.


Wall Mountable


Need more counter space? Create more room by mounting the printer to the wall. The futurePRNT Configuration Utility allows for Text Reversal so the receipt is printed to face the user.


Installation CD Included in Box


No need to download drivers or utilities


Digitally Signed Driver (WHQL)


Certified by Microsoft for worry free operation


futurePRNT Receipt Redesign Software


Customize and brand receipts to keep customers coming back time and time again with professional graphics (logos, coupons, and merge images), word-triggered advertising, and MORE!


futurePRNT SOFTWARE FEATURES AND BENEFITS - TSP100 futurePRNT Series


futurePRNT Configuration Utility


Included on Installation CD, free, simple to use, provides a powerful marketing tool to brand receipts and give customers incentive to return


Add Graphics


Easily add logos, coupons, merge images, and more


Target Marketing


Assign key words to trigger coupons based off of what customers purchase to keep them returning


Text Replacement


Easily replace unwanted text with other words or white space


Enhance Barcodes


Adjust barcode size for professional looking receipts


Print Preview Tool


See an image of your receipt design before you print it, thus saving paper in the receipt design phase


Electronic Journal


Keep an electronic record of all transactions saved directly to your PC organized by date. Save paper by reducing the need for an extra copy


Text Reversal


Reverse the entire receipt for vertical orientation; when the receipt is printed, it will be presented front-side up to the user


OPOS/JPOS Configuration


Very easily configure for OPOS or JPOS use


Virtual Serial Port to USB


Use a USB connection with old software. Create a Virtual Serial Port to support older applications that only communicate via serial. This tool will convert serial commands to USB, which the TSP100 understands


Virtual Serial Port to Ethernet


Use an ethernet connection with old software. Create a Virtual Serial Port to support older applications that only communicate via serial. This tool will convert serial commands to ethernet, which the TSP100LAN understands

* The Virtual Serial Port to Ethernet is available only on the TSP100LAN printer


OPTIONS AND ENHANCEMENTS - TSP100 futurePRNT Series


WiFi Power Pack

The Wifi Power Pack is designed to make any Star LAN interface printer "wireless". Powered by the printer's cash drawer kick port, the WiFi Power pack avoids additional power outlet, eliminating the possibility of tangled cables. The WiFi Power Pack includes a DK-USB power module and a TP Link wireless router.

Part Number: 99250000



Splash Proof Cover
SPC-T100


The Splash Proof Cover helps to protect the TSP100 from liquid and airborne debris in harsh environments such as kitchens. It easily locks in place over the printer.

Part Number: 39591100



Vertical Stand
VST-650


Use the specially designed Vertical Stand when utilizing the TSP100 in vertical orientation. The Vertical Stand provides a clean surface facing the customer, which also creates room for advertising.

Part Number: 39590530



Kitchen Buzzer / Ticket Alarm
BU01-24-A


The Kitchen Buzzer is designed to connect directly to the RJ11 port on the back of the printer. When a print job is sent to the TSP100, the buzzer will sound off. This is beneficial for high noise environments like kitchens to alert cooks that orders have been sent to them.

Part Number: 39594000



Extend-A-Star Extended Warranty

The Extend-A-Star Extended Warranty Program provides full bumper-to-bumper coverage available for a selectable span of 3 or 4 years.



Swap-A-Star Extended Warranty

The Swap-A-Star Extended Warranty Program provides next business day replacement coverage available for a selectable span of 3 or 4 years.



Part Number
Model
Description
39461310
TSP113U
Thermal, Friction, Tear Bar, USB, Putty Int UPS
39461510
TSP113U GRY
Thermal, Friction, Tear Bar, USB, GRY, Int UPS
37999080
TSP113PU-24 PUSB CBL
Thermal, Friction, Tear Bar, USB, Putty, 1.2M Powered USB Cable
39463610
TSP113L US
Thermal, Friction, Tear Bar, Ethernet (LAN), Putty, Int UPS
39463010
TSP113L GRY US
Thermal, Friction, Tear Bar, Ethernet (LAN), GRY, Int UPS
37999090
TSP113PU-24 GRY PUSB CBL
Thermal, Friction, Tear Bar, USB, GRY, 1.2M Powered USB Cable
39461210
TSP143U
Thermal, Friction, Cutter, USB, Putty Int UPS
39461110
TSP143U GRY
Thermal, Friction, Cutter, USB, GRY, Int UPS
39463710
TSP143L US
Thermal, Friction, Cutter, Ethernet (LAN), Putty, Int UPS
39463110
TSP143L GRY US
Thermal, Friction, Cutter, Ethernet (LAN), GRY, Int UPS
37999100
TSP143PU-24 PUSB CBL
Thermal, Friction, Cutter, USB, Putty, 1.2M Powered USB Cable
37999110
TSP143PU-24 GRY PUSB CBL
Thermal, Friction, Cutter, USB, GRY, 1.2M Powered USB Cable
The Star TSP 100 LAN futurePRNT is also known as the Star Micronics TSP 100 LAN futurePRNT .
