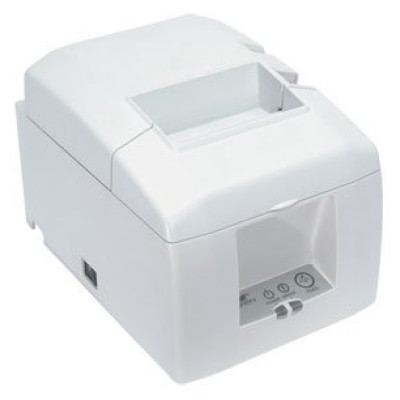

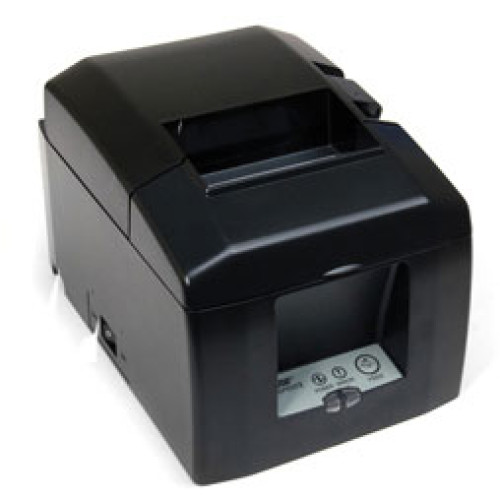

Photo of Star TSP-650ii
Star logo

Star TSP-650ii Printer

Apple MFi certified, the TSP650II BTi receipt printer is approved for use with the Apple iPod Touch, iPhone and iPad. With operating system support for iOS, Android and Windows, the TSP650II BTi features the best of both worlds by coupling the comfort of legacy products with the speed and connection options demanded today in fast-paced point of sales environments. The TSP650II BTi's "JustWorks" SSP profile makes the pairing process very simple to use. It allows for a quick connection without the hassle of a passkey or having to choose between iOS and Android modes. Quick and ready to use, no user interaction is needed to pair the TSP650II BTi. One attribute that grabs the user"s attention is TSP650II BTi's lightening fast print speed. Capable of printing 60 receipts per minute (300 mm/sec), the TSP650II BTi offers unrivalled processing power and outstanding data throughput. Equipped with easy "drop in and print" paper loading, small footprint and reliable guillotine cutter, the TSP650II BTi is a welcomed addition to any POS system. With exceptional performance, functionality, Bluetooth accessibility and iOS support, the TSP650II BTi embodies Star's motto of "Always Leading- Always Innovating."
TSP-650ii Options
Part # DescriptionAvailabilityPriceOrder
39449871 TSP650ii BTi, TSP650, Thermal, Cutter, Bluetooth, iOS, Gray, Power supply Included, Auto Connect ON. Color: Dark gray. Works with Apple iOS (iPad, iPhone, iPod), Android, and Windows. Also known as TSP654IIBI-24 GRY US. Ships Today $357.17
Retail $625
Save 42%
39481161 TSP650ii BTi, Thermal, Auto-cutter, Bluetooth Interface. Includes Power supply. Color: White. Works with Apple iOS (iPad, iPhone, iPod), Auto Connect On. Also known as TSP654IIBI-24 WHT US. Ships Today $357.17
Retail $625
Save 42%
39481170 TSP650ii BTi, Thermal, Auto-cutter, Bluetooth Interface. Includes Power supply. Color: Dark gray. Works with Android and Windows, Auto Connect Off. Also known as TSP654IIBI-24 OF WHT US. Ships Today $358.43
Retail $625
Save 42%
39449861 TSP650II BTi, Thermal, Cutter, Bluetooth, iOS, Putty, Power supply Included, Auto Connect ON. Color: White. Works with Apple iOS (iPad, iPhone, iPod), Android, and Windows. Also known as TSP654IIBI-24 US. Ships Today $357.17
Retail $625
Save 42%

Star TSP-650ii Details

SPECIFICATIONS - TSP650II BTi

Printer Method

Direct Line Thermal

Print Speed

60 Receipts Per Minute (300 mm/sec)

Print Resolution

203 dpi

No. of Columns

48 / 64

Font Size

9 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF 417 Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width


80mm standard, Adjustable 58mm with paper guide

0.053 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
Standard
80mm paper = 72mm, 58mm paper = 52mm

Top Margin

11 mm or 13 mm minimum default

Auto Cutter

Guillotine

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

Available through Star Raster Driver

Connectivity

Bluetooth

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby
PS60A External Power Supply

Operating Conditions

Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20C to 60C
Humidity: 10% - 90% RH

Dimensions
Weight:
Auto Cutter Model

142 x 132 x 202 (w x h x d)mm

TSP654 - 1.72 kg

Safety Standards

UL, C-UL, TA¬V, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
2 Million Cuts

Included with Printer

Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll, Power Supply

Warranty

3 Year Limited Manufacturer Warranty (US and Canada)

Options

Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)

The Star TSP-650ii is also known as the Star Micronics TSP-650ii .
