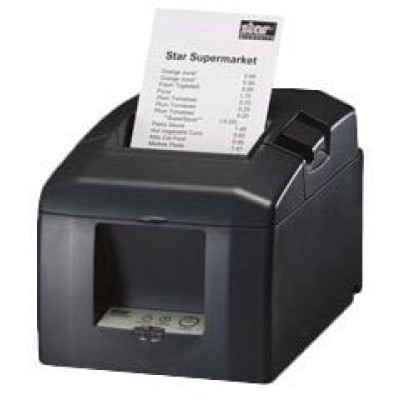

Photo of Star TSP 650 Series: TSP651
Star logo

Star TSP 650 Series: TSP651 Printer

The Star TSP 650 Series: TSP651 boasts valuable features like a tear bar, low cost and high performance combined with the ability to work effectively in any environment. Out of the box, the TSP 650 Series: TSP651 can easily be configured in Star Line or ESC/POS emulation mode and features a wide variety of interface options including USB and Ethernet due to its plug-in modules. New vertical mount stand and splash proof cover options help make it one of the most reliable POS printers in the world.

Print Method ?

Interface

Print Width ?

Print Speed ?

Color

Form Factor

Magstripe Option ?

Cutter Option ?

TSP 650 Series: TSP651 Options
Part # DescriptionAvailabilityPriceOrder
39448210 TSP600 Series: TSP651, Thermal printing, Tear bar, Parallel interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray. Ships Today $161.22
Retail $395
Save 59%
39448200 TSP600 Series: TSP651, Thermal printing, Tear bar, Parallel interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: White. Ships in 24-48 Hours $161.22
Retail $395
Save 59%
39448410 TSP600 Series: TSP651, Thermal printing, Tear bar, Serial interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray. Ships Today $161.22
Retail $395
Save 59%
39448400 TSP600 Series: TSP651, Thermal printing, Tear bar, Serial interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: White. Ships Today $161.22
Retail $395
Save 59%
37999600 TSP600 Series: TSP651, Thermal printing, Tear bar, USB interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray. Ships Today $212.92
Retail $475
Save 55%
37999590 TSP600 Series: TSP651, Thermal printing, Tear bar, USB interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: White. Ships Today $212.92
Retail $475
Save 55%
37999500 TSP600 Series: TSP651, Thermal printing, Tear bar, Ethernet interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray. Ships Today $260.93
Retail $560
Save 53%
37999490 TSP600 Series: TSP651, Thermal printing, Tear bar, Ethernet interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: White. Ships in 24-48 Hours $260.93
Retail $560
Save 53%
TSP651U-24-GRY DUPLI TSP600 Series: TSP651, Thermal printing, Tear bar, USB interface, Two Color. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray. Ships in 24-48 Hours $235.25
Retail $475
Save 50%

Star TSP 650 Series: TSP651 Details

SPECIFICATIONS – TSP650

Printer Method

Direct Line Thermal

Print Speed

30 Receipts Per Minute (150 mm/sec)

Printer Case Color

Putty or Gray

Models Available

Tear Bar or Auto Cutter

Print Resolution

203 dpi

Two Color Print Capability

Red & Black / Blue & Black / Green & Black (Two color thermal paper required)

No. of Columns

48 / 64

Font Size

9 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added

Barcodes

9 versions / PDF 417 Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width


80mm standard, Adjustable 58mm with paper guide

0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
Standard
80mm paper = 72mm, 58mm paper = 52mm

Top Margin

13 mm minimum default (3mm selectable via Memory Switch Utility)

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

N/A

Journal Capability

N/A

Label Support

N/A

Power Supply

External; Requires PS60A External Power Supply

Drivers Available

Windows™ 2000/XP/Vista™, WinCE, WePOS, Windows 2003 Server, OPOS™, JAVA POS™, Linux CUPS Support™ , MAC OSX™, POS.Net, USB Vendor Class, Windows 98/ME/NT4 (download only)

WHQL

N/A

Swappable Interfaces

Yes

Connectivity

Serial, Parallel, USB, or Ethernet

Emulation Modes

Star Mode, ESC/POS™

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions

Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH

Dimensions
Weight:
Auto Cutter Model
Tear Bar Model

142mm(W) x 202(D) x 132(H) mm

TSP654 – 1.72 kg
TSP651 – 1.56 kg

Safety Standards

UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
1 Million Cuts

Included with Printer

Installation CD with Drivers and Configuration Utility, Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll

Warranty

3 Year Limited Manufacturer Warranty (US and Canada)

Options

External Power Supply (PS60A)
Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swappable Interfaces
24V Mobile Power Supply

Swap-A-Star Extended Warranty Program (US)
Extend-A-Star Extended Warranty Program (US and Canada)

The Star TSP 650 Series: TSP651 is also known as the Star Micronics TSP 650 Series: TSP651 .
