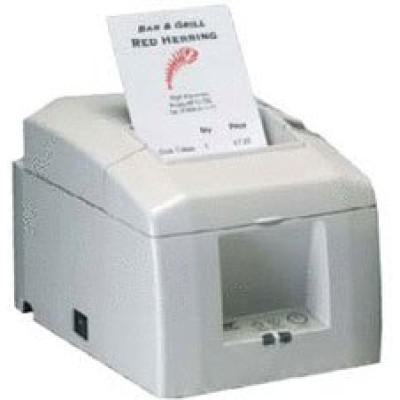

Photo of Star TSP 650 Series: TSP654
Star logo

Star TSP 650 Series: TSP654 Printer

Star TSP650ii A newer version of this item is available.
It is replaced by the Star TSP650ii.
See below for remaining inventory available for purchase.
The Star TSP 650 Series: TSP654 boasts valuable features like an auto-cutter, low cost and high performance combined with the ability to work effectively in any environment. Out of the box, the TSP 650 Series: TSP654 can easily be configured in Star Line or ESC/POS emulation mode and features a wide variety of interface options including USB and Ethernet due to its plug-in modules. New vertical mount stand and splash proof cover options help make it one of the most reliable POS printers in the world.

Print Method ?

Interface

Print Width ?

Print Speed ?

Color

Form Factor

Magstripe Option ?

Cutter Option ?

TSP 650 Series: TSP654 Options
Part # DescriptionAvailabilityPriceOrder
39448510 This part is replaced by 39449590.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, Serial interface. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray.
Ships Today $213.97
Retail $353.34
Save 39%
39448610 This part is replaced by 39449670.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, USB interface. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray.
Ships Today $227.58
Retail $505
Save 54%
TSP654IIC-24-GRY TSP600 Series: TSP654, Thermal printing, Auto-cutter, Parallel interface. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray. Ships in 24-48 Hours $220.54
39449660 TSP600 Series: TSP654, Thermal printing, Auto-cutter, USB interface. Cables sold separately. Color: White. Ships Today $257.24
Retail $540
Save 52%
TSP654IID-24GRY TSP600 Series: TSP654, Thermal printing, Auto-cutter, Serial interface. Cables sold separately. Color: Dark gray. Ships in 24-48 Hours $220.54
TSP654IIU-24-PUTTY TSP600 Series: TSP654, Thermal printing, Auto-cutter, USB interface. Cables sold separately. Color: White. Ships in 24-48 Hours $268.42
37963901 TSP654ii, Ethernet WEBPRNT, THERMAL PRINTER, CUTTER, GRY, POWER SUPPLY INCLUDED, REPLACES PN 37963900 Ships Today $365.32
Retail $695
Save 47%
39449760 TSP600 Series: TSP654, Thermal printing, Auto-cutter, Ethernet interface. Cables sold separately. Color: White. Check Availability Call for Details
39449580 TSP600 Series: TSP654, Thermal printing, Auto-cutter, Serial interface. Cables sold separately. Color: White. Check Availability Call for Details
39449460 TSP600 Series: TSP654, Thermal printing, Auto-cutter, Parallel interface. Cables sold separately. Color: White. Check Availability Call for Details
39448500 This part is replaced by 39449580.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, Serial interface. Power supply (Part# 30781753) and cables sold separately. Color: White.
See Replacement Call for Details
39448310 This part is replaced by 39449470.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, Parallel interface. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray.
See Replacement Call for Details
39448300 This part is replaced by 39449460.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, Parallel interface. Power supply (Part# 30781753) and cables sold separately. Color: White.
See Replacement Call for Details
37999540 This part is replaced by 39449770.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, Ethernet interface. Power supply (Part# 30781753) and cables sold separately. Color: Dark gray.
See Replacement Call for Details
37999530 This part is replaced by 39449760.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, Ethernet interface. Power supply (Part# 30781753) and cables sold separately. Color: White.
See Replacement Call for Details
37999520 This part is replaced by 39448610.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, USB interface. Power supply (Part# 30781753) not included, order separately. Color: Dark gray. Formerly sold as TSP654U-24 GRY.
See Replacement Call for Details
37999510 This part is replaced by 39449660.
TSP600 Series: TSP654, Thermal printing, Auto-cutter, USB interface. Power supply (Part# 30781753) and cables sold separately. Color: White.
See Replacement Call for Details

Star TSP 650 Series: TSP654 Details

SPECIFICATIONS – TSP650

Printer Method

Direct Line Thermal

Print Speed

30 Receipts Per Minute (150 mm/sec)

Printer Case Color

Putty or Gray

Models Available

Tear Bar or Auto Cutter

Print Resolution

203 dpi

Two Color Print Capability

Red & Black / Blue & Black / Green & Black (Two color thermal paper required)

No. of Columns

48 / 64

Font Size

9 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POSâ„¢= 6 + 1 blank allowing an additional character page to be added

Barcodes

9 versions / PDF 417 Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width


80mm standard, Adjustable 58mm with paper guide

0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
Standard
80mm paper = 72mm, 58mm paper = 52mm

Top Margin

13 mm minimum default (3mm selectable via Memory Switch Utility)

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

N/A

Journal Capability

N/A

Label Support

N/A

Power Supply

External; Requires PS60A External Power Supply

Drivers Available

Windowsâ„¢ 2000/XP/Vistaâ„¢, WinCE, WePOS, Windows 2003 Server, OPOSâ„¢, JAVA POSâ„¢, Linux CUPS Supportâ„¢ , MAC OSXâ„¢, POS.Net, USB Vendor Class, Windows 98/ME/NT4 (download only)

WHQL

N/A

Swappable Interfaces

Yes

Connectivity

Serial, Parallel, USB, or Ethernet

Emulation Modes

Star Mode, ESC/POSâ„¢

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions

Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH

Dimensions
Weight:
Auto Cutter Model
Tear Bar Model

142mm(W) x 202(D) x 132(H) mm

TSP654 – 1.72 kg
TSP651 – 1.56 kg

Safety Standards

UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
1 Million Cuts

Included with Printer

Installation CD with Drivers and Configuration Utility, Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll

Warranty

3 Year Limited Manufacturer Warranty (US and Canada)

Options

External Power Supply (PS60A)
Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swappable Interfaces
24V Mobile Power Supply

Swap-A-Star Extended Warranty Program (US)
Extend-A-Star Extended Warranty Program (US and Canada)

The Star TSP 650 Series: TSP654 is also known as the Star Micronics TSP 650 Series: TSP654 .
