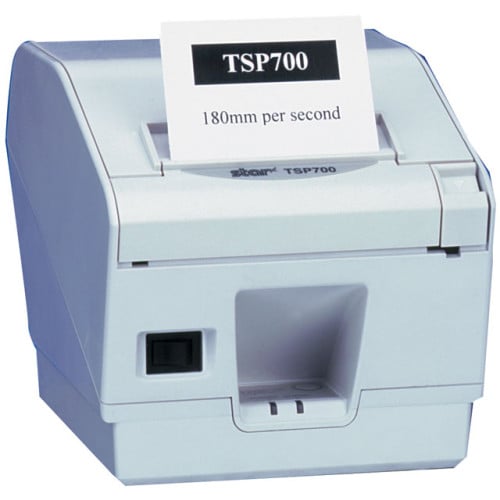

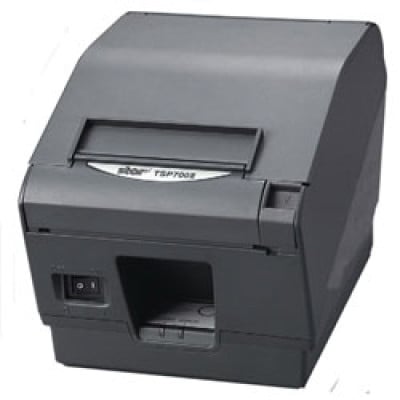

Photo of Star TSP700ii Series: TSP743
Star logo

Star TSP700ii Series: TSP743 Printer

The super fast TSP700ii Series: TSP743 2-color thermal printer is packaged in a small footprint and is ideal for POS, credit card, restaurant, bar code, hospitality, and kiosk applications. Businesses can really benefit from the ultra high print speed. The TSP700ii Series: TSP743 enables you to print receipts with logos and bar codes plus add coupons or rebate certificates while decreasing customer wait time. The TSP700ii Series: TSP743 can store multiple logos or coupons in the printer, allowing you to print a company logo or coupon with every receipt, even when using a serial printer.

Model

Print Method

Interface

Print Width

Print Speed

Color

Form Factor

Magstripe Option ?

Cutter Option

Column Capacity ?

TSP700ii Series: TSP743 Options
Part # DescriptionAvailabilityPriceOrder
39442200 TSP743 ii, Thermal, two-color printing, 7 ips, parallel interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: putty. Formerly sold as TSP743IIC-24. Ships Today $276.72
Retail $525
Save 47%
39442210 TSP743 ii, Thermal, two-color printing, 7 ips, parallel interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray. Formerly sold as TSP743IIC-24 GRY. Ships Today $276.72
Retail $525
Save 47%
39442300 TSP743 ii, Thermal, two-color printing, 7 ips, serial interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: putty. Formerly sold as TSP743IID-24. Ships in 24-48 Hours $276.72
Retail $525
Save 47%
39442310 TSP743 ii, Thermal, two-color printing, 7 ips, serial interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray. Formerly sold as TSP743IID-24 GRY. Ships Today $276.72
Retail $525
Save 47%
37999940 TSP743 ii, Thermal, two-color printing, 7 ips, Ethernet interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: putty. Formerly sold as TSP743IIL-24. Ships in 24-48 Hours $354.92
Retail $685
Save 48%
37999950 TSP743 ii, Thermal, two-color printing, 7 ips, Ethernet interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray. Formerly sold as TSP743IIL-24 GRY. Ships Today $354.92
Retail $685
Save 48%
39442500 TSP743 ii, Thermal, two-color printing, 7 ips, USB interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: putty. Formerly sold as TSP743IIU-24. Ships Today $288.75
Retail $575
Save 49%
37999960 TSP743, Thermal, two-color printing, 7 ips, 802.11b wireless interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: putty. Formerly sold as TSP743IIW-24. Ships in 24-48 Hours $520.66
Retail $895
Save 41%
37999970 TSP743, Thermal, two-color printing, 7 ips, 802.11b wireless interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray. Formerly sold as TSP743IIW-24 GRY. Ships in 24-48 Hours $520.66
Retail $895
Save 41%
37999980 TSP743 ii, Thermal, two-color printing, 7 ips, Port-PoweredUSB interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: puttyy. Formerly sold as TSP743IIPU-24 PoweredUSB Cable. Ships in 24-48 Hours $300.78
Retail $625
Save 51%
37999990 TSP743 ii, Thermal, two-color printing, 7 ips, Port-PoweredUSB interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray. Formerly sold as TSP743IIPU-24 GRY PoweredUSB CB. Ships in 24-48 Hours $300.78
Retail $625
Save 51%
TSP743IIC-24GRY This part is replaced by 39442210.
TSP743, Thermal, two-color printing, 7 ips, parallel interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray.
Ships Today $290.89
Retail $525
Save 44%
TSP743IID-24GRY This part is replaced by 39442310.
TSP743, Thermal, two-color printing, 7 ips, serial interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray.
Ships Today $290.89
TSP743IIL-24GRY This part is replaced by 37999950.
TSP743, Thermal, two-color printing, 7 ips, Ethernet interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray.
Ships Today $354.92
Retail $601.25
Save 40%
TSP743IIU-24GRY This part is replaced by 39442510.
TSP743, Thermal, two-color printing, 7 ips, USB interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: Dark gray.
Ships Today $297.54
Retail $575
Save 48%

Star TSP700ii Series: TSP743 Details

SPECIFICATIONS - TSP700II

Printer Method

Direct Line Thermal

Print Speed

48 Receipts Per Minute (250 mm/sec)

Printer Case Color

Putty or Gray

Model Available

Auto Cutter Only

Print Resolution
(Vertical x Horizontal)

203x203 dpi, 406x203 dpi

No. of Columns

48 / 64 or 58 / 71 (Depends on Paper Width)
Includes 1st column print for lottery applications

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF417, QR, Maxicode Options

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Black Mark Sensor
Paper Low
Maximum Print Width


80mm standard, 82.5 and 58mm with paper guide

0.065 ~ 0.15 mm
Up to 100 mm
"Drop-In & Print"
Standard
Standard
Standard
80mm paper = 72mm, 82.5mm paper = 80mm, 58mm paper = 52mm

Top Margin

13 mm minimum default (3mm selectable via Memory Switch Utility)

External Paper Feed Support

Yes

Auto Cutter

Guillotine (Full or Partial Cut Selectable)

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

N/A

Journal Capability

N/A

Label Support

Yes; Black timing marks between labels required

Power Supply

External; Requires PS60A External Power Supply

Drivers Available

Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry

Digitally Signed (WHQL)

Yes

Swappable Interfaces

Yes

Connectivity

Serial, Parallel, USB, Powered USB, Ethernet, (WIFI available on special order, Call STAR), Virtual Serial Port to USB, Virtual Serial Port to Ethernet

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions

Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20C to 60C
Humidity: 10% - 90% RH

Dimensions
Weight

147 x 148 x 213 (w x h x d)mm
1.75 kg

Safety Standards

UL, C-UL, TA¬V, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Auto Cutter

60 Million Lines
2 Million Cuts

Included with Printer

Installation CD with Drivers, Configuration Utility, and Value Add Utility modeled after futurePRNT Software, Wall Mount Bracket, Interface Cover, 58mm Paper Guide, Power Switch Cover

Warranty

Industry-Leading Full Coverage Bumper-to-Bumper Three Year Warranty

Options

External Power Supply (PS60A)
Splash Proof Cover (SPC-T700)
Kitchen Buzzer (BU01-24-A)
Vertical Stand (VS-T700)
Swappable Interfaces
24V Mobile Power Supply
Swap-A-Star Extended Warranty Program (US and Canada)


HARDWARE FEATURES AND BENEFITS - TSP700II

Ultra High Speed

Can print 48 six inch receipts per minute (250 mm/sec)

High Reliability

MCBF: 60 Million Lines

Ultra Reliable Guillotine Auto Cutter

MCBF: 2 Million Cuts

Small Foot Print

Save precious counter space

"Drop In & Print" Paper Loading

Clamshell design allows for very fast and easy paper loading

Swappable Interface Connections

Future interface upgrades are fast and simple to do. With swappable interfaces, there's no need to purchase a new printer just to upgrade the connection

Included Interface Cover

Helps protect cables from being damaged on the counter top

Horizontal or Vertical Orientation

Use the printer in the orientation that suits you best

Spill / Dust Proof Design

Foam inserts in the printer cavity, a new cover, and removable sticker over the rear feed slot are just some of the new features to help protect the printer and paper from damage from moisture or airborne debris

Rear Feed Slot

Use a larger paper roll mounted behind the printer by feeding it externally through the rear feed slot

Double Resolution Mode

Increase resolution to 406 x 203 dpi for beautifully crisp and clear graphics and bar codes

2D Bar Code Printing

2D bar codes store more information than traditional 1D types and replicate the data multiple times for better scanning reliability. PD417 and QR Code are supported

Wall Mountable

Need more counter space? Create more room by mounting the printer to the wall

Maintenance Counter

Keep track of how many times the auto cutter has cut and the distance that the print head has printed for hardware performance measurables

Digitally Signed Driver (WHQL)

Certified by Microsoft for worry free operation

Installation CD Included in Box

No need to download drivers or utilities

Innovative Value Add Receipt Design Software

Customize and brand receipts to keep customers coming back time and time again with professional graphics (logos, coupons, and merge images)

SOFTWARE FEATURES AND BENEFITS - TSP700II

Simple-to-Use Utilities

Included on Installation CD, free, easy to use

Partial futurePRNT Receipt Redesign Software

Quickly and easily add logos and coupons for professional receipt branding, Reverse Text for vertical orientation, and more!

Logo Utility

Store logos and other graphics for professional receipt branding

Memory Switch Utility

Fine-tune your print outs or print in different languages by enabling, changing, or disabling certain settings

Ethernet Interface Set Up Utility

Setting up and configuring an ethernet printer has never been more quick and easy!


OPTIONS AND ENHANCEMENTS - TSP700II

WiFi Power Pack

The Wifi Power Pack is designed to make any Star LAN interface printer "wireless". Powered by the printer's cash drawer kick port, the WiFi Power pack avoids additional power outlet, eliminating the possibility of tangled cables. The WiFi Power Pack includes a DK-USB power module and a TP Link wireless router.

Part Number: 99250000



External Power Supply
PS60A


The PS60A is a compact power supply that can be set beside or behind the printer or easily hidden away underneath a counter.

Part Number: 30781870



Splash Proof Cover
SPC-T700


The Splash Proof Cover helps to protect the TSP700II from liquid and airborne debris in harsh environments such as kitchens. It easily locks in place over the printer.

Part Number: 39570010



Vertical Stand
VS-T700


To save counter space, mount the TSP700II vertically using the Vertical Stand.

Part Number: 39590510



Kitchen Buzzer / Ticket Alarm
BU01-24-A


The Kitchen Buzzer is designed to connect directly to the RJ11 port on the back of the printer. When a print job is sent to the TSP700II, the buzzer will sound off. This is beneficial for high noise environments like kitchens to alert cooks that orders have been sent to them.

Part Number: 39594000



Swappable Interfaces

Easily upgrade the connection type in the future without purchasing a new printer.

Interfaces Available:

RS232C Serial - IFBD-HD03
Part Number: 39607200

Parallel - IFBD-HC03
Part Number: 39607211

USB - IFBD-HU05
Part Number: 39607510

Ethernet - IFBD-HE07
Part Number: 39607800



Mobile Power Supply

The Mobile Power Supply allows users to put the TSP700II into vehicle applications like printing law enforcement tickets, truck tickets, and more. It converts 12VDC into the required 24VDC to power the printer.


Swap-A-Star Extended Warranty

The Swap-A-Star Extended Warranty Program provides next business day replacement coverage available for a selectable span of 3 or 4 years.



Part Number
Model
Description
39442200
TSP743IIC-24

39442210
TSP743IIC-24 GRY
Thermal, Friction, Cutter, Parallel, Grey, Ext PS (not included)
39442300
TSP743IID-24
Thermal, Friction, Cutter, Serial, Putty, Ext PS (not included)
39442310
TSP743IID-24 GRY
Thermal, Friction, Cutter, Serial, Grey, Ext PS (not included)
37999940
TSP743IIL-24
Thermal, Friction, Cutter, Ethernet (LAN), Putty, Ext PS (not included)
37999950
TSP743IIL-24 GRY
Thermal, Friction, Cutter, Ethernet (LAN), Grey, Ext PS (not included)
37999990
TSP743IIPU-24 GRY PUSB CBL
Thermal, Friction, Cutter, USB, Grey, Powered USB Cable
37999980
TSP743IIPU-24 PUSB CBL
Thermal, Friction, Cutter, USB, Putty, Powered USB Cable
39442500
TSP743IIU-24
Thermal, Friction, Cutter, USB, Putty, Ext PS (not included)
39442510
TSP743IIU-24GRY


TSP743II WIFI
Wifi printer available on special order (call STAR)

TSP743II Wifi 24 GRY
Wifi printer available on special order (call STAR)
Marketing_Materials
TSP700II_Product_Sheet.pdf
307.69 KB
Download
Service_Sheet.pdf
1101.79 KB
Download
The Star TSP700ii Series: TSP743 is also known as the Star Micronics TSP700ii Series: TSP743 .
