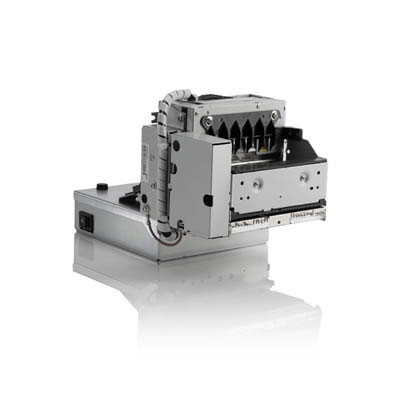

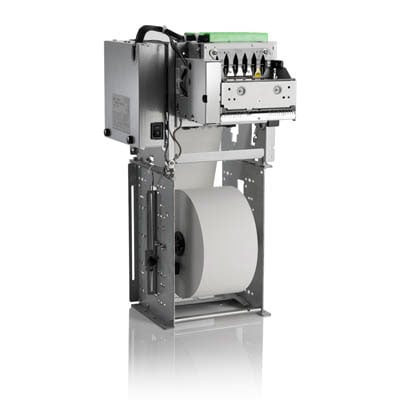

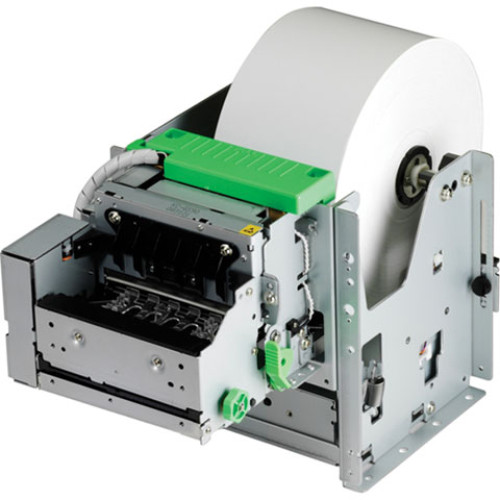

Star TUP 500 Series Printer

With a compact footprint and support for smaller paper widths, the TUP 500 Series is a welcomed addition to Star's kiosk printer line to provide solutions to a great range of applications. The TTUP 500 Series features an industry leading print speed of up to 220 mm/sec and a high reliability at an MCBF of 60 million lines. The innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user. The Presenter also uses Star" document capture technology to retract receipts left by the user, resulting in increased document security and a cleaner operation area. A brand new innovative bezel (snout) option can be directly attached to the presenter to capture the user"s attention with programmable 2-color (red & green) flashing LED lights. The TUP 500 Series features adjustable paper widths of 45 mm to 82.5 mm documents. With the addition of the optional Large Paper Roll Accessory, it supports up to a 10" paper roll for many hours of unattended operation. The TUP 500 Series kiosk printer is ideal for a wide range of applications including public information kiosks, gaming, lottery, web kiosks, and much more.
Questions?
1-888-875-7170
We respond to every email

Model

Item Condition

TUP 500 Series Options
Part # DescriptionAvailabilityPriceOrder
39470200 TUP 542, Direct Line Thermal Kiosk Printer, 203 dpi, 220 mm/second print speed, auto-cutter, 2-color. Requires power supply (Part# 30781753) and Interface Card. Also known as TUP542-24. Non-Cancellable, Non-Returnable, Please call use with any questions. Ships Free Today $401.64
Retail $675
Save 40%
39470000 TUP 592, Direct Line Thermal Kiosk Printer with Presenter, 203 dpi, 220 mm/second print speed, auto-cutter, 2-color. Serial + Parallel + USB + Ethernet interface. Requires power supply (Part# 30781753). Does not include interface board. Compatible interface boards: Ethernet (Part# 39607800), Parallel (Part# 39607211), Serial (Part# 39607200), Serial 9 pin (Part# 39607300), USB (Part# 39607510). Also known as TUP592-24 THERMAL PRINTER. Ships Free Today $420.87
Retail $725
Save 41%

Accessories

Part # DescriptionAvailabilityPriceOrder
30781870 US Power supply, Universal 24 VDC output. replaces (Part# 30781751). Also known as PS60A. Ships Free Today $24.98
Retail $62
Save 59%
39591200 FLASHING LED PRESENTER (SNOUT) Ships Free Today $30.33
Retail $56
Save 45%
39590301 TUP500, RHU-T500 L HOLDER, LARGE CAPACITY PAPER ROLL HOLDER (TUP500), REPLACES 39590300 Ships Free Today $39.42
Retail $80
Save 50%
39607803 Ethernet Interface board for TSP650II, TSP700II, TSP800II, TUP500 Ships Free Today $131.63
Retail $220
Save 40%
39607820 TSP 700ii Series Accessories, Interface Board, Ifbd-Hu07, Usb Interface Board (Tsp650/Tsp700/Tsp800/Tup500/Tup900 Series), Replaces 39607510 Ships Free Today $42.10
Retail $75
Save 43%
39607200 25P, Serial Interface Board for TSP700/800 Series Ships Free Today $34.19
Retail $60
Save 43%
39607211 Interface Board IFBD-HC03, Parallel Interface Ships Free Today $31.70
Retail $60
Save 47%
39607300 IFBD-HN03, Interface Board, Serial Interface
Ships Free in 3-5 Days
$34.19
Retail $65
Save 47%
Recommended Receipt Paper
Star Receipt Paper (37996700-R)
TRF-80-6. 80 mm, 3.15" x 6", Thermal Roll Paper, Also available as a case (Part# 37996700).
Ships Today
$14.59
+ Add to Quote
Star Receipt Paper (37996690)
3.15" x 6" outer diameter Thermal Receipt Paper, 0.09 MM, single roll. Also known as TRF-80-6MG.
Ships in 3-5 Days
$21.24
+ Add to Quote
Star Receipt Paper Rolls (37964040)
TRF-80-6. 80 mm, 3.15" x 6", Thermal Roll Paper, 4 rolls.
Ships in 3-5 Days
$42.40
+ Add to Quote
The Star TUP 500 Series is also known as the Star Micronics TUP 500 Series .
