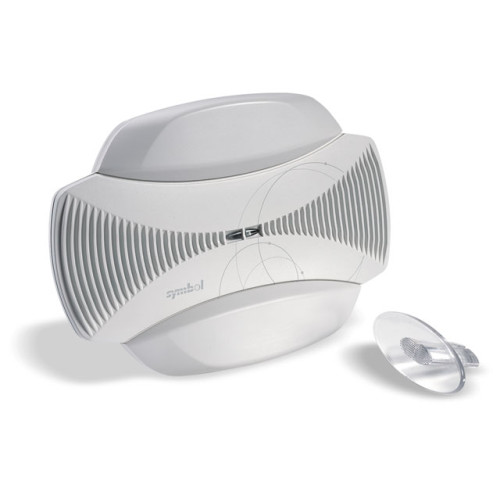

Symbol AP200 Access Point

Feature

Benefit

Tight integration with the WS 5000 and WS2000 Wireless Switch, which centralizes intelligence to the Access Ports

Enables easy addition of features and functionality; ability to expand the wireless LAN without disrupting wireless service

Compact, aesthetic design with flexible mounting options

Enables mounting on a desk, on a wall and on the ceiling—above or below ceiling tiles

Plenum rated housing

Meets fire retardant standards to ensure safe installation in ceilings and other enclosed areas throughout your enterprise

Tamper-proof hardware and software design

Prevents theft of network configuration parameters, without sacrificing flexibility of mounting, even in unsecured areas

Standards-based 802.3af Power-over-Ethernet compatibility

Significantly reduces installation cost and complexity by eliminating the requirement to extend AC or DC power to the Access Port

No configuration required

True plug-and-play right out of the box

Internal and external high power antennas; Integrated 3.5 dBi omni-directional cross polarized diversity antenna or external antenna connectors and suite of 16 antennae

Reduces cost and time of installation; provides the flexibility to modify wireless coverage patterns and increase wireless range as needed in challenging environments

Visible status LED color-coded to IEEE specification. Blue for 802.11b, Amber for 802.11a

Easy viewing of Access Port status — even when mounted above the ceiling tiles

No local firmware to manage (provided by the WS 5000 or WS 2000 Wireless Switch)

Eliminates the cumbersome, time consuming and error prone process of loading traditional access point firmware

Centralized wireless LAN packet processing offloaded to the Symbol's WS 5000 Wireless Switch

Leaner product design, resulting in significant reduction in hardware and management costs; provides a scalable growth model

Multi-BSS and Multi-ESS capability

Ensures highly efficient use of the wireless network by providing multiple Broadcast/Multicast Domains and a true Virtual RF LAN experience

Two built-in Ethernet ports
(in AP 200)

Enables connection or ‘daisy-chaining' of additional Access Ports; reduces cost of extra cabling when upgrading an existing 802.11b Wireless LAN infrastructure

Omni-Directional Antennas
Omni-directional antennas radiate coverage equally in all directions in a 360° coverage pattern on a horizontal plane. The torus-shaped (doughnut-shaped) coverage pattern is ideal for square or fairly square areas.

802.11b

802.11a

• High Performance Fixed Point Dipole 3.5 dBi
• Indoor/Outdoor High Performance OD 5dBi
• Low Profile Ceiling/Surface Mount OD 3 dBi, 4' Coax
• Low Profile Dual Integrated Diversity OD 2dBi, 3' Coax
• PCI Wall and Desk Mount OD Diversity Antenna

• 5.2 GHz High-Performance Fixed Point Dipole
• 5.2 GHz High-Performance Omni-Directional

Directional Antennas
Directional antennas concentrate transmission power in a specific direction, resulting in coverage for a greater distance, but at a lesser angle. The conical-shaped coverage pattern of the directional antenna is similar to that of a flashlight—ideal for elongated areas, corners and outdoor point-to-point applications.

802.11b

802.11a

• Heavy-duty Indoor/Outdoor 65° H-Plane Directional Panel 7.5 dBi
• Indoor 65° H-Plane Diversity Directional Panel 7 dBi
• High Gain Indoor/Outdoor 60° H-Plane Directional Panel 12 dBi
• High gain Indoor/Outdoor 120° H-Plane Directional Panel 11 dBi

• 5.2 GHz High-Performance Flat Panel

Bridge Antennas
Bridge antennas deliver effective long-distance transmission, ideal for communications between two buildings or in a multi-building campus-style environment. Bridge antennas are available in directional and omni-directional, for point-to-point and point-to-multi-point implementations.

802.11b

802.11a

• Heavy-duty Outdoor 35° High-Gain Directional Yagi 15 dBi
• Heavy-duty Indoor/Outdoor 35° High-Gain Directional Panel 14.5 dBi
• Heavy Duty 10° Directional High Gain Parabolic Dish 24 dBi
• Heavy Duty, High Gain Outdoor Mast Mount OD & 8 dBi

Accessories
For a complete installation, Symbol also offers a comprehensive selection of accessories. Kit accessories and connectors provide the necessary tools to customize antenna installation for your wireless LAN.

802.11b

802.11a

• Articulating Ceiling Mount Kits
• Jumpers and Lightning Arrestor Kits

Physical Characteristics

AP 100 (802.11b)

AP 200 (802.11a/b)

Dimensions:

Without mounting hardware:
6.00 in. Diameter x  3.10 in. H/
15.24 cm Diameter x 7.87 cm H
With mounting hardware:
6.12 in. Diameter x 2.04 in. H/
15.54 cm Diameter x 5.18 cm H

AP 200 802.11a/b external antenna connectors

AP 200 802.11a/b internal antennas

10 in. L x 6 in. W x 1.25 in. H
25.4 cm L x 15.24 cm W x 3.18 cm H

10 in. L x 7 in. W x 1.5 in. H
25.4 cm L x 17.78 cm W x 3.81 cm H

Weight:

13 oz. / .36 kg (Or 360 grams)

AP 200 802.11a external antenna connectors

AP 200 802.11a/b external antenna connectors

AP 200 802.11a/b internal antennas

1.7 lbs. / 0.77 kg

1.9 lbs. / 0.86 kg

2.2 lbs. / 1.00 kg

Available Mounting Configurations

Ceiling-Mount (above and below tile); Wall-Mount; Desk-Mount

Ceiling-Mount (above and below tile); Wall-Mount; Desk-Mount

Plenum Rated Housing:

Certified to UL 2043 - OK

Status LED:

Provides three different modes of visual status information

2 LEDs with multiple modes indicating presence of 802.11a/802.11b, Power, Adoption and Errors

Wireless Data Communications

AP 100 (802.11b)

AP 200 (802.11a)

AP 200 (802.11b)

Data Rates Supported:

1, 2, 5.5 and 11 Mbps

6, 9, 12, 18, 24, 36, 48 and 54 Mbps

1, 2, 5.5 and 11 Mbps

Network Standard:

802.11b

802.11a

802.11b

Wireless Medium:

Direct Sequence Spread Spectrum (DSSS)

Orthogonal Frequency Division Multiplexing (OFDM)

Direct Sequence Spread Spectrum (DSSS)

Uplink:

Autosensing 10/100Base-T Ethernet

Autosensing 10/100Base-T Ethernet

Frequency Bands

AP 100 (802.11b)

AP 200 (802.11a)

AP 200 (802.11b)

FCC:

2.412 to 2.462 GHz

5.150 to 5.250 (UNI -1);
5.250 to 5.350 (UNI -2)
5.725 to 5.825 (UNI -3)
5.725 to 5.850 (ISM)

2.412 to 2.462 GHz

EU:

2.412 to 2.472 GHz

5.150 to 5.250 GHz
5.150 to 5.350 GHz

2.412 to 2.472 GHz

(Country Specific)

Japan:

2.412 to 2.484 GHz

5.150 to 5250 GHz

2.412 to 2.484 GHz

Israel:

2.418 to 2.457 GHz

Not yet Approved

Not yet Approved

Mexico:

2.450 to 2.4835 GHz

Not yet Approved

Not yet Approved

Sri Lanka:

2.400 to 2.430 GHz

Not yet Approved

Not yet Approved

Operating Channels:

ETSI: 13; Israel: 7; North America: 11; TELEC (Japan): 14; MII: 11

ETSI: 4; North America: TBA; TELEC (Japan): 4

ETSI: 13; Israel: 7; North America: 11; TELEC (Japan): 14; MII: 11

Available Transmit Power Settings:

Max (65 mW, 100mW EIRP w int. ant.), 25 mW, 8 mW, 3 mW, 1 mW

Max 75mW, 35mW, 8.5mW, 8mW, 4mW

Max (75 mW), 45 mW, 16 mW, 8.5 mW, 2.9mW

Nominal Transmitter Power:

17 dBm +/- 1.5 dBm

17.5 dBm +/- 1.0 dBm at 6 Mbps to 18 Mbps
15.5dBm +/- 1.0 dBm
at 24 and 36 Mbps
14.5 dBm +- 1.0dBm
at 48 Mbps
13.5 dBm +/- 1.0 dBm at 54 MBPS

18.2 dBm +/- 1 dBm

Receiver Sensitivity:

11 Mbps @ -84dBm
5.5 Mbps @ -87dBm
2 Mbps @ -88dBm
1 Mbps @ -90dBm

54 Mbps @-73 dBm
48 Mbps @ -77 dBm
36 Mbps @ -80 dBm
24 Mbps @-82 dBm
18 Mbps @ -84 dBm
12 Mbps @-86 dBm
9 Mbps @ -88 dBm
6 Mbps @-89 dBm

-85 dBm @ 11 Mbps
-89 dBm @ 5.5 Mbps
-90 dBm @ 2 Mbps
-92 dBm @ 1 Mbps

User Environment

AP 100 (802.11b)

AP 200 (802.11a/b)

Operating Temperature:

-4°F to -131°F / -20°C to 55°C

-4°F to 131°F / -20°C to 55°C

Storage Temperature:

0°F to 167°F / -40°C to 75°C

0°F to 167°F / -40°C to 75°C

Operating Humidity:

5%-95% (non-condensing)

5%-85% (non-condensing)

Operating Altitude:

2.4 kM (Max)

8000 ft. @ 82°F / 28°C

Storage Altitude:

4.6 kM (Max)

15000 ft. @ 53°F / 12°C

Electrostatic Discharge:

+/- 15 kV (Air)

+/- 15 kV (Air)

Power Specifications

AP 100 (802.11b)

AP 200 (802.11a/b)

Operating Voltage:

48 VDC @ 4W (Typical), 36 VDC to 57 VDC (Range)

48VDC @ 10W (Typical), 36VDC to 57VD

Operating Current:

10 mA to 150 mA

190mA @ 48VDC

Integrated Power Over Ethernet Support:

Standards-based IEEE 802.3af (Class 0 Power), Cisco Proprietary, and Symbol Proprietary

Standards-based IEEE 802.3af (Class 0 Power) and Symbol Proprietary

Integrated Antenna Specifications

AP 100 (802.11b)

AP 200 (802.11a)

AP 200 (802.11b)

Type:

Cross Polarized, Omni-Directional Diversity Antenna

Diversity Antenna for transmit diversity. Omni-directional variation:
  -3 dB 200°/200°
  -6 dB 315°/315°

Diversity Antenna.
Omni-directional variation:
  -3 dB 200°/200°
  -6 dB 315°/315°

Band:

2.4GHz to 2.5GHz

Capable of operation from 5.17GHz to 5.805 GHz. Actual operating frequencies depend on regulatory rules and certification agency

2.4 GHz to 2.5 GHz

VSWR:

Less than 1.5

Less than 2.0

Less than 1.5

Gain:

3.5 dBi

2.5 dBi

2.5 dBi

Beam Width:

E-Plane-120° avg

E-Plane 150°/70°

E-Plane 150°/70°

H-Plane-95° avg

H-plane 85°/70°

H-Plane 85°/70°

Diversity:

Two (2) feeds with polarization: Dual Linear (90 orthogonal) and Spatial Separation (_=0.4 at 2450MHz)

Two (2) feeds with polarization:
Dual Linear (90) and spatial Separation at C_ >1.0 at @ 5500 mHz.

Two (2) feeds with polarization:
Dual (90°) and spatial Separation at C_>1.0 at 2450 mHz.

Regulatory

AP 100 (802.11b)

AP 200 (802.11a)

AP 200 (802.11b)

Product Safety Certifications:

cUL 1950, CSA, UL 2043, VDE-GS

Radio Approvals:

World-Wide including FCC, Industry Canada, CE, TELEC, C-Tick

FCC, Industry Canada, CE, TELEC, C-Tick, Hong Kong, Singapore

FCC, Industry Canada, CE, TELEC, C-Tick, Hong Kong, Singapore
