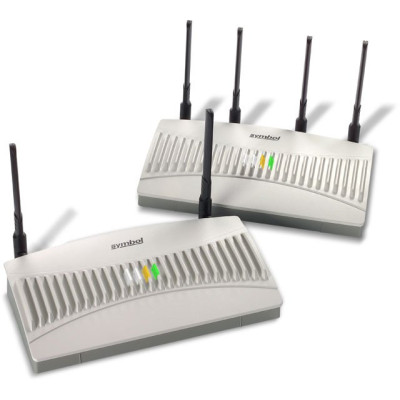

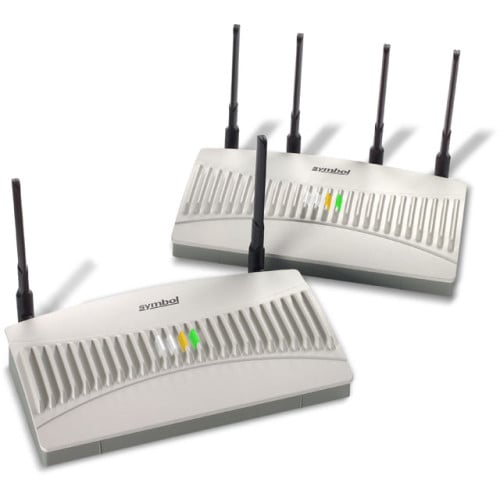

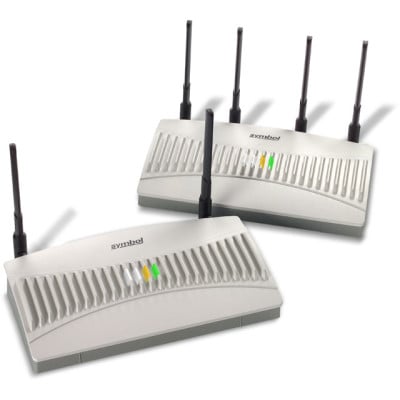

Photo of Symbol AP5131
Symbol logo

Symbol AP5131 Access Point

The Symbol AP5131 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Designed to address the wireless and wired connectivity needs of the small office or retail outlet, the AP5131 provides a single-box solution that integrates all services required to extend secure broadband access to mobile users. With the ability to connect local users to a remote private network via a secured IPSec link, the AP5131 is ideal for deployment in branch offices or at telecommuter sites for enterprise-class WLAN performance and secure connectivity of wired clients. The AP5131 integrates a Router and DHCP Server for local LAN connectivity, a configurable stateful inspection firewall for LAN isolation, a VPN endpoint for secure backhaul connectivity, and a QoS Engine for superior performance of real-time video and voice applications. The AP5131 is available in single or dual-radio configuration. The dual-band version is able to support simultaneous 802.11a and 802.11b/g data services up to 54 Mbps in both the 2.4 and 5 GHz bands, or a combination of data and full-band Rogue AP detection services. The single-radio version of the AP5131, designed for deployments that require only one band of service, allows the administrator to select the band of operation, 802.11a or 802.11b/g, as a configuration parameter in the management interface.
AP5131 Options
Part # DescriptionAvailabilityPriceOrder
SNB-5131FL-P-1 AP 5131, Access Point Bundle: 1 AP5131 Sensor (Part# AP-5131-13040-Ww) & External Dual-Band Paddle Antennas (Part# Ml-2452-Apa2-01), 1 Base Wips License (Part# Ad-Snfl-P-1), Requires 1 Year Service Agreement For Each Component. Check Availability Call for Details
AP-5131-40023-WWR This part is replaced by AP-6521-60010-US.
AP 5131, Single Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF) and 2 dual-band antennas (Part# ML-2452-APA2-01).
See Replacement Call for Details
AP-5131-40023-WW This part is replaced by AP-5131-40023-WWR.
AP 5131, Single Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF). Order 2 Dual-band Antennas (Part# ML-2452-APA2-01) separately.
See Replacement Call for Details
AP-5131-40023-MCRS This part is replaced by AP-6532-66030-US.
AP 5131, AP-5131 Access Point Includes: Line Cord SI Bundle
See Replacement Call for Details
AP-5131-40023-GR AP 5131, Wireless Access Point, TAA sales only, 802.11A/B/G single radio. Includes 2 dual band dipole antennas and PoE power supply. (Requires line cord) Check Availability Call for Details
AP-5131-40022-WW This part is replaced by AP-6521-60010-WR.
AP 5131, Single Radio Kit includes 2 Dual-band Antennas (Part# ML-2452-APA2-01)
See Replacement Call for Details
AP-5131-40021-WWR This part is replaced by AP-6521-60020-WR.
AP 5131, Single Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF). Antennas not included. See accessories.
See Replacement Call for Details
AP-5131-40021-WW This part is replaced by AP-5131-40021-WWR.
AP 5131, Single Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF)
See Replacement Call for Details
AP-5131-40020-WW This part is replaced by AP-6521-60020-WR.
AP 5131, Single Radio Only. If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. See accessories.
See Replacement Call for Details
AP-5131-40020-D-WR This part is replaced by AP-6521-60020-WR.
AP 5131, AP-5131 Access Point 802.11A/B/G Dependent, Single Radio. (Switch required for use)
See Replacement Call for Details
AP-5131-13043-WWR This part is replaced by AP-6532-66030-WR.
AP 5131, Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF) and 4 Dual-band Antennas (Part# ML-2452-APA2-01). Requires AC Line cord, if using in the USA order (Part# 23844-00-00R).
See Replacement Call for Details
AP-5131-13043-WW This part is replaced by AP-5131-13043-WWR.
AP 5131, Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF) and 4 Dual-band Antennas (Part# ML-2452-APA2-01)
See Replacement Call for Details
AP-5131-13043-GR AP 5131, AP-5131 Access Point (Dual Radio, Power supply, Antenna and TAA) Check Availability Call for Details
AP-5131-13042-WW This part is replaced by AP-6532-66030-US.
AP 5131, Dual Radio Kit includes 4 Dual-band Antennas (Part# ML-2452-APA2-01) If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. See accessories.
See Replacement Call for Details
AP-5131-13041-WWR This part is replaced by AP-6532-66040-WR.
AP 5131, Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF). Antennas not included.
See Replacement Call for Details
AP-5131-13041-WW This part is replaced by AP-5131-13041-WWR.
AP 5131, Dual Radio Kit includes 802.3af PoE Power supply (Part# AP-PSBIAS-T-1P-AF)
See Replacement Call for Details
AP-5131-13040-WW This part is replaced by AP-6532-66030-US.
AP 5131, Dual Radio: Radio Only If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. Antennas not included. See accessories.
See Replacement Call for Details
AP-5131-13040-D-WR This part is replaced by AP-6532-66040-WR.
AP 5131, AP-5131 Access Point, Dependent, 802.11A/B/G Dual Radio. (Switch required for use)
See Replacement Call for Details

Symbol AP5131 Details

Compare AP5131 Access Points

Part Numbers Single Radio
802.11a or 802.11b/g
(not at the same time)
Dual Radio
802.11a & 802.11b/g
(at the same time)
Dual Band antenna PoE supply
AP-5131-40020-WW
AP-5131-40021-WWR
AP-5131-40022-WW   • (x2)
AP-5131-40023-WWR   • (x2)
AP-5131-13040-WW
AP-5131-13041-WWR
AP-5131-13042-WW   • (x4)
AP-5131-13043-WWR   • (x4)

AP5131 Access Point

Enterprise-class 802.11a/b/g Access Point: Combination Wired/Wireless Networking for Branch Offices and Small Businesses

Cost-effective, secure, high-performance wired and wireless connectivity

Designed for small offices and retail locations, the AP5131 delivers wired and wireless networking with enterprise class performance and security in a single device. From telecommuters working at home to remote employees in branch offices and more, this easy-to-deploy solution offers the flexibility to connect to the corporate private network, the Internet and more. Whether your employees utilize a wired desktop or wirelessly-enabled laptop, the AP5131 delivers the speed and functionality to support the most demanding applications, including real-time video and voice. This all-in-one solution delivers a new level of cost-efficiency and networking simplicity for remote workers. The need for IT expertise in smaller locations - and the need to purchase and manage multiple pieces of equipment - is eliminated through the built-in router, stateful inspection firewall, VPN, DHCP server, QoS engine, and more. Support for IEEE wireless networking standards and compliance with the EU's RoHS Directive ensures ease of integration into locations around the world.

Secure dual-radio 802.11a/b/g Architecture

Available with either one or two dual-band radios, the AP5131 offers the flexibility to best meet your wireless LAN networking and security needs. In the event you only need to support one band, the low-cost single radio version can be configured to support either 802.11a or 802.11b/g wireless networking. The dual radio version can be configured to support both 802.11a and 802.11b/g wireless networks - or single-band data services and full-band rogue AP detection services, providing an additional level of security through the instant discovery of any unauthorized users. And a complete suite of dual and single-band antennas provides the versatility to obtain radio coverage in nearly any environment, with a minimal number of access points.

Rugged mechanical design

Engineered for rugged durability, the AP5131 can be utilized in nearly any location - from a retail store to a harsh industrial environment. A variety of options ensure fast, easy, and cost-efficient installation. The device can be mounted either above or below suspended-ceiling tiles without mounting hardware, on the wall or simply placed on a desk. And with support for standards-based 802.3af Power-over-Ethernet, the need to run power to the device - and the associated wiring costs - are eliminated.

Enterprise-class wired and wireless security

Compliance with industry standards provides enterprise level security for your wired and wireless devices, as well as information transmitted over the air and over the wire. Devices connected to the WLAN and wireless transmissions are secured via 80211i, Wi-Fi, WPA and WPA2 authentication. Wireless users moving throughout your facility enjoy secure fast roaming with Symbol's KeyGuard and Kerberos. Communications with the corporate remote network are secured through the VPN and support for the IPSec protocol and triple-DES encryption. And wired devices are secured through support for 802.1x.

Support for multimedia applications

From simple to real-time demanding rich multimedia applications, the AP5131 delivers reliable performance. The Wi-Fi Multimedia (WMM) standard for Quality of Service enables you to take advantage of low cost voice via Voice-over-IP, offer customers new services via a multi-media kiosk, enable employees to use video conferencing, and more.

Comprehensive remote management and monitoring

Symbol's Mobility Services Platform (MSP) delivers a new level of management simplicity and flexibility for the AP5131. This powerful solution offers a centralized intuitive web-based interface for convenient anytime, anywhere management, enabling either local non-technical staff or the IT professional staff in your network operation center (NOC) to easily manage and monitor one or all AP5131 Access Points. And Symbol Enterprise Mobility Services offers comprehensive support and technical expertise to design, deploy and maintain successful mobility solutions.

Features and Benefits Matrix
Feature Benefit
WAN and LAN Ethernet ports All-in-one solution for wired and wireless networking
Integrated router, firewall and DHCP server Eliminates need to purchase and maintain multiple pieces of equipment
Dual-radio, dual-band design; 802.11a/b/g in 2.4/5 GHz bands Ability to work with any standards-based IEEE wireless LAN
Triple methodology Rogue AP Detection: on-channel, mobile unit and dedicated radio dual-band scanning Protects network by instantly identifying unauthorized users
Industrial-grade mechanical design, UL 2043 Plenum rating Deployment flexibility including harsh environments with extended temperature range
Supports 802.11i, WPA2 and WPA; IPSec with triple-DES encryption End-to-end enterprise class security for transmission of data on the air and on the wire
Wi-Fi Multimedia (WMM) QoS and Voice Prioritization Superior radio performance for mission critical applications including voice and video
802.3af Power-over-Ethernet Eliminates the need and associated cost of installing cabling and outlets to provide power
Java web-based graphical user interface; Symbol Mobility Services Platform (MSP); SNMP v3; command line interface (CLI) Flexible management options; easy-to-use anytime anywhere management
Mounts above or below ceiling tile, on wall, on desk Flexibility to install where convenient, including invisible installation above ceiling tile
RoHS compliance Meets latest EU environmental standards
AP5131 Specification Highlights
Physical Characteristics
Dimensions: 5.32 in. L x 9.45 in. W x 1.77 in. H/135 mm L x 240 mm W x 45 mm H
Weight: 1.95 lbs/0.884kg
Housing: Metal, plenum-rated housing (UL2043)
Available Mounting Configurations: Desk-top, above drop ceiling, under ceiling, wall
LEDs: 4 top mounted LEDs, 2 bottom mounted LEDs, with multiple modes indicating 802.11a/802.11g activity, power, adoption and errors
Uplink: 2 ports (WAN, LAN) Auto-sensing 10/100Base-T Ethernet
User Environment
Operating Temperature: -4°F - 122°F/-20°C to 50°C
Storage Temperature: -40°F to 158°F/-40°C to 70°C
Operating Humidity: 5 to 95% RH non-condensing
Operating Altitude: 8000 ft./2438m @ 82°F/28°C
Storage Altitude: 15000 ft./4572m @ 53°F/12°C
Electrostatic Discharge: 15kV air, 8kV contact
Power Specifications
Operating Voltage: 48V DC
Operating Current: 200mA
Integrated Power OverEthernet Support: 802.3af on LAN Port
Radio Specifications
Wireless Medium: Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM)
Network Standards: 802.11a, 802.11b, 802.11g, 802.3
Data Rates Supported: 1, 2, 5.5, 6,9, 11, 12, 18, 24, 36, 48, 54 Mbps
Operating Channels: Chan 8-169 (5040-5845 MHz)
(4920-4980 MHz) Japan only Chan 1-13 (2412-2472 MHz)
Chan 14 (2484 MHz) Japan only
Actual operating frequencies depend on regulatory rules and certification agency
Operating Bands: FCC 2.412 to 2.462 GHz 5.150 to 5.250 (UNII -1); 5.250 to 5.350 (UNII -2) 5.725 to 5.825 (UNII -3) 5.725 to 5.850 (ISM)
EU 2.412 to 2.472 GHz 5.150 to 5.250 GHz 5.150 to 5.350 GHz 5.470 to 5.725 GHz (Country Specific)
Japan 2.412 to 2.484GHz 4.900 to 5.000 GHz 5.150 to 5.250 GHz
Receiver Sensitivity Radio .11a (dBm) 10% PER for 1000 bytes
IEEE 802.11a sect 17.3.10.1 (MIN) & 17.3.10.4 (MAX)
6 Mbps -91
9 Mbps -89
12 Mbps -87
18 Mbps -83
24 Mbps -81
36 Mbps -78
48 Mbps -74
54 Mbps -73
Radio .11g (dBm) @ 10% PER for 1,000 Octets
IEEE 802.11g sect 19.5.1 (MIN) & 19.5.3 (MAX )
6 Mbps -89
9 Mbps -88
12 Mbps -85
18 Mbps -82
24 Mbps -80
36 Mbps -77
48 Mbps -72
54 Mbps -70
Radio .11b (dBm) @ 8% PER for 1,024 Octets 11 Mbps -84
5.5 Mbps -88
2 Mbps -90
1 Mbps -94
Available Transmit Power Settings: 4-20 dBm
Regulatory
Standards Compliance: Wi-Fi: 802.11a/b/g, WPA2, WMM
Product Safety Certifications: UL / cUL 60950-1, IEC / EN60950-1, UL2043, TUV GS
Radio Approvals: FCC (USA), Industry Canada, CE (Europe), TELEC (Japan)
The Symbol AP5131 is also known as the Symbol Technologies AP5131 .
