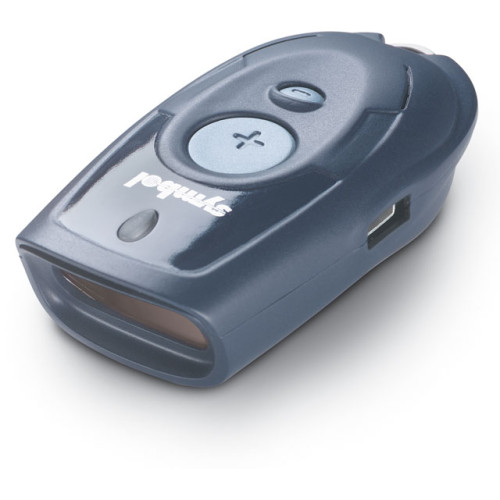

Photo of Symbol CS 1504
Symbol logo

Symbol CS 1504 Scanner

While Web access has given customers the freedom to shop anytime the CS 1504 Consumer Memory Scanner from Symbol Technologies gives them true mobility to shop anywhere. Another breakthrough in consumer barcode scanning technology from Symbol the CS 1504 Consumer Memory Scanner enables customers to capture barcodes on retail merchandise in order to create a shopping list purchase an item or simply link to the Web for further content about the item of interest. Anyone can use this pocket-sized scanner to read barcodes found on merchandise or in catalogs from virtually anywhere. Small and lightweight enough to fit in a pocket or purse customers can use this scanner at home in the store or on-the-go. It makes routine tasks such as reordering groceries or office supplies quicker and easier than ever before. It's ideal for list-making and gift-registry applications and can be a great incentive for your preferred customers.
  • RS-232/USB Connectivity - Easily connects to legacy and newer host systems
  • Small, Ergonomically Designed - Fits onto a key chain, easily carried in pocket or purse
  • Symbol technology and SymbolCare services - Award-winning technology 25 years of experience
  • Time/Date Stamp - Each barcode is time/date stamped to assist with data mining or organizing specific tasks

Form Factor


Scanner Capability

Scan Pattern

Scanner Type


Included Cables ?


CS 1504 Options
Part # DescriptionAvailabilityPriceOrder
CS1504-I100-0002R CS1504, Serial interface kit and serial to USB converter cable. Ships Free Today $106.81
CS1504-I100-01R CS1504, Scanner with serial interface kit. See Replacement Call for Details
CS1504-I100-01 CS1504, Consumer Memory Scanner (Batch Keychain Scanner with Serial Interface) See Replacement Call for Details
CS1504-I100-0002 CS1504, Consumer Memory Keychain Scanner (Class II, Hardware Revision, Standard, No Direct Cable Option and 2-cable USB solution 25-44301-01 and 50-16000-386) See Replacement Call for Details

Symbol CS 1504 Details

Performance characteristics

Battery life
Up to 5, 000 scans on a fresh set of batteries

Interfaces supported
RS-232, USB

Scan pattern
Single line

Decode capability

Depth of field
1 to 8 in (2.5 to 20.3 cm) on 13 mil (100% UPC/EAN)


Physical characteristics

2.5 in. L x 1.5 in. W x .75 in. H / 6.35 cm L x 3.81 cm W x 1.90 cm H


With batteries: 1.2 oz. /34 gm


Regulatory specifications

Laser/LED safety
EN 60825-1, IEC 60825-1, 21CFR1040.10

RoHS Directive 2002/95/EEC

FCC Part 15 Class B, ICES 003 Class B

Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

User environment

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Storage temperature
-4° to 140° F /-20° to 60°C (without batteries)

Operating temperature
41° to 104° F /5° to 40° C

The Symbol CS 1504 is also known as the Symbol Technologies CS 1504 .
