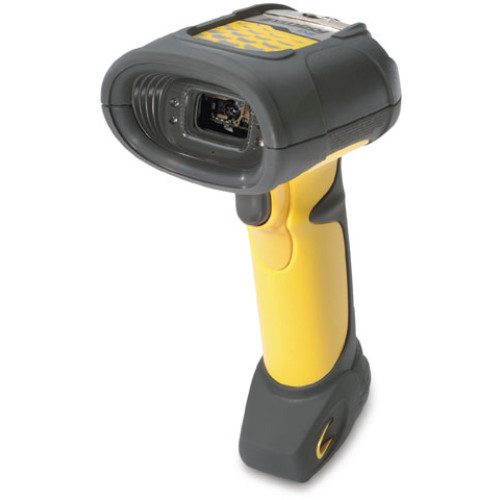

Symbol DS3478 Scanner

This product has been discontinued. It is replaced by the Symbol DS 3578.

The Symbol DS3478 rugged, cordless scanners use digital imaging technology to accurately capture direct part marks (DPM), and 1D and 2D barcodes. The DS3478 series is available in three models. The DS3478-SF is ideal for scanning 1D and 2D barcodes. For high-density 2D matrix codes, choose the DS3478-HD. For DPM, select the DS3478-DP. Two-position "Smart" focus technology, unique to Motorola, provides the flexibility to meet scanning needs in a wide range of applications and environments. Omnidirectional scanning, available on all models, lets operators quickly capture symbols from any angle.

Questions?

1-888-875-7170

Email We respond to every email

Information:	Specifications \| Ask a question \|
Accessories:	Accessories/Options \| Symbol DS3478 service contract \|

DS3478 Options

Part #	Description	Availability	Price
DS3478-SFBU0100UR	DS3478, USB kit with Smart Focus. Includes cradle, power supply and USB cable. Color: Yellow/Black.	Check Availability	Call for Details
DS3478-SF20145WR	DS3478, Imager only with Smart Focus. Color: Yellow/Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories. This is a custom part.	Check Availability	Call for Details
DS3478-SF20005WW	This part is replaced by DS3478-SF20005WR. DS3478, Imager only with Smart Focus. Color: Yellow/Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories	See Replacement	Call for Details
DS3478-SF20005WR	This part is replaced by DS3578-SR20005WR. DS3478, Imager only with Smart Focus. Color: Yellow/Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories.	See Replacement	Call for Details
DS3478-HD20012WW	This part is replaced by DS3478-DP20005WR. DS3478, Scanner (DPM digital), cordless, proprietary. Color: Twilight Black/Yellow	See Replacement	Call for Details
DS3478-HD20005WR	This part is replaced by DS3578-HD20005WR. DS3478, Imager only with High Density reading. Color: Yellow/Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories.	See Replacement	Call for Details
DS3478-DP20005WR	This part is replaced by DS3578-DP20005WR. DS3478, Imager only with Direct Part Mark reading. Color: Yellow/Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories.	See Replacement	Call for Details

Symbol DS3478 Details

PHYSICAL CHARACTERISTICS

Color	Twilight black, Yellow

Cordless	Yes

Dimensions	7.34 x 4.82 x 2.93 in. (18.65 x 12.25 x 7.43 cm) H x W X D

Handheld	Yes

Weight	14.6 oz. (414 g)

PERFORMANCE CHARACTERISTICS

Decode capability	1D/PDF417, See data sheet for full list of supported symbologies, 2D, DPM

Depth of field	1 in. to 14 in. (2.5 cm to 35 cm) on 13 mil (100% UPC/EAN)

Interfaces supported	IBM, Keyboard wedge, RS-232, Synapse, USB, Wand

Pitch	+/- 60 degrees from normal

Roll (Tilt)	+/- 50 degrees from normal

Scan pattern	Omni-directional

Skew (Yaw)	+/- 180 degrees from normal

Technology	Imager

IMAGING CHARACTERISTICS

Image resolution (pixels)	640 x 480

RADIO SPECIFICATIONS

Radio type	Bluetooth

REGULATORY SPECIFICATIONS

EMC	EN 301 489-1, EN 301 489-17, IEC 60601-1-2, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

Electrical Safety	UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Environmental	RoHS Directive 2002/95/EEC

Laser Safety	EN 60825-1, IEC 60825-1, 21CFR1040.10

RF Exposure	EN 50360, EN 50361, FCC Part 2, OET Bulletin 65, RSS102

Radio	EN 300 328

USER ENVIRONMENT

Ambient light immunity	Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight.Outdoor: 10,000 foot-candles/107,600 Lux

Drop specifications	Unit functions normally after repeated 6.5 ft. (2 m) drops to concrete

Environmental sealing	IP65

Operating temperature	32? to 122?F (-0? to 50?C)

Storage temperature	-40? to 140?F (-40? to 60?C)
