Digital Scanners
Capture Data and Images with One Multi-Use Scanning Device
The from Symbol Technologies provides
unmatched performance in the digital scanning of images and
one-dimensional (1D) and two-dimensional (2D) bar
codes. Built to read bar
codes omni-directionally, the
improves productivity for all data
capture activities across your enterprise.
These digital scanners offer true flexibility. With the optional
Intellistand, you can automatically switch between hands-free and
hand-held scanning without having to scan a programming bar
code, saving time and improving
efficiency.
Increase Productivity by Reducing Scanning and Decoding
Times
The omni-directional scanning capabilities of the
make the tasks of scanning and decoding
simple - just point and shoot. No matter how a bar
code is oriented, the
delivers a quick, accurate read. The
intuitive, laser-generated aiming pattern indicates the full
scanning field for additional scanning and decoding ease, leading
to improved productivity. With a wide working range, the
improves throughput in the most
challenging data capture environments. More items get scanned with
less time spent preparing to scan or rescanning after errors.
Experience Laser-Like Scanning with the Benefits of
Digital
As the supply chain expands, so does the need for tracking more
information about each item. By accurately reading 2D and 1D
symbologies and capturing images, the
helps you manage mixed-use reading requirements without any add-on
devices. Its laser-like read rates and unmatched quality let you
capture barcodes quickly, improving
overall productivity.
Cost-Effective Digital Scanner Meets Needs of Today and
Tomorrow
As scanning requirements continue to change, the
is built to support those changes. It
connects to a range of hosts with a single device, letting you use
your current system while allowing for migration in the future -
and that protects your investment.
The provides accurate and
cost-effective code-reading capabilities for retail, light
manufacturing, government, healthcare, postal and lottery
applications. In addition to advanced data capture technology,
Symbol's end-to-end solutions integrate ruggedized mobile computers
and scanners, wireless infrastructure, enabling software and
high-ROI applications from our business partners. Symbol Enterprise
Mobility Services are designed to ensure that every aspect of your
mobility solution - from defining your business requirements to
ongoing service and support - works seamlessly and at maximum
efficiency.
Features
|
Benefits
|
Unmatched decoding performance on 2D and 1D symbologies
|
Increases productivity by reducing the time it takes to
scan/decode
|
Omni-directional scanning
|
Increases throughput by eliminating the need to orient bar
codes to the scanner
|
Integrated barcode and image
capture
|
Accurately scans all items with one device
|
Wide working range
|
Performs equally well from a distance or close-up
|
Laser-generated aiming pattern
|
Enables quick and accurate data capture
|
Optional Intellistand
|
Allows instant switching between handheld and hands-free
scanning
|
Sub-second image transfer
|
Delivers faster capture and transfer of images than competitive
products
|
CCD digital scanning technology
|
Results in laser-like performance in a digital scanner
|
|
Specification Highlights
Dimensions
|
6.55 in. H x 2.82 in. W x 4.72 in. D
16.64 cm H x 7.16 cm W x 11.99 cm D
|
Weight (without cable)
|
6.04 oz./181.4 gm
|
Input Voltage
|
5 volts +/- 10%
|
Operating Current
|
250mA (average)
|
Power Sources
|
Depending on host:
•Host power
•External power supply
|

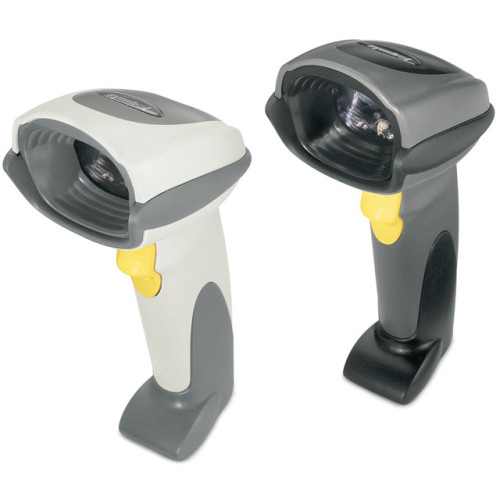

Colors
|
Cash Register White or Twilight Black
|
|
Performance Characteristics
|
|
Light Source
|
650 nm visible laser diode
|
Resolution
|
640 x 480
|
Minimum Element Width
|
5 mil/0.127 mm
|
Nominal Working Distance
|
From 1 in./ 2.5 cm to 14 in. /35 cm on 100% UPC/EAN symbols
|
Print Contrast
|
25% minimum reflective difference
|
Roll (Tilt) 1
|
+/- 180 degrees from normal
|
Pitch 2
|
+/- 60 degrees from normal
|
Skew (Yaw) 3
|
+/- 50 degrees from normal
|
|
1D Codes
|
UPC.EAN, UPC.EAN with Supplementals, UCC.EAN 128, JAN 8 & 13,
Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128
Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5,Code
93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS
variants
|
2D Codes
|
PDF417, microPDF417, MaxiCode, DataMatrix (ECC 2000), Composite
Codes, QR Code
|
Postal Codes
|
U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian
Postal, Dutch Postal
|
Interfaces Supported
|
RS232, Keyboard Wedge, Wand Emulation, Scanner Emulation, IBM
468X/469X, USB and Synapse
|
|
Operating Temperature
|
32° to 122° F/0° to 50° C
|
Storage Temperature
|
-40° to 158° F/-40° to 70° C
|
Humidity
|
5% to 95% relative humidity, noncondensing
|
Drop Specifications
|
Multiple 6-foot (1.8 m) drops to concrete
|
Ambient Light Immunity
|
Immune to direct exposure of normal office and factory lighting
conditions, as well as direct exposure to sunlight.
|
Sunlight
|
10,000 ft. candles/107,644 LUX
|
Electrostatic Discharge
|
Conforms to 15 kV air discharge and 8 kV of contact
discharge
|
|
Hands-Free Intellistand
|
20-66483-01, Cash Register White; 20-66483-02, Twilight
Black
|
|
Electrical Safety
|
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
|
Laser Safety
|
CDRH Class II, IEC Class 2
|
EMI/RFI
|
FCC Part 15 Class B, ICES-003 Class B, European Union EMC
Directive, Australian SMA
|
|
1 - Roll (Tilt): Controlled by rotating the wrist
clockwise or counterclockwise
2 - Pitch: Controlled by dropping or raising the
wrist
3 - Skew (Yaw): Controlled by rotating the wrist from
left to right or vice versa
|
|
