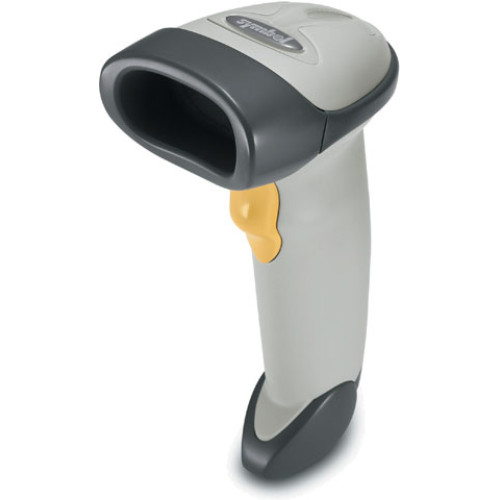

Symbol LS2208 Scanner

LS2208 Features

LS2208 Benefits

Durable scan element design

Improved scanning performance without friction or wear to protect your hardware investment

Working range: contact to 17 in./43 cm on 100% UPC/EAN symbols

Improves user productivity

Multiple interfaces on-board

Ensures flexible connectivity, allowing for host "future proofing"

Fast performance at 100 scans per second

Increased productivity resulting in shorter check-out lines and better customer service

Reduced Space Symbology® (RSS)

Compatible with emerging symbology to leverage your hardware investment

Global Trade Item Number™ (GTIN™) Compliant

Capable of decoding and transmitting 14-digit GTINs where appropriate

Advanced Data Formatting (ADF) enables users to modify data prior to sending to host computer

Eliminates costly modifications to the host software

Universal cables for sharing

Shares cabling with other Symbol scanners for easy replacement and/or upgrades

Bright LED and beeper with adjustable volume

Multiple modes of confirmation ensure positive user feedback

Flash memory

Facilitates updates/customization of product in the field

Hands-free Intellistan™

Enables presentation scanning and easy switching between hands-free and handheld modes

Ergonomic design

Reduces user fatigue with sleek, balanced form for maximum user comfort and productivity

LS2208 Physical Characteristics:

Dimensions:

6 in. H x 2.5 in. W x 3.34 in. D 15.2 cm H x 6.3 cm W x 8.4 cm

Weight:

5.15 oz./146 gm

Voltage:

5 volts +/- 10%

Current:

130 mA typical, 175 mA max

Stand-by Current (USB suspend current)

<500µA

Power Sources:

Host power or external power supply

Color:

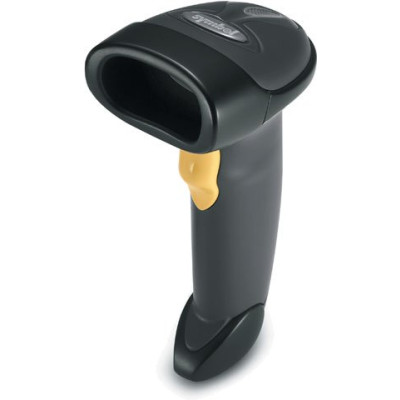

Cash Register White or Twilight Black

LS2208 Performance Characteristics:

Scanner Type:

Bi-directional

Light Source:

650 nm visible laser diode

Scan Rate:

100 scans per second typical

Nominal Working Distance:

From contact to 17 in./43 cm on 100% U.P.C./EAN symbols

Print Contrast:

20% minimum reflective difference

Roll (Tilt): ¹

1 +/- 30 degrees

Pitch: ²

2 +/- 65 degrees

Skew (Yaw): ³

3 +/- 60 degrees

Decode Capability:

UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, Chinese 2 of 5

Interfaces Supported:

RS232, Keyboard Wedge, Wand, IBM 468X/9X, USB, Synapse and Undecoded

LS2208 User Environment

Operating Temperature:

32° to 122° F/0° to 50° C

Storage Temperature:

-40° to 158° F/-40° to 70° C

Humidity:

5% to 95% relative humidity, noncondensing

Drop Specifications:

Unit functions normally after repeated 5 ft./1.5 m drops to concrete

Ambient Light Immunity:

Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight

Electrostatic Discharge:

Conforms to 15 kV air discharge and 8 kV of contact discharge

Accessories

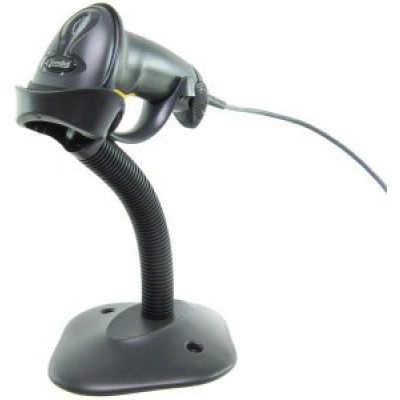

Hands-Free Intellistand™

20-61019-01 or 20-61019-02

LS2208 Regulatory:

Electrical Safety:

Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950

EMI/RFI:

FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori.

Laser Safety:

CDRH Class II, IEC Class 2

Warranty

The LS2208 is warranted against defects in workmanship and materials for a period of 5 years (60 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.
