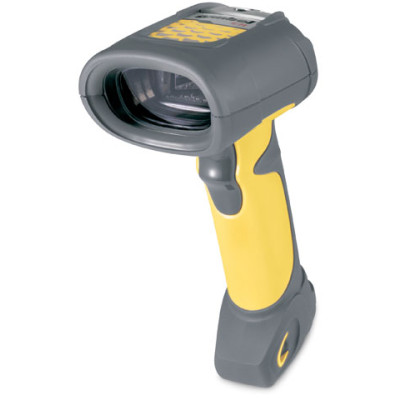

Photo of Symbol LS 3408ER, LS 3408 Series
Symbol logo

Symbol LS 3408ER, LS 3408 Series Scanner

The LS 3408ER, LS 3408 Series can read bar codes from as far away as 45 feet (14.6 meters) and as close as 5 inches (13 cm) to give you the kind of versatility that's necessary for today's industrial applications. The rugged housing, sealed to IP65 standards, withstands repeated drops of up to 6.5 feet (2 meters) to concrete, ensuring limited downtime. A variety of interface options makes connecting to existing systems fast and easy.
Questions?
1-888-875-7170
We respond to every email

Scanner Capability

Connectivity

Scanner Type

Form Factor

Color

Scan Pattern

Included Cables ?

Ruggedness

LS 3408ER, LS 3408 Series Options
Part # DescriptionAvailabilityPriceOrder
LS3408-ER20005R LS 3408 ER, SCANNER ONLY, 1D Laser, Extended Range. Cables and accessories must be purchased separately. See accessories. Ships Free Today $547.20
LS3408-ER20005 LS 3408 ER, SCANNER ONLY, 1D Laser, Extended Range. Cables and accessories must be purchased separately. See accessories. See Replacement Call for Details
LS3408-ER20005R-R LS3408-ER, REFURBISHED/USED/REBUILT SCANNER ONLY, 1D Laser, Extended Range. Cables and accessories must be purchased separately. See accessories. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 3-5 Days
$293.43
Retail $760
Save 61%
LS3408-ER20005R-REFURB LS3408, REFURBISHED/USED/REBUILT SCANNER ONLY, 1D Laser, Extended Range. Cables and accessories must be purchased separately. See accessories, Expect 1+ week lead time. Limited supplies available. Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
CBA-U01-S07ZAR Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.36
Retail $27
23844-00-00R US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.69
CBA-R37-C09ZAR Cable, - RS-232: DB-9 Female CON. 9 ft. (2.8m) Coiled, POWER PIN Ships Free Today $59.16
Retail $78
Save 24%
CBA-R01-S07PAR Cable, RS-232 Cable (7 ft. Straight, Standard DB-9F TxD-2). Requires Power supply (Part# PWRS-14000-253R). Ships Free Today $24.22
Retail $25
11-66553-06R Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray. Ships Free Today $28.20
Retail $32
Save 11%
CBA-U03-S07ZAR Cable, USB, Power Plus connector, 7 ft, Straight Call to purchase. Ships Free Today $30.48
Retail $36
Save 15%
CBA-U09-C15ZAR Cable, 15', Coiled, standard USB cable, Series A. Ships Free Today $61.19
Retail $90
Save 32%
CBA-U10-S15ZAR Cable, USB Series A connector, 15 ft, Straight Ships Free Today $36.41
Retail $46
Save 20%
CBA-R02-C09PAR Cable, Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R). Ships Free Today $28.20
Retail $32
Save 11%
CBA-S04-C16ZAR Cable, Synapse Adapter Cable, 16 ft, Coiled Ships Free Today $46.97
Retail $65
Save 27%
CBA-R03-C12PAR Cable, RS-232, 12 feet, Standard DB-9F, TxD on 2, Coiled Ships Free Today $38.71
Retail $50
Save 22%
CBA-K01-S07PAR Cable, 7 ft. straight PS/2 Keyboard wedge cable. Ships Free Today $20.47
CBA-U08-C15ZAR Cable, PoweredUSB connector, 15 ft, Coiled Call to purchase. Ships Free Today $59.89
Retail $87.70
Save 31%
CBA-R06-C20PAR Cable, Universal Style 3, RS-232, 20 ft, Coiled, Gray Ships Free Today $57.21
Retail $83
Save 31%
25-71918-01R Cable, Assembly, 9 ft, Extended, Coiled. Connects LS34XX to the VC5090. Non-standard USB, call for more information. Ships Free Today $66.88
Retail $100
Save 33%
50-15400-031 Tool Balancer: Pulley 10' Cable Ships Free Today $97.23
Retail $143
Save 32%
CBA-U15-S15ZAR Cable, 15' PoweredUSB cable, Straight, Call to purchase. Ships Free Today $38.44
Retail $50
Save 23%
CBA-M01-S07ZAR Cable, (7 feet, Straight, Ibm 468x/9x-Port 9b) Ships Free Today $44.45
Retail $60
Save 25%
CBA-R32-S07PAR Cable, 7 feet, Straight, RS-232, TRU TTL DB-9F Ships Free Today $39.16
Retail $50.80
Save 22%
CBA-U06-S09EAR Cable, USB EAS, Series A Connection, 9 ft, Straight Ships Free Today $44.13
Retail $60
Save 26%
CBA-T13-C09ZAR Cable, (9 feet, Coiled, RS-232) for the VRC 7900/8900. Ships Free Today $57.21
Retail $83
Save 31%
CBA-S01-S07ZAR Synapse Adapter Cable, 7 ft. From scanner to synapse. (Must be used in conjunction with Synapse SmartCable. Please call for details.) RoHS. Ships Free Today $23.08
20-54090-07R Twlight black stand assembly for LS34xx Ships Free Today $49.25
Retail $69
Save 28%
CBA-K08-C20PAR Cable, (20 feet, Keyboard wedge, PS/2, PW). Ships Free Today $57.65
Retail $83
Save 30%
CBA-K06-C12PAR Cable, 12 feet, Keyboard wedge, PS/2, Power Port and Coiled Ships Free Today $44.13
Retail $60
Save 26%
CBA-K05-S15PAR Cable, Keyboard wedge, PS/2, 15 ft, Straight Ships Free Today $38.71
Retail $50
Save 22%
21-52612-01R Rugged scanner holder (can be mounted on forklift) Ships Free Today $82.76
Retail $125
Save 33%
TM-B3408 Symbol/Motorola 3408 scanner head cover with d ring
Ships Free in 3-5 Days
$24.70
PWR-WUA5V4W0US Power supply, AC INPUT: 100-240V, 0.2A DC OUTPUT: 5.2V, 1.1A. Includes line cord. Ships Free Today $28.20
Retail $32
Save 11%
CBA-M04-S07ZAR Cable, 7 feet, Straight, IBM 468X/9X-Port 5B Ships Free Today $33.61
Retail $41.50
Save 19%
CBA-M02-C09ZAR Cable, 9 feet, Coiled, IBM 468X/9X-Port 9B
Ships Free in 3-5 Days
$54.60
Retail $78.40
Save 30%
25-71917-03R RS-232 coiled cable, 9'. For use with VC5000/LS3408. Ships Free Today $106.19
Retail $140
Save 24%
CBA-D02-C09ZAR Cable, Standard Undecoded, 9 ft, Coiled Ships Free Today Call for Details
CBA-K02-C09PAR Cable, Keyboard wedge, PS/2, Power Port, 9 ft, Coiled Ships Free Today Call for Details

Symbol LS 3408ER, LS 3408 Series Details

Features

Benefits

Flexible working range: 4 in. (10 cm) to 45 ft. (14.6 m)

Improves user productivity

Ergonomic, rugged industrial design withstands multiple 6.5-ft. drops (2 m) to concrete; 2,500 3-ft. (1 m) tumbles (5,000 hits)

Ensures maximum reliability with less down time due to accidental drops

IP65 sealing rating (electronic enclosure)

Protects against water and dust to ensure reliable performance in rough conditions

Bright 650nm laser aiming dot

Delivers clearly visible line for more accurate scanning

Dual-scan angle switches from standard to wide under software control

Offers fast, accurate bar code reading on menus and pick lists

Multiple on-board interfaces

Ensures flexible connectivity, allowing for host "future proofing"

Advanced data formatting (ADF)

Eliminates costly modifications to the host software

Flash memory

Facilitates updates/customization of product in the field

Universal cable set

Allows for easy replacement and/or upgrades

Supports Reduced Space Symbology (RSS?) investment

Compatible with emerging symbology to leverage your hardware

LS 3408ER, LS 3408 Series Specification Highlights

Physical Characteristics

Dimensions:

7.34 in. H x 4.82 in. W x 2.93 in. D
18.65 cm H x 12.25 cm W x 7.43 cm

Weight (without cable):

12.56 oz./356 gm

Power Requirements:

4.5 ? 14VDC

Stand-by Current:

50mA

Power Sources:

Depending on host:
  ?Host power
  ?External power supply

Color:

Twilight Black/Yellow

Performance Characteristics

Scanner Type:

Retrocollective

Light Source:

650 nm visible laser diode

Scan Repetition:

36 scans per second typical

Minimum Element Width:

7 mil/0.191 mm

Nominal Working Distance:

See Decode Zone

Print Contrast:

25% minimum reflective difference

Roll (Tilt): 1

+/- 10 degrees from normal

Pitch: 2

+/- 65 degrees from normal

Skew (Yaw): 3

+/- 60 degrees from normal

Decode Capability:

UPC.EAN, UPC.EAN with Supplementals, UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants

Interfaces Supported:

RS232, Keyboard Wedge, Wand Emulation, Scanner  Emulation, IBM 468X/469X, USB and Synapse

User Environment

Operating Temperature:

-22° to 122° F/-30° to 50° C

Storage Temperature:

-40° to 158° F/-40° to 70° C

Humidity:

5% to 95% relative humidity, noncondensing

Sealing:

Sealed to IP65 specifications

Drop Specifications:

Unit functions normally after repeated 6.5 ft./2 m drops to concrete

Ambient Light Immunity:

Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight:
Indoor: 450 ft. candles/4,842 LUX
Outdoor: 4,000 ft. candles/43,040 LUX

Electrostatic Discharge:

Conforms to 20 kV air discharge and 8 kV of contact discharge

Regulatory

Input Transient Protection:

IEC 1000-4-(2,3,4,5,6,11)

EMI/RFI:

FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Japan VCCI/MITI/Dentori

Laser Safety:

IEC825-1 Class 2

Warranty

The LS 3408ER, LS 3408 Series is warranted against defects in workmanship and materials for a period of 3 years (36 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.
