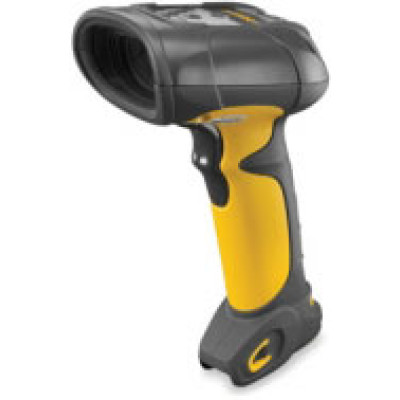

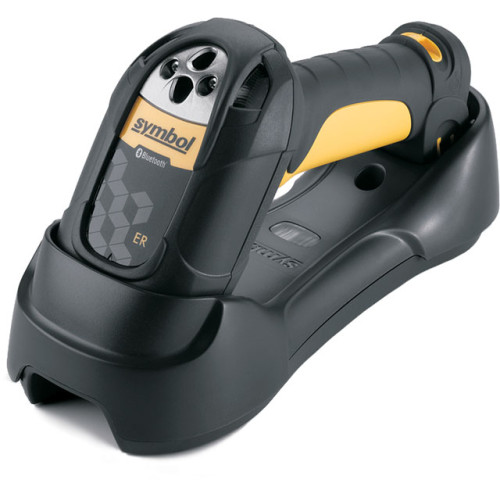

Symbol LS3578-ER Barcode Scanner

Symbol LS3578-ER Barcode Scanner

Scan all one-dimensional (1D) barcodes from practically anywhere with a Bluetooth-enabled cordless rugged scanner. The Symbol LS3578-ER reads labels as far away as 45 feet and as close as four inches--the greatest working range available in a rugged, handheld scanner. Ergonomically designed to be comfortable during long shifts, the scanner gives operators a 150-foot range, which far exceeds the 6-foot corded device range. Designed for use in harsh environments, the Symbol LS3578-ER withstands multiple 6.5-ft. (2-m) drops to concrete and has IP65-rated sealing for protection against the elements. Remote Scanner Management (RSM) enables efficient upgrades from a central location.
Discontinued - Need Assistance
See all options
  • Wide working range allows scanning at .25 in. to 45 ft
  • Reads all 1D linear barcodes
  • Bluetooth-enabled cordless scanning
  • Withstands multiple 6.5 ft. / 2 m drops to concrete
  • IP65 rated
  • Bright LED and beeper with adjustable volume
  • Allows use of up to three scanners with a single cradle
  • Bright 650-nm laser aiming dot
  • Compatibility with GS1 DataBar symbology
  • Advanced data formatting eliminates costly modifications to the host software
  • Batch mode operation
  • Remote scanner management enables you to discover, provision and upgrade devices from a central remote location.

Rugged, cordless scanner with integrated Bluetooth

Capture bar codes over a wide range of distances

The Symbol LS3578-ER rugged, cordless scanner provides the greatest working range of any available rugged scanner, allowing employees to scan items from as close as 4 inches/10 cm to as far away as 45 feet /13.7 m. It also allows employees to quickly switch from reading bar codes on inventory to capturing smaller symbologies on bar code menus and pick lists.

In the yard, warehouse, distribution center, manufacturing plant or retail store, the Symbol LS3578-ER offers superior performance and reliability as well as a user-friendly form factor that helps ensure comfortable use over long shifts. Plus, integrated Bluetooth wireless personal area networking (WPAN) provides reliable and secure wireless data transmission between the scanner and host.

Cordless freedom for improved productivity

By eliminating the cord between the scanner and host, employees can move freely throughout their work environment, increasing productivity and efficiently. You save time and keep supply chain inventory up to date at all times. Plus, having no cord translates into less downtime from cable breakdowns � a common point of failure in handheld devices used in industrial facilities.

Rugged design to maximize uptime

As rugged as it is innovative, the Symbol LS3578-ER is designed for scan-intensive industrial applications in the harshest operating conditions. Industry-leading impact tests ensure reliable performance in spite of the inevitable accidental drops. The device is impervious to dust and water, and its exit window is scratch-resistant and recessed for the highest level of durability. As a result, you avoid unnecessary equipment downtime or expensive equipment replacement costs.

Low total cost of ownership (TCO)

In addition to enhancing productivity, the Symbol LS3578-ER offers a low TCO. The industrial-strength construction maximizes the scanner's working life, and multiple on-board interfaces provide true plug-and-play simplicity with your host system today and tomorrow. Support for Remote Scanner Management (RSM) enables you to discover, provision and upgrade devices from a central remote location, dramatically reducing management time and costs.

And since even the most rugged devices require a support plan, a full complement of Enterprise Mobility Services are available to help you protect your investment and maintain peak performance.

For more information, contact us at +1.800.722.6234 or +1.631.738.2400.

Features Benefits
Wide working range: 4 in. (10 cm) to 45 ft. (13.7 m) Allows workers to scan items at varying distances without having to move, reducing fatigue and speeding task completion
Integrated Bluetooth Class 2 v1.2 (Serial Port and HID Profiles with authentication and security) Cordless scanning with secure wireless data transmission
Cordless scanning Enables real-time bar code data collection unrestricted by a cable, reducing repairs made necessary by cable failure
Rugged design withstands multiple 6.5-ft. (2-m) drops to concrete Ensures maximum reliability with less downtime resulting from accidental drops
IP65-rated seal (electronic enclosure) Protects against water and dust for reliable performance in the harshest environments
Bright LED and beeper with adjustable volume Helps ensure that decode feedback is clearly visible and audible to users, even in noisy environments
Multi-point communication Use up to three scanners with a single cradle, reducing capital expenditures and maintenance costs
Bright 650 nm laser aiming dot Delivers clearly visible line for more accurate scanning
Advanced data formatting Eliminates costly modifications to the host software
Batch mode operation Increases application design flexibility to better meet your specific needs
Remote scanner management ready Enables you to discover, provision and upgrade devices from a central remote location, dramatically reducing management time and costs

Symbol LS3578-ER Specifications

Physical Characteristics
Dimensions: 7.34 in. L x 4.82 in. W x 2.93 in. D
(18.65 cm H x 12.25 cm W x 7.43 cm D)
Weight (including LiON battery): 14.8 oz. (420 gm)
Battery: 2200 mAh Lithium Ion Battery
Battery charge time: Fully charged (100%) in 3 hours
Color: Twilight Black and Yellow
Performance Characteristics
Scanner type: Retrocollective
Light source: 650 nm visible laser diode
Scan repetition: 36 scans per second typical
Minimum element width: 7.5 mil (0.191 mm)
Nominal working distance: See decode zone
Print contrast: 25% minimum reflective difference
Roll (Tilt)1: +/- 10 degrees from normal
Pitch2: +/- 65 degrees from normal
Skew (Yaw)3: +/- 60 degrees from normal
Decode capability: UPC.EAN, UPC.EAN with Supplemental, UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
Interfaces supported: RS232, Keyboard Wedge, Wand Emulation, Scanner Emulation, IBM 468X/469X, USB and Synapse
User Environment
Operating temperature: -4� to 122�F (-20� to 50�C)
Storage temperature: -40� to 140�F (-40� to 60�C)
Humidity: 5% to 95% relative humidity, noncondensing
Sealing: Sealed to IP65 specifications
Drop specifications: Unit functions normally after repeated 6.5-ft. (2-m) drops to concrete
# of Cradle Insertions: 250,000+ insertions
Ambient light immunity: Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight.
Indoor: 450 foot candles/4,842 LUX
Outdoor: 4,000 foot candles/43,040 LUX
Electrostatic discharge: Conforms to 15 kV air discharge and 8 kV of contact discharge
Cradles STB 3508 and FLB 3508 STB 3578 and FLB 3578
Power requirements: 4.75 � 14 VDC 4.75 � 14 VDC
Typical current draw:
Not charging 10 mA 105 mA @5V
45 mA @9V
Fast rate charge 915 mA @5V
660 mA @9V
915 mA @5V
660 mA @9V
Slow rate charge 480 mA @5V
345 mA @9V
480 mA @5V
345 mA @9V
Radio specification
Radio: Bluetooth, Class 2, Version 1.2, Serial port and HID Profiles 2.402 to 2.480 GHz adaptive frequency hopping (co-existence with 802.11 wireless networks) Data rate: 720 kbps
Regulatory
Input transient protection: IEC 1000-4-(2,3,4,5,6,11)
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Japan VCCI/MITI/Dentori
Laser safety: IEC825-1 Class 2
Warranty
The Symbol LS3578-ER is warranted against defects in workmanship and materials for a period of 3 years (36 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.
Extended Details
Refine Your Options
Shop By
  1. Motorola LS3578-ER Barcode Scanner
    Part #: LS3578-ER20005WR | SKU: MOT27731

    SCANNER ONLY, 1D Laser, Cordless, Extended Range. Cables and accessories must be purchased separately. For the full kit purchase (Part# LS3578-ERBU0100UR).
  2. Symbol LS3578-ER Barcode Scanner
    Part #: LS3578-ERBU0100IR | SKU: SYM67701

    LS3578-ER, USB International Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, USB cable, Power supply. Requires country-specific line cord. See accessories.
  3. Motorola LS3578-ER Barcode Scanner
    Part #: LS3578-ERBU0100UR | SKU: MOT51968

    USB Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, USB cable, Power Supply, and Line Cord.
  4. Symbol LS3578-ER Barcode Scanner
    Part #: LS3578-ERBR0100IR | SKU: SYM80615

    LS3578-ER, RS-232 International Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, RS-232 cable, Power supply. Requires country-specific line cord. See accessories.
  5. Motorola LS3578-ER Barcode Scanner
    Part #: LS3578-ERBR0100UR | SKU: MOT51967

    RS-232 Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, RS-232 cable, Power Supply, and Line Cord.
  6. Symbol LS3578-ER Barcode Scanner
    Part #: LS3578-ER20175WR | SKU: SYM67700

    LS3578-ER, SCANNER ONLY, 1D Laser, Cordless, Extended Range. This part is custom configured for CL2/Macy's, please call for details.
  7. Symbol LS3578-ER Barcode Scanner
    Part #: LS3578-ER20195WR | SKU: SYM90300

    LS3578-ER, SCANNER ONLY, 1D Laser, Cordless, Extended Range. This part is custom configured for CL2/Macy's, please call for details.
